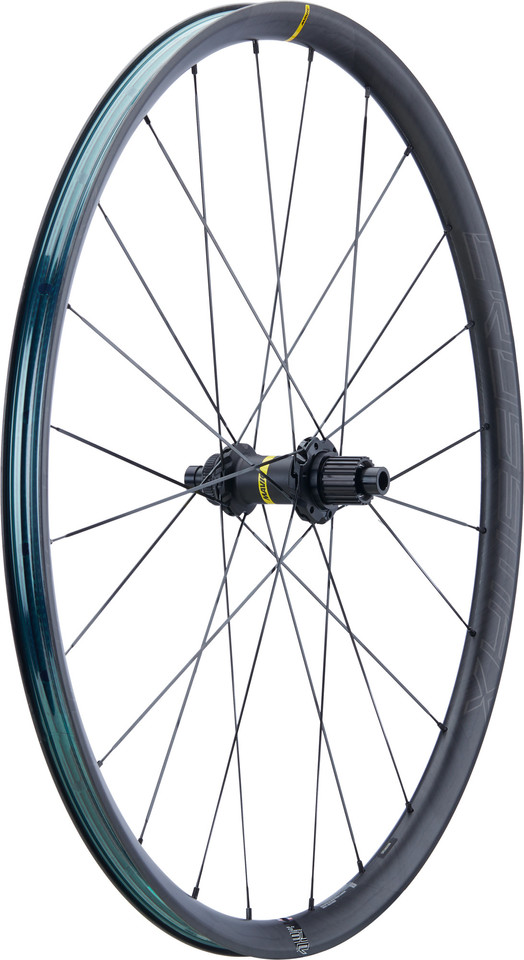

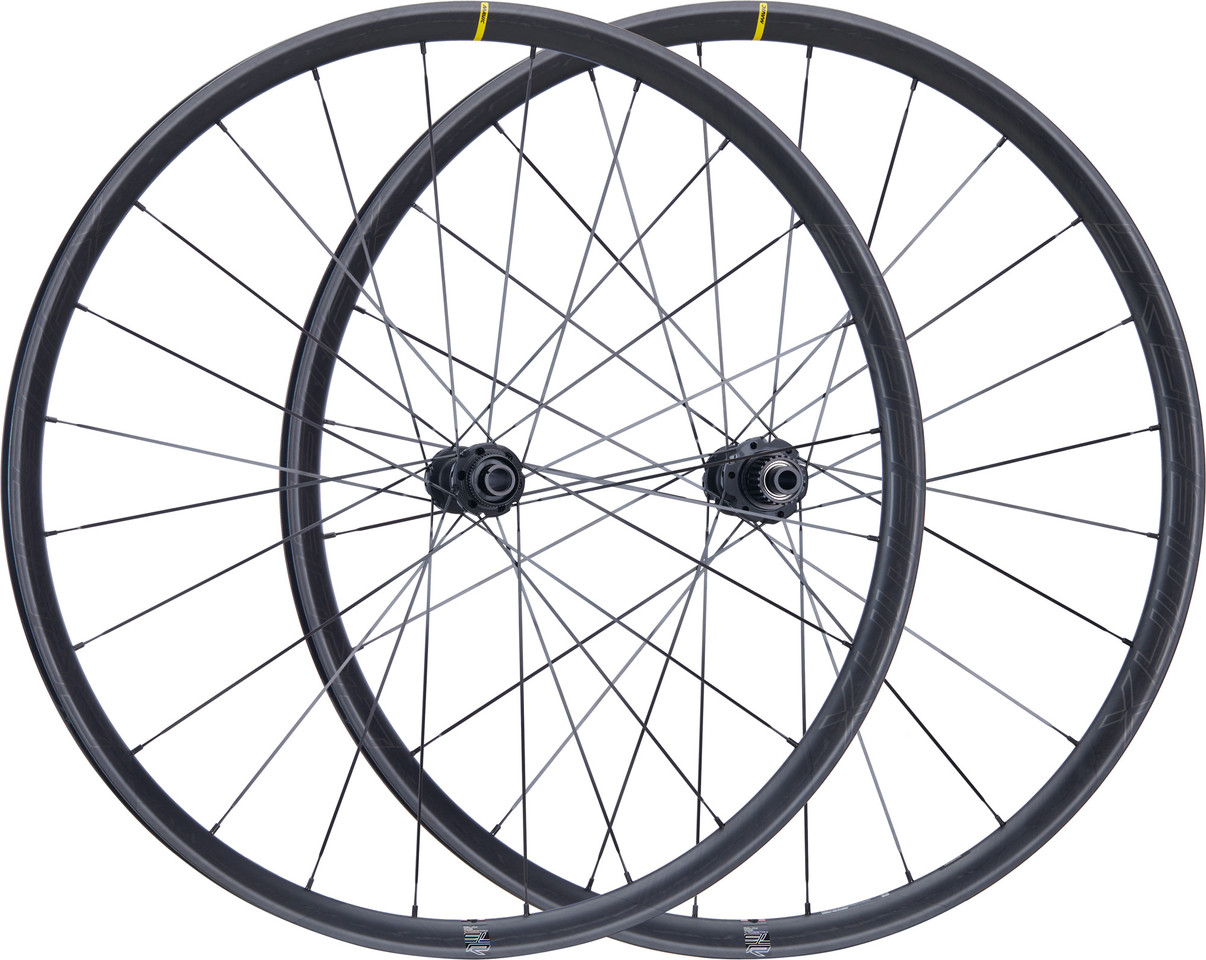

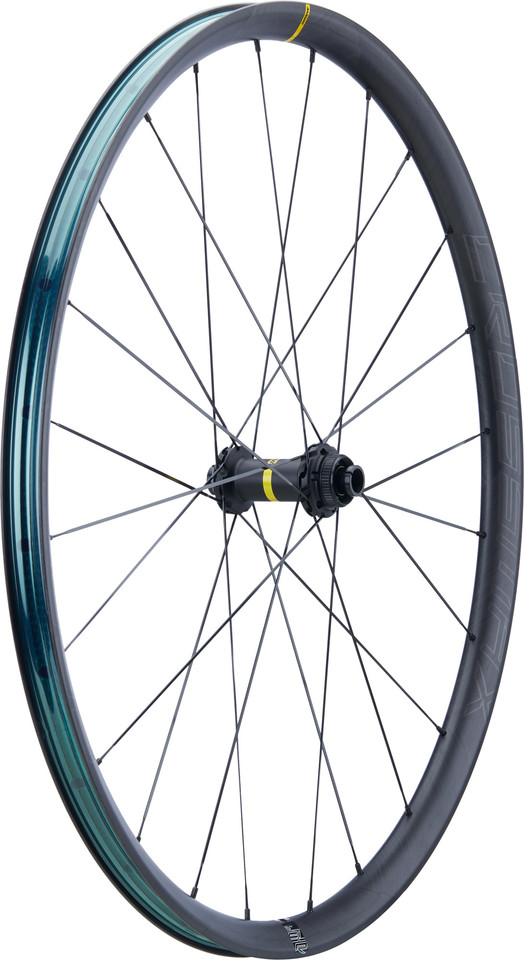

Mavic Crossmax Carbon SL R Center Lock Disc 29" Boost Wheelset

The Mavic Crossmax SL R is a 29" cross-country wheelset for center lock disc brakes based on 25 mm wide carbon rims made of UD² laminate. This gives it a different look and makes it even more durable than the previous model. The wheels are predestined for technical terrain and are characterised by precise handling and fast acceleration. Boost hubs with self-adjusting bearings and double-butted, contactless crossed straight pull spokes are used.

Specifications:

Application:

Cross Country

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc (Boost)

Wheel Standard:

Boost

Tubeless System:

UST Tubeless Ready

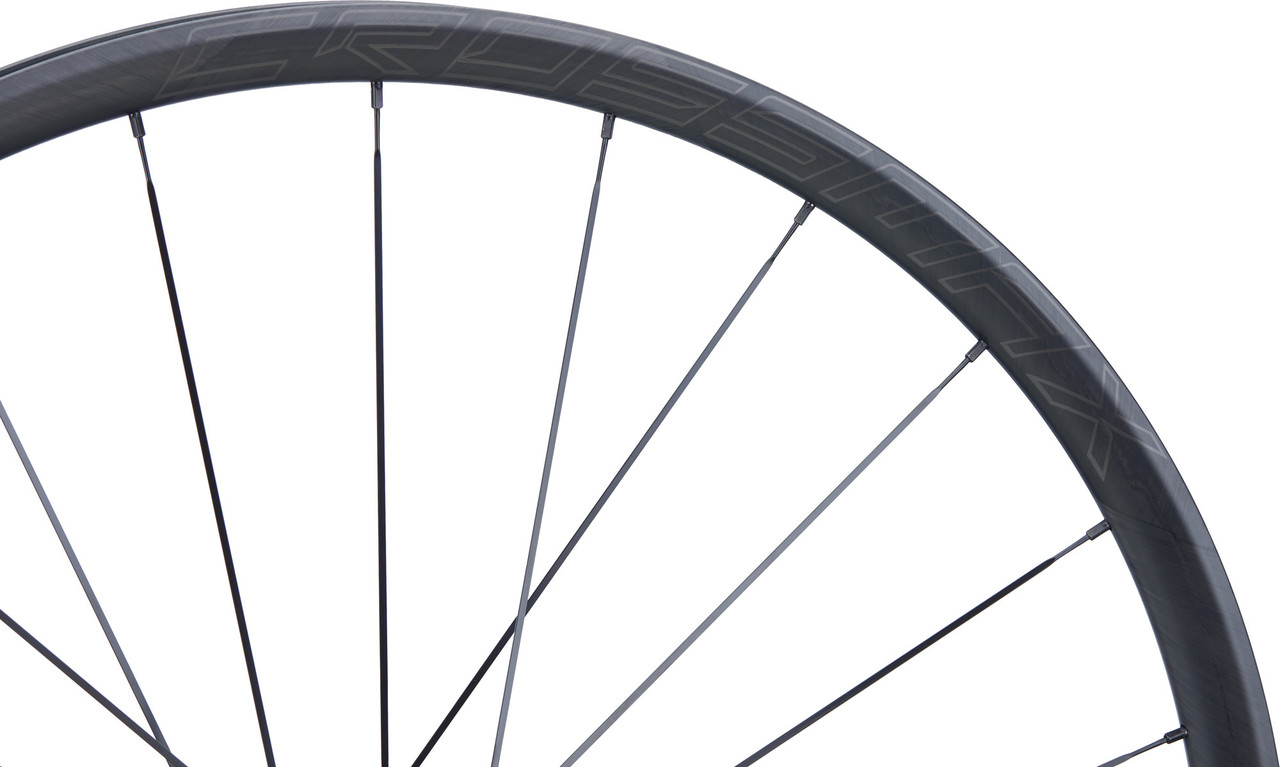

Technical Information - Rim:

Rim Flange:

without hook

Dimensions (ETRTO):

25-622

Inner Width:

25 mm

Outer Width:

30 mm

Depth:

25 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Carbon (UD²)

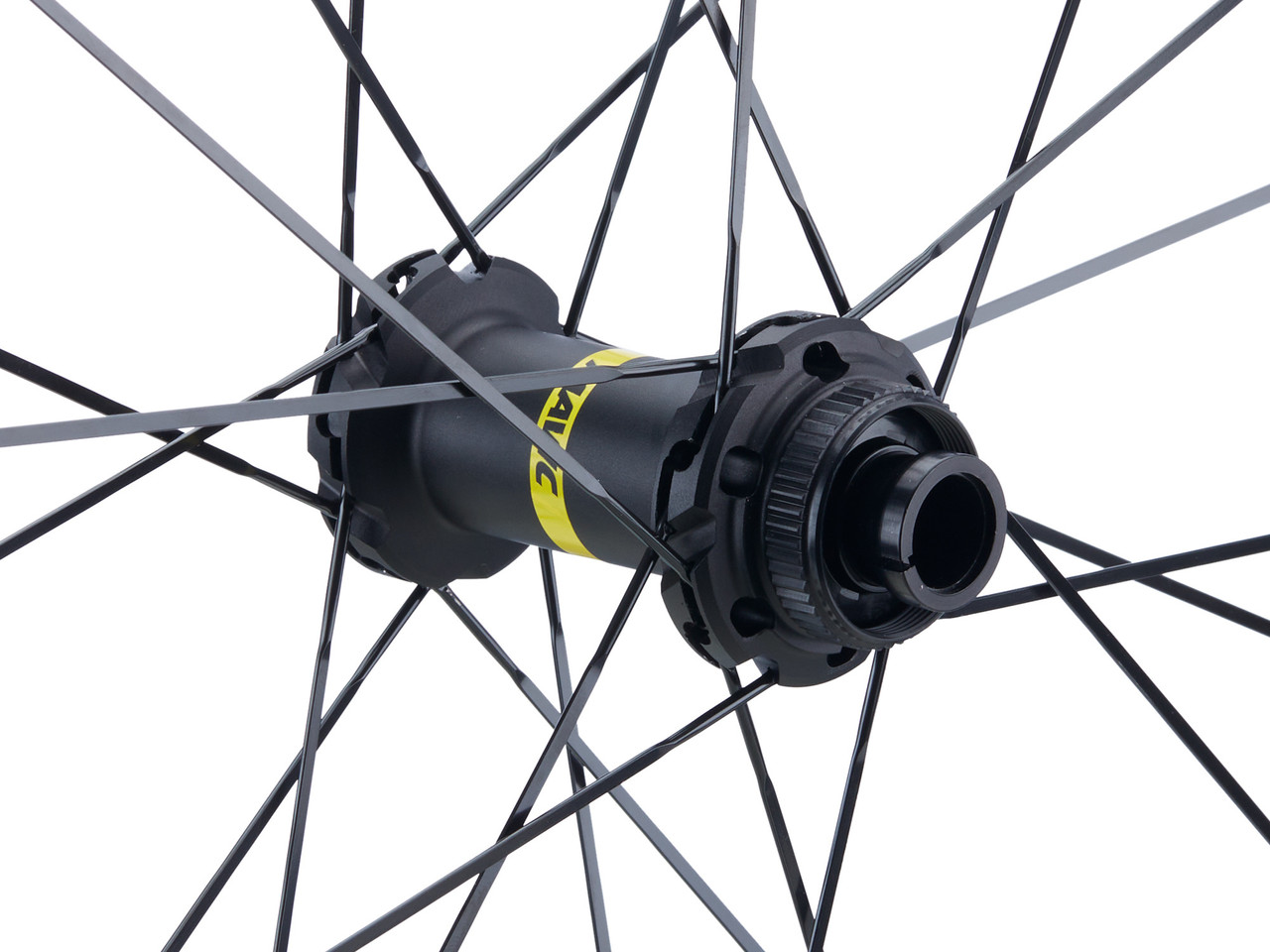

Technical Information - Front Hub:

Type:

Mavic Infinity

Over Locknut Dimension:

15 x 110 mm thru-axle

Bearings:

self-aligning sealed cartridge bearings

Body Material:

Aluminium

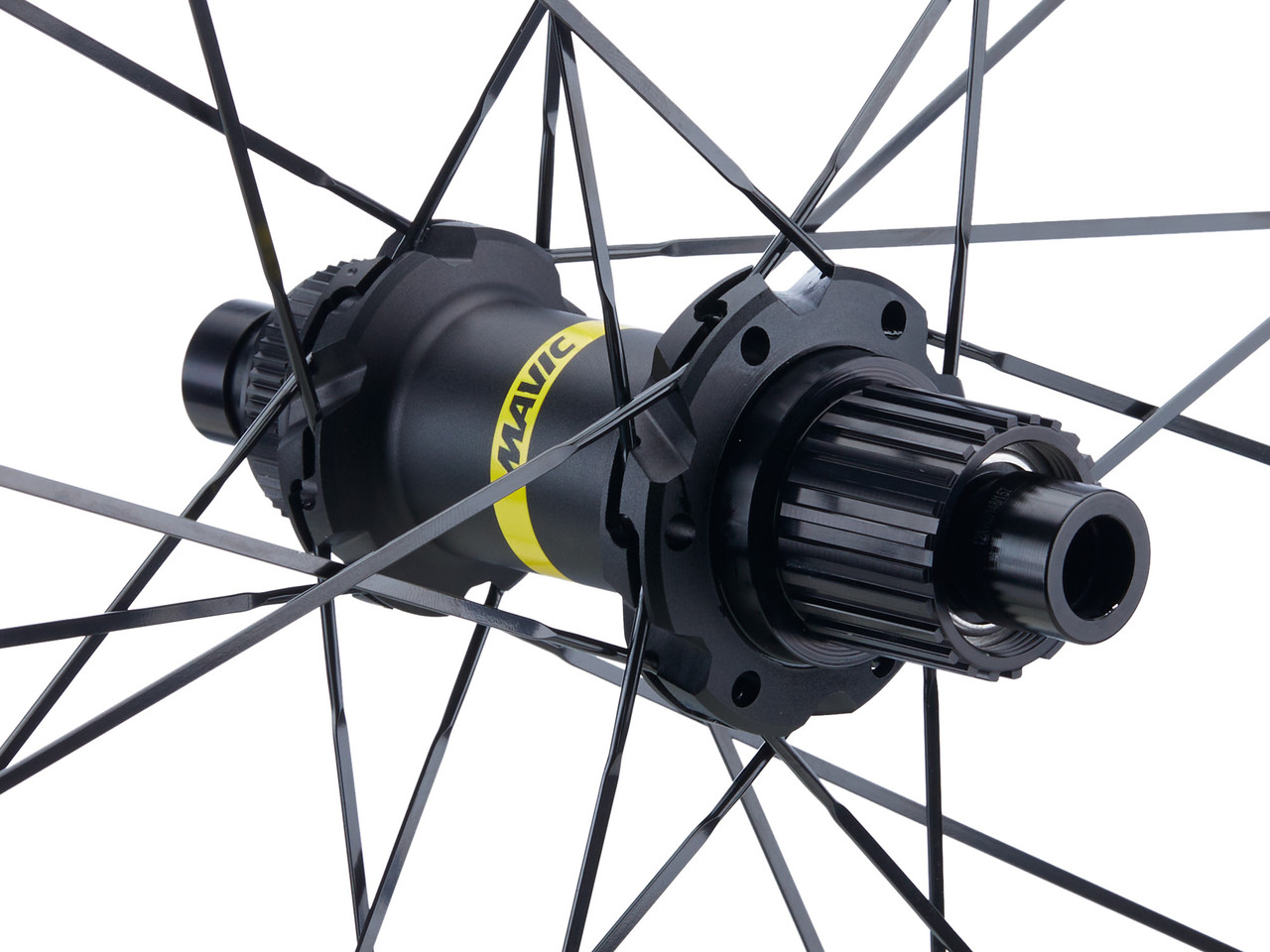

Technical Information - Rear Hub:

Type:

Mavic Infinity

Over Locknut Dimension:

12 x 148 mm thru-axle

Bearings:

self-aligning sealed cartridge bearings

Body Material:

Aluminium

Freehub Body Material:

Aluminium

Freehub Body:

Instant Drive 360

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

Straight pull / Aero / Double butted

Spoke Size:

293 mm

Spoke Material:

steel

Nipple Type:

self-locking

Nipple Material:

Aluminium

Approved For:

Weight Limit:

150 kg total weight* (rider, gear & bike)

Recommended Tyre Width:

1.7 - 2.5"

* Compliance recommended by the manufacturer to extend the life of the wheels

Features:

• top speed, efficiency and control on technically demanding XC courses
• lightweight, hookless full carbon rims with UD² finish
• high lateral stiffness and vertical compliance
• asymmetric rim design, conventional rim bores
• Infinity hub design for optimal spoke lacing with contactless crossings
• Torque Caps optionally available
• ASTM category 3: for off-road use with jumps up to 61 cm in height

Technology:

Infinity Hub Design
Infinity hubs from Mavic allow contactless lacing, which prevents noise development under load. At the same time, this design is lighter, stiffer and easier to maintain. Often you only need one spoke length per wheel set, so that an optimal spare parts supply is given.

QRM Auto
QRM Auto stands for Qualité de Roulements Mavic Auto, and is the latest bearing innovation from Mavic. These cartridge bearings with C3 internal clearance are double sealed. Their bearing clearance is automatically adjusted to guarantee smooth running without any play at all times.

Instant Drive 360
The Instant Drive 360 freehub system is super light and ensures fast power transfer with an engagement angle of only 9° (road) or 15° (MTB). A large, non-contact rubber seal reduces friction.

Models:

29" set (front 15x110 Boost + rear 12x148 Boost) Shimano Micro Spline:

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

P1647115

Conversion Options:

To convert to Shimano MTB, a Shimano freehub body is required. To convert to SRAM XD, a XD freehub body is required.

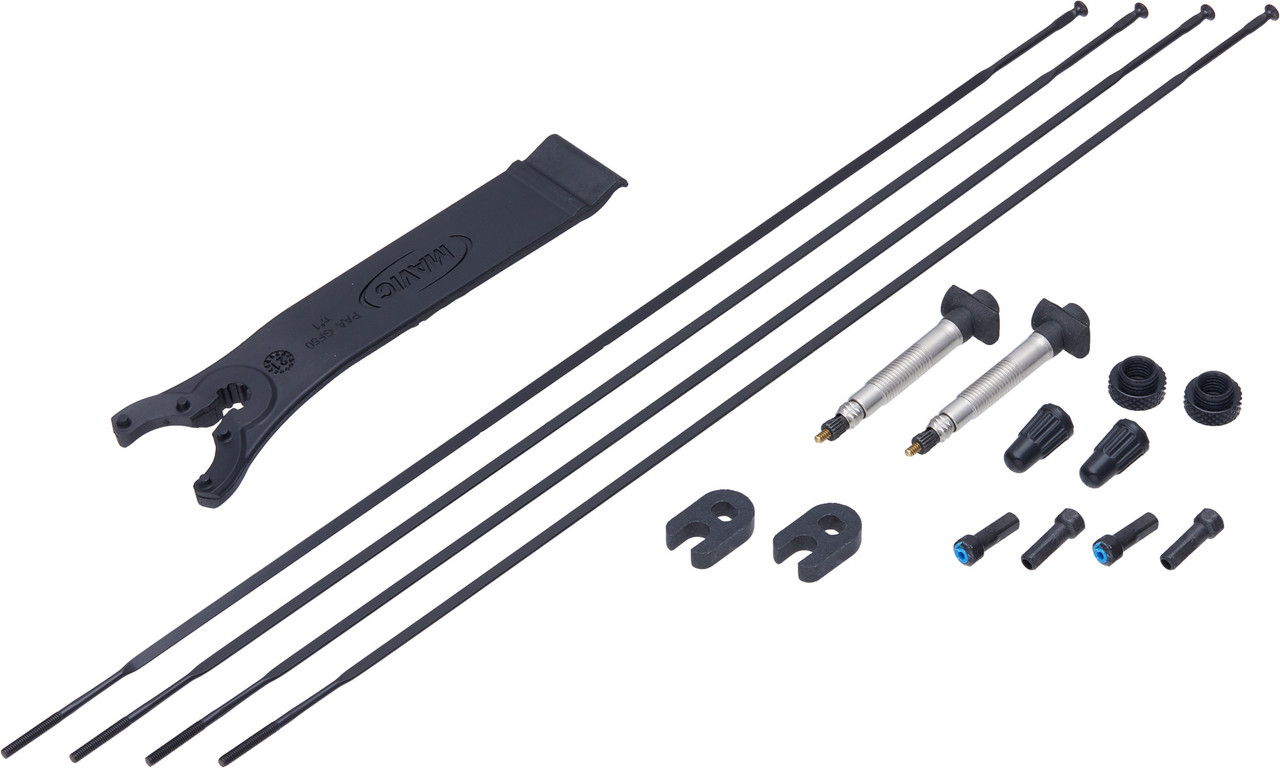

Contents:

• 1 x Mavic Crossmax Carbon SL R Center Lock Disc 29" Boost wheelset (front and rear wheel)
• 2 x UST valve with accessories
• 4 x spare spokes
• 4 x spare nipples
• 1 x tool
• 2 x tubeless rim tape (mounted)
