Mavic Crossride FTS-X Disc 6-bolt 27.5" Wheel

The wheel upgrade par excellence, simple and reliable: the Crossride FTS-X by Mavic

Even unspectacular products deserve optimisation. The design is well proven, but the Crossride FTS-X now has a sleeved rim that is wider and lighter to give the rider more comfort and control. The rear hub uses the proven Mavic FTS-X freehub, resulting in a wheelset with an excellent price/performance ratio. 24 straight spokes each provide stiffness and reliability, typical of Mavic wheels, where all components are designed and tested together to ensure performance and reliability.

Specifications:

Application:

All Mountain

Wheel Size:

27.5" (650B)

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

6-bolt disc

Tubeless System:

none

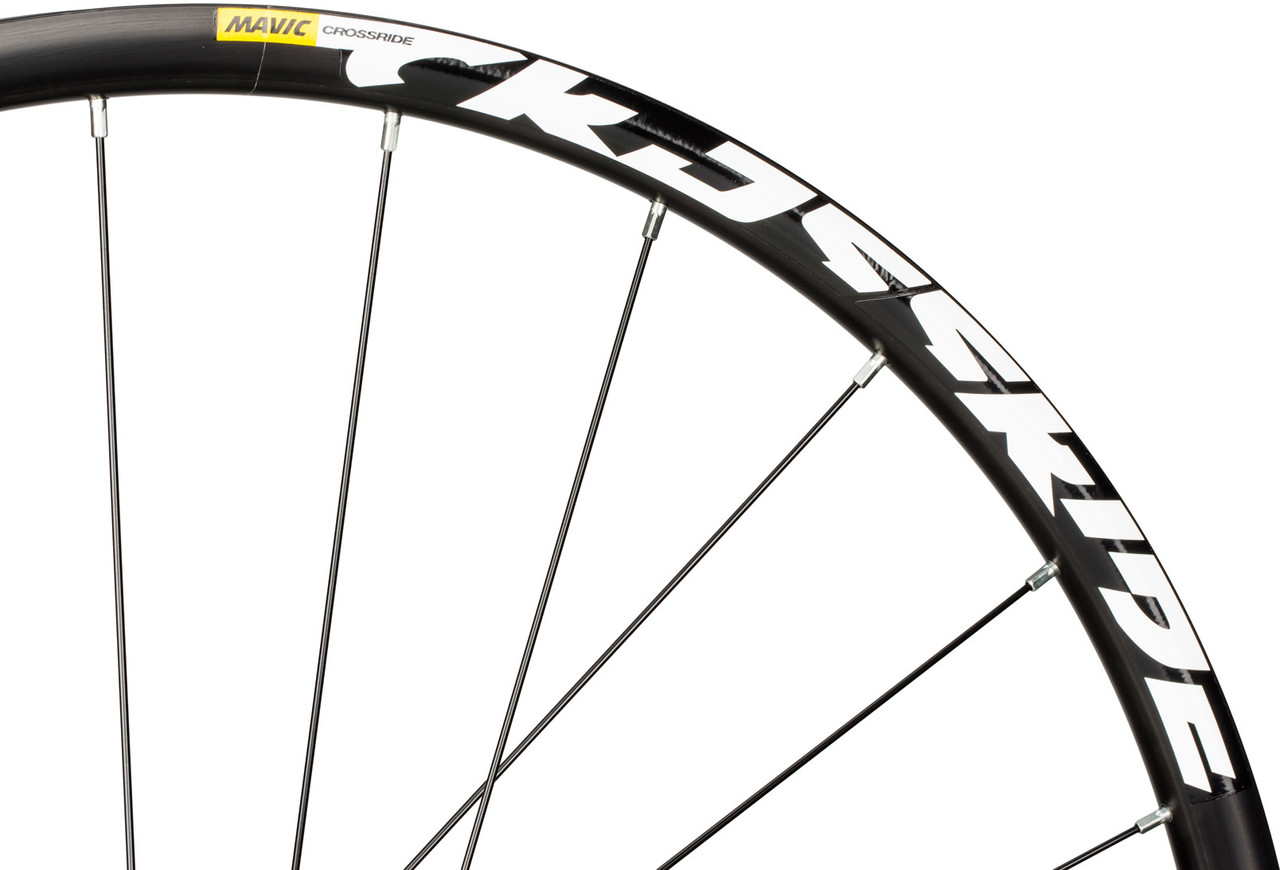

Technical Information - Rim:

Dimensions (ETRTO):

21-584

Inner Width:

21 mm

Outer Width:

26.45 mm

Depth:

20.7 mm

Valve Hole Diameter:

AV (Auto/Schrader) 8.5 mm

Rim Material:

Aluminium

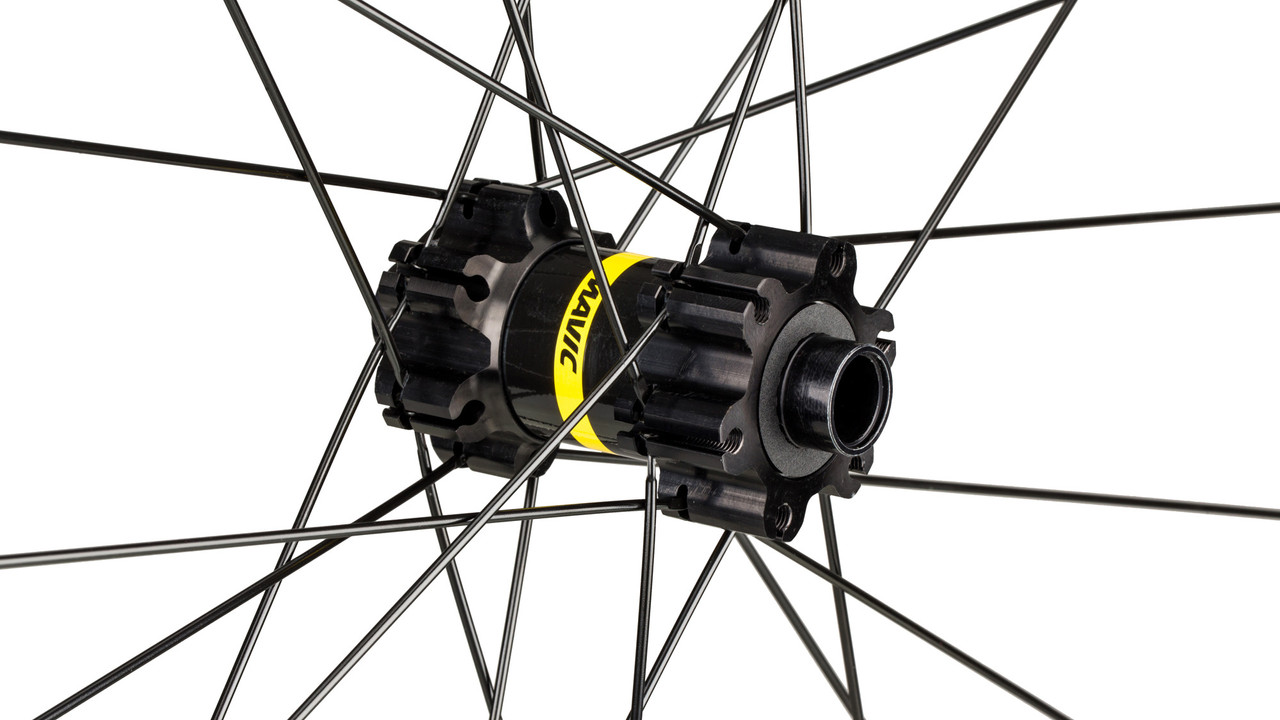

Technical Information - Front Hub:

Over Locknut Dimension:

15 x 100 mm thru-axle, convertible to 9 x 100 mm quick release

Bearings:

cartridge bearings (sealed)

Body Material:

Aluminium

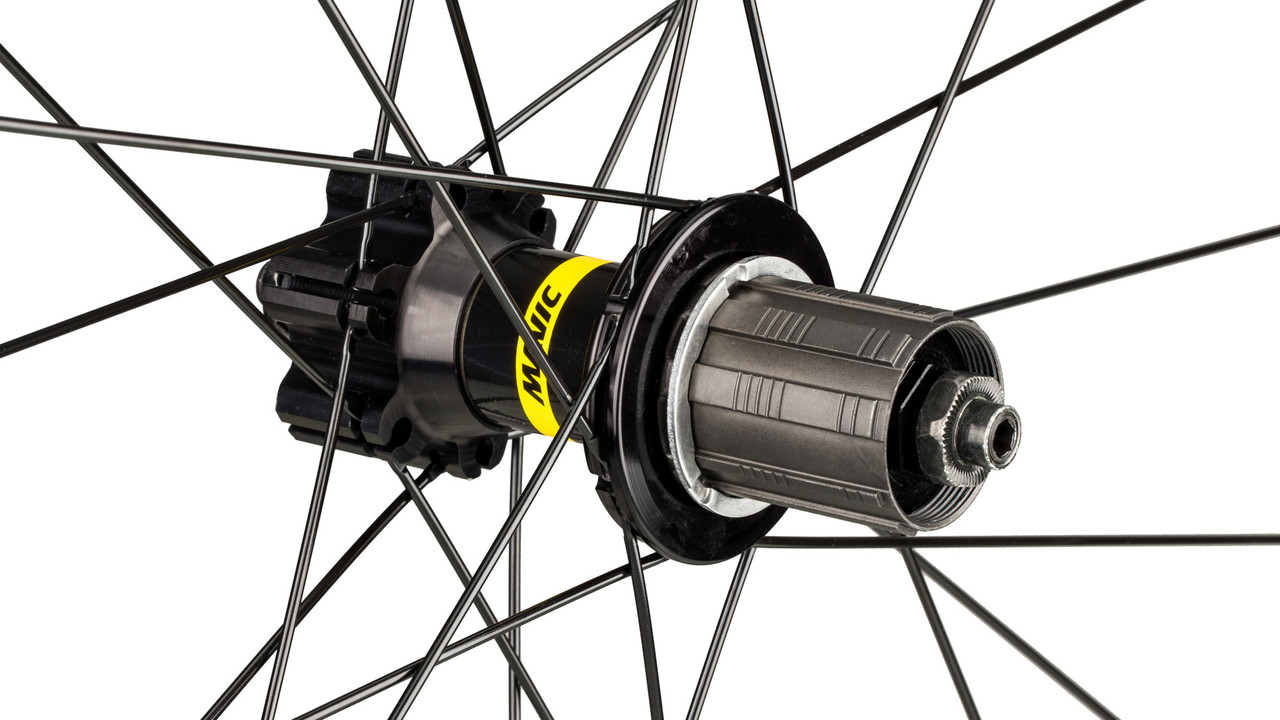

Technical Information - Rear Hub:

Over Locknut Dimension:

10 x 135 mm quick release

Bearings:

cartridge bearings (sealed)

Body Material:

Aluminium

Freehub Body Material:

steel

Freehub Body:

FTS-X (FTS-L with MTB pawls)

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

straight / round

Spoke Size:

279 mm (front), 279 mm/276 mm (rear l/r)

Spoke Material:

steel

Nipple Type:

self-locking

Nipple Material:

steel

Approved For:

Weight Limit:

120 kg total weight* (rider, gear & bike)

Recommended Tyre Width:

1.4" - 2.5"

* recommended for increased durability

Features:

• system wheel with a concept: all components were developed together
• established technologies
• sleeved rim joint (light and stable)
• front axle made of aluminium, rear axle made of steel
• conventional rim drilling
• ASTM category 3: for off-road use with jumps up to 61 cm in height

Technology:

QRM
Qualité de Roulements Mavic. Cartridge bearings of this quality are only available in Mavic hubs. Thanks to double seals (type 2RS or LLU) they are extremely durable. Minimum bearing clearance and extreme dimensional accuracy ensure maximum efficiency.

FTS-X
Force Transfer System X. Further improved freehub system, especially for the toughest MTB applications, when a more robust freehub is required. Reinforced pawls, self-locking kingpin mount, new type of lip seal with half the friction.

Models:

27.5" front 15 mm thru-axle:

Manufacturer Number:

F5060110

27.5" rear:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-speed

Note:

A spacer ring is required for an MTB cassette (incl.).

Manufacturer Number:

R7630110

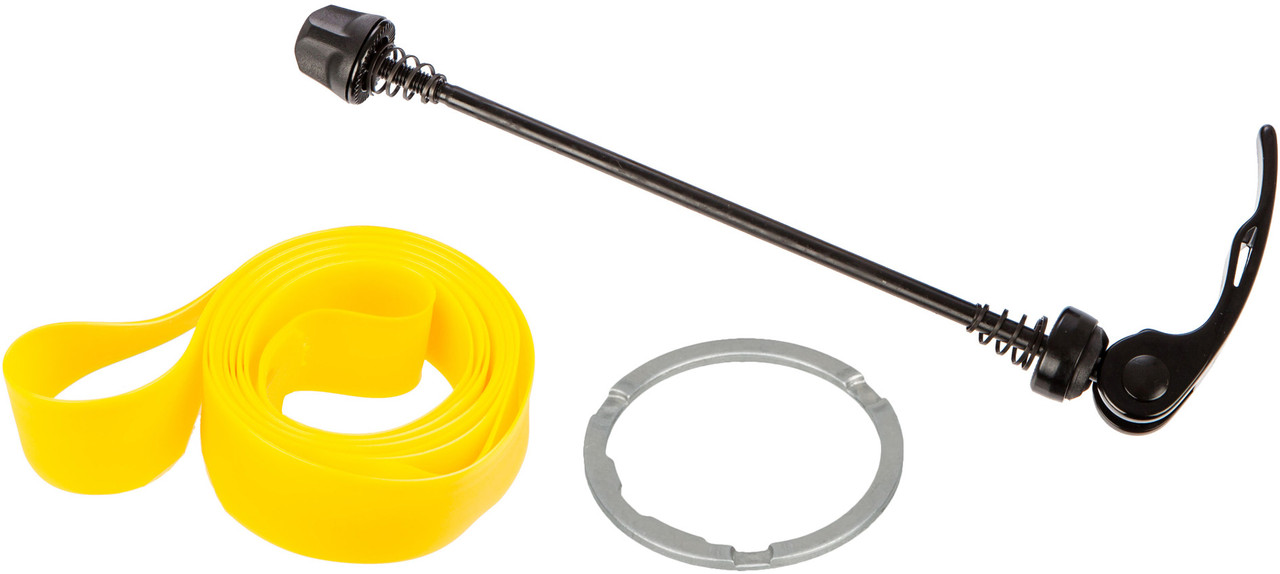

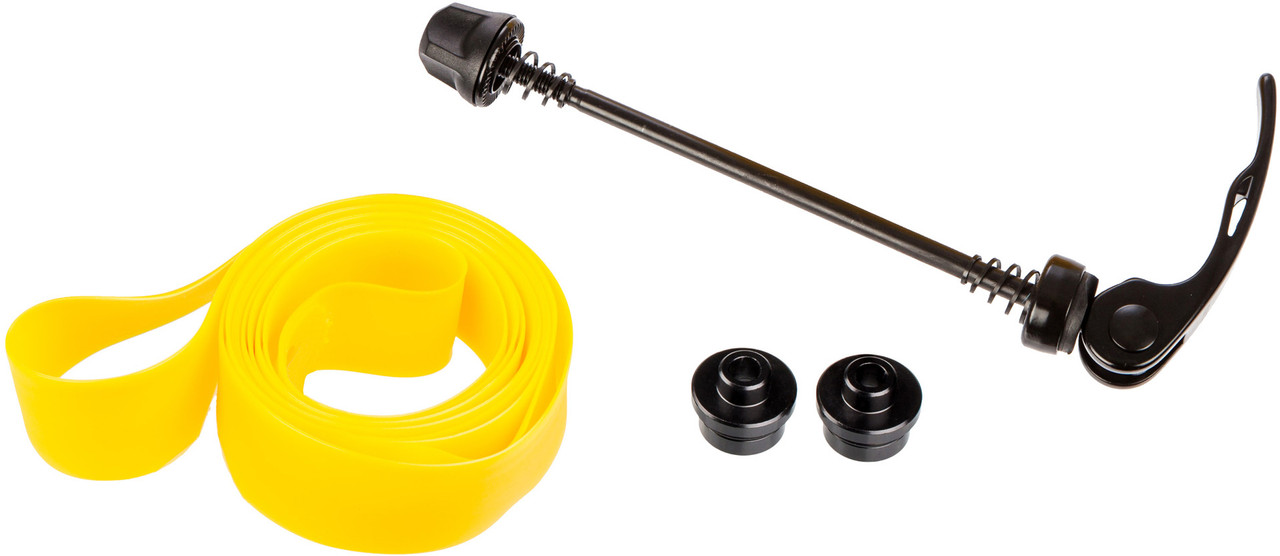

Contents:

• 1 x Mavic Crossride FTS-X wheel (front or rear wheel)
• 1 x Mavic BR101 quick release
• 1 x roll of rim tape
• 2 x 9 mm end caps (front)
• 1 x cassette spacer (rear)
