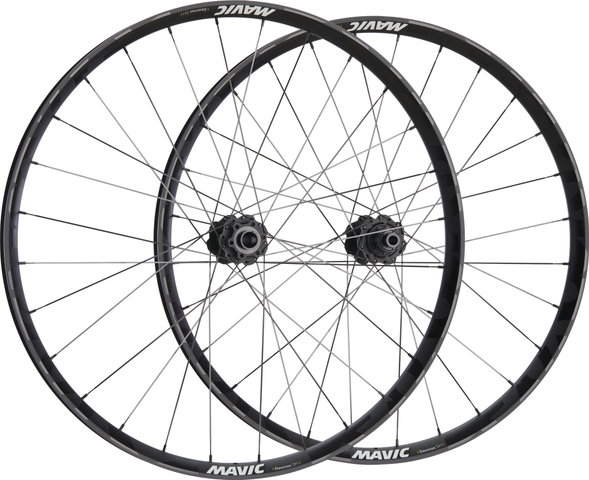

Mavic Deemax DH 6-bolt Disc 29" / 27.5" Wheelset

The Mavic Deemax DH 29" / 27.5" wheelset for demanding downhill racing

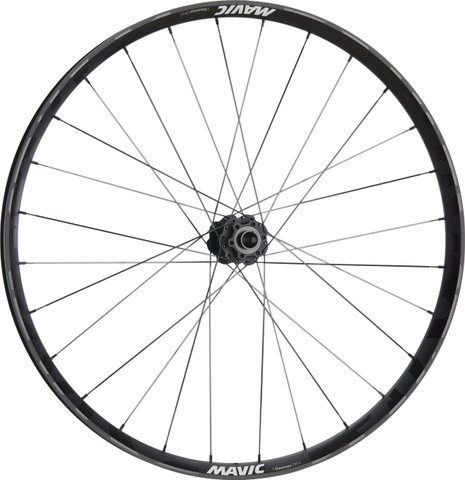

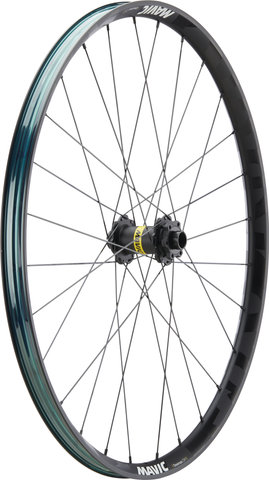

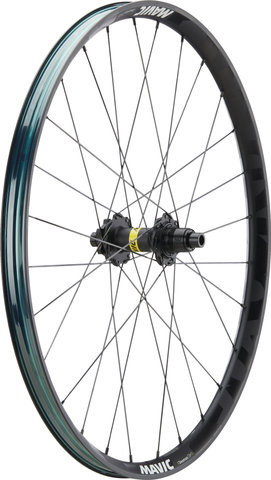

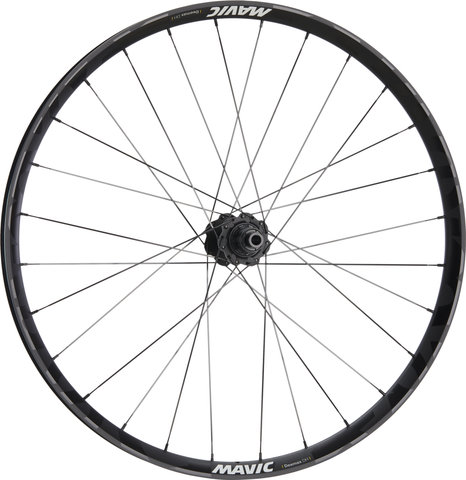

The Deemax DH from Mavic is an indestructible downhill wheelset with Boost width at the front and DH width at the rear, which is suitable for mullet setups. This means that the front wheel is 29 inches, while the rear wheel measures 27.5 inches. Both wheels are based on 30 mm wide aluminium rims with special surface protection that can withstand the heaviest impacts. Self-adjusting 6-bolt hubs with high-quality bearings rotate in the centre. Thanks to the powerful ID360 freehub, you can pedal with high efficiency. The 28 J-Bend spokes on the front and rear wheels can be easily changed and offer an optimum balance of strength and agility. The Deemax DH was even put through its paces in the World Cup.

Specifications:

Application:

Downhill

Wheel Size:

29" (front), 27.5" (650B, rear)

Tyre Type:

clincher tyre

Number of Spokes:

28

Brake Type:

6-bolt disc

Tubeless System:

UST Tubeless

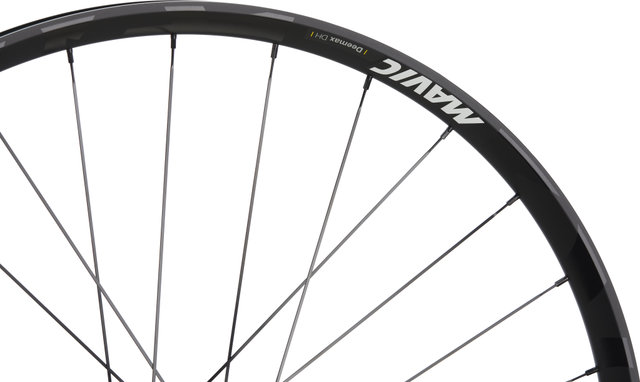

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

30-622 (front), 30-584 (rear)

Inner Width:

30 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium (S6000)

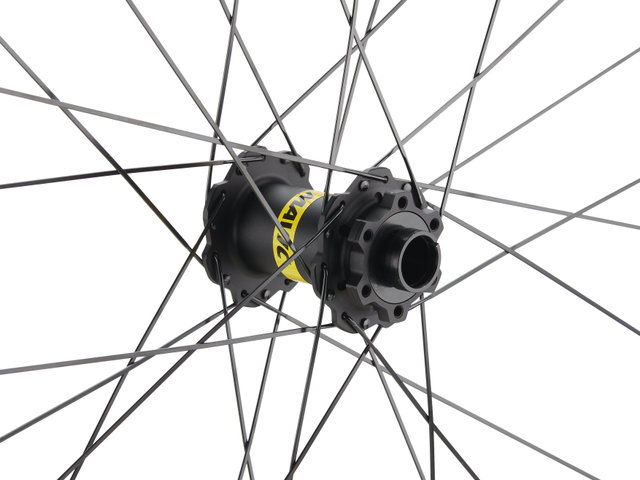

Technical Information - Front Hub:

Over Locknut Dimension:

20 x 110 mm thru-axle

Bearings:

QRM Auto

Body Material:

aluminium

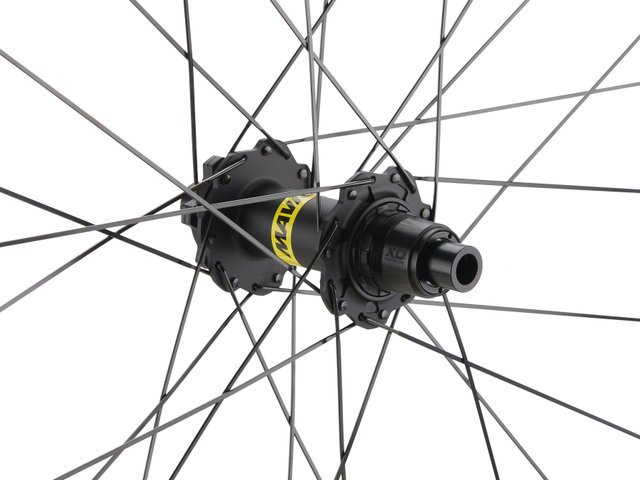

Technical Information - Rear Hub:

Over Locknut Dimension:

12 x 157 mm thru-axle

Bearings:

QRM Auto

Body Material:

aluminium

Freehub Body:

Instant Drive 360

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

J-Bend / flat / double-butted

Spoke Material:

steel

Nipple Type:

ABS

Nipple Material:

steel

Approved For:

Weight Limit:

150 kg total weight* (rider, gear & bike)

Air Pressure (max.):

2.95 bars with 52 mm tyres, 2.85 bars with 64 mm tyres

Recommended Tyre Width:

2.35 - 3.0" (60 - 76 mm)

* recommended for increased durability

Features:

• robust, high-performance downhill wheelset with Boost front wheel and rear wheel with DH width for mullet set-ups (29" front, 27.5" rear)
• aluminium rims with 30 mm jaw width withstand the heaviest impacts
• special rim treatment for more durability and protection against stone impact
• rim profile designed for tyre widths from 2" to 3" , for individual set-up
• easy-to-maintain J-Bend spokes for an optimum balance of strength and dynamics
• ID360 ratchet freehub for maximum efficiency in pedalling passages
• conventional rim holes: rim tape required (included in scope of delivery)
• rim joint welded (SUP)
• asymmetric rim design
• aluminium hub axles
• front can be converted to 15 mm thru-axle (adapter not included)
• ASTM category 5: for extreme terrain and downhill-orientated gravity use
• developed for and tested to the standards of DH World Cup professionals

Technology:

Black Shield Treatment
This innovative surface treatment, first introduced for MTB rims, makes rims twice as resistant to stone impacts and scratches.

SUP
SUP means Soudé Usiné Process and creates a much more stable and smoother rim joint. The rim joint is welded and then milled over to achieve an even braking surface. SUP prevents any brake judder and facilitates spoking and centring of the wheel.

QRM Auto
QRM Auto stands for Qualité de Roulements Mavic Auto, and is the latest bearing innovation from Mavic. These cartridge bearings with C3 internal clearance are double sealed. Their bearing clearance is automatically adjusted to guarantee smooth running without any play at all times.

Instant Drive 360
The Instant Drive 360 freehub system is super light and ensures a fast power connection with an engagement angle of only 9° (road) or 15° (MTB). A large, non-contact rubber seal reduces friction.

Models:

29" front 20x110 Boost + 27.5" rear 12x157 SRAM XD:

Freehub:

SRAM XD

Gearing:

11-/12-speed

Manufacturer Number:

F00029301 (front) + R00032005 (rear)

Conversion Options:

To convert to Shimano MTB (11-speed), a Shimano freehub body is required.

29" front 20x110 Boost + 27.5" rear 12x157 Shimano Micro Spline:

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

F00029301 (front) + R00032107 (rear)

Conversion Options:

To convert to Shimano MTB (11-speed), a Shimano freehub body is required.

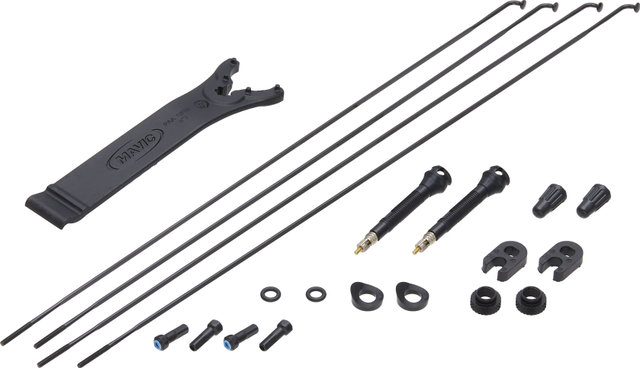

Contents:

• 1 x Mavic Deemax DH 6-Bolt Disc 29" / 27.5" wheelset (front and rear wheel)
• 2 x UST valve with accessories
• 2 x rolls Mavic rim tape (applied)
• 1 x multi-tool
• 4 x spare spokes
• 4 x spare nipples

Order Together:

Optional accessories:

• 15 mm adapter for front wheel
