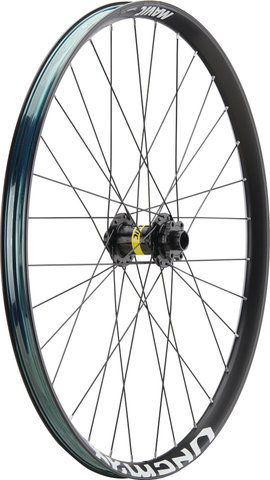

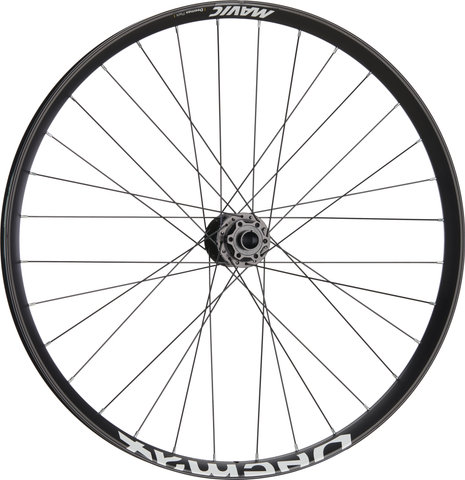

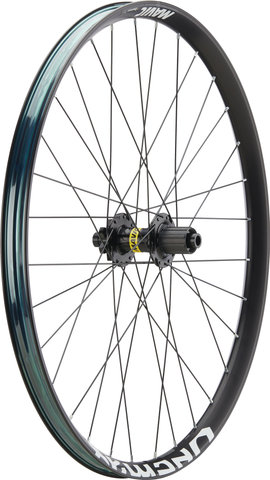

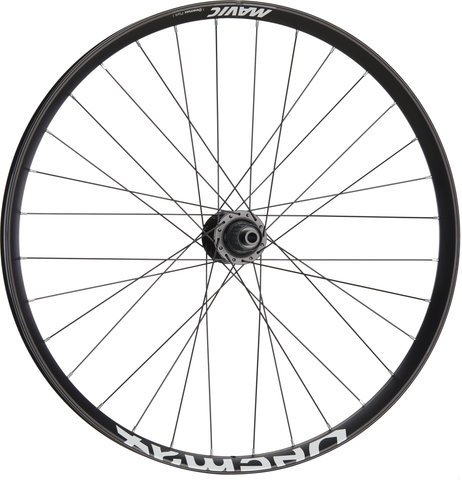

Mavic Deemax Park 6-bolt Disc 27.5" Boost Wheelset

The Mavic Deemax Park 27.5 Boost wheelset for more fun on trails

The Mavic Deemax Park is a durable 27.5" wheelset for fun-oriented mountain biking in the bike park or on your favourite trails. It is designed for frames or forks with Boost width and for 6-bolt brake rotors. Whether enduro, freeride, DH or dirt - the 30 mm wide aluminium rims with special puncture protection sidewalls won't let you down. 32 J-bend spokes front and rear withstand impacts and wear, so you can ride with confidence on any terrain. The high-quality Mavic hubs and the efficient ID360 freehub also impress with their reliability and low maintenance.

Specifications:

Application:

All Mountain, Enduro, Downhill, Dirtjump & Slopestyle

Wheel Size:

27.5" (650B)

Tyre Type:

clincher tyre

Number of Spokes:

32

Brake Type:

6-bolt disc (Boost)

Wheel Standard:

Boost

Tubeless System:

Tubeless Ready

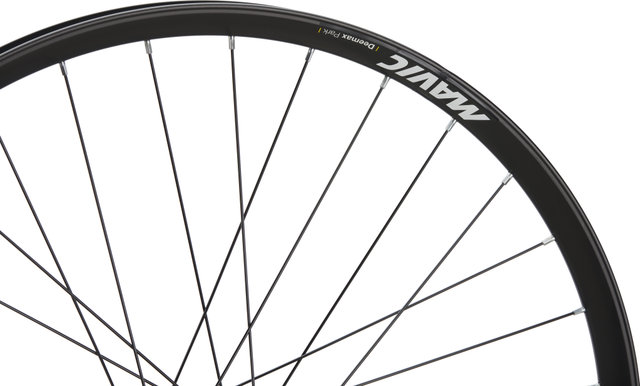

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

30-584

Inner Width:

30 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium (S6000)

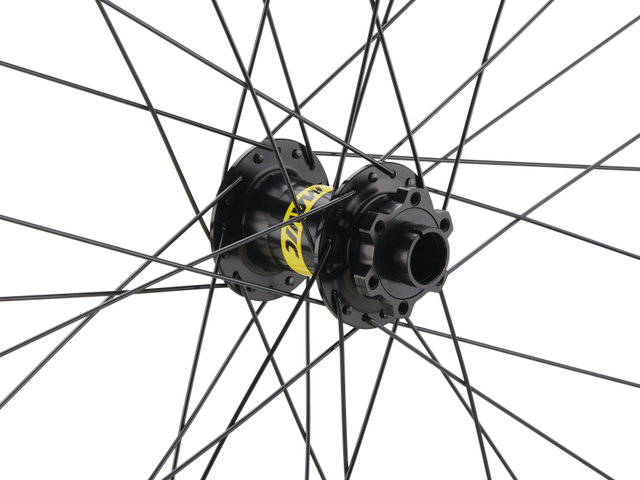

Technical Information - Front Hub:

Over Locknut Dimension:

20 x 110 mm thru-axle, convertible to 15 x 110 mm thru-axle

Bearings:

cartridge bearings, sealed (QRM)

Body Material:

aluminium

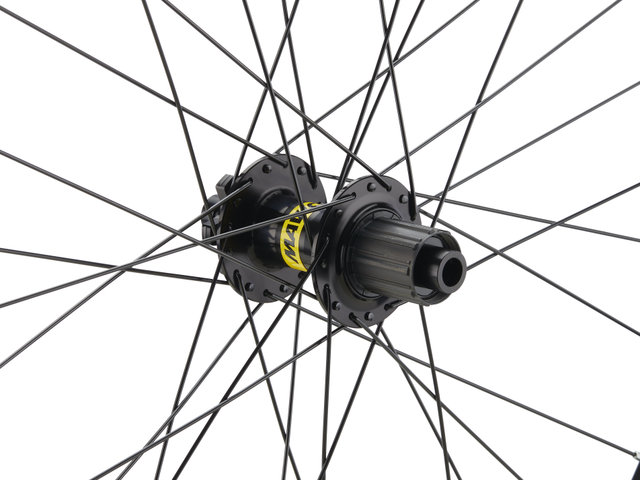

Technical Information - Rear Hub:

Over Locknut Dimension:

12 x 148 mm thru-axle

Bearings:

cartridge bearings, sealed (QRM)

Body Material:

aluminium

Freehub Body:

Instant Drive 360

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

J-bend

Spoke Material:

steel

Nipple Type:

ABS

Nipple Material:

steel

Approved For:

Weight Limit:

150 kg total weight* (rider, gear & bike)

Air Pressure (max.):

2.95 bars with 52 mm tyres, 2.85 bars with 64 mm tyres

Recommended Tyre Width:

2.35 - 3.0" (60 - 76 mm)

* recommended for increased durability

Features:

• durable, reliable MTB wheelset for 27.5" Boost bikes
• versatile: enduro, DH, freeride, bike park, dirt ...
• tubeless-compatible aluminium rims with 30 mm rim width for tyres up to 3" wide
• more puncture protection thanks to PFP sidewalls
• maintenance-friendly J-bend spokes withstand heavy impacts and wear and tear
• maintenance-friendly hubs and easy-to-replace freehub
• front can be converted to 15 mm thru-axle (adapter included)
• conventional rim holes: rim tape required (included in scope of delivery)
• rim joint welded (SUP)
• ASTM category 5: for extreme terrain and downhill-orientated gravity use

Technology:

SUP
SUP means Soudé Usiné Process and creates a much more stable and smoother rim joint. The rim joint is welded and then milled over to achieve an even braking surface. SUP prevents any brake judder and facilitates spoking and centring of the wheel.

Pinch Flat Protection
Rims with PFP technology have a larger contact area at the top of the sidewall, which reduces the risk of tyre punctures and blowouts by about 20%. It is an innovation that was first used for e-bike wheels.

QRM
Qualité de Roulements Mavic. Cartridge bearings of this quality are only available in Mavic hubs. For QRM wheels with double seals (type 2RS or LLU) and extremely low manufacturing tolerances. Highest efficiency thanks to minimum bearing clearance and extreme dimensional accuracy. Enormous longevity.

Instant Drive 360
The Instant Drive 360 freehub system is super light and ensures a fast power connection with an engagement angle of only 9° (road) or 15° (MTB). A large, non-contact rubber seal reduces friction.

Models:

27.5" set (front 20x110 Boost + rear 12x148 Boost) Shimano:

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

F00033301 (front) + R00033102 (rear)

Conversion Options:

To convert to SRAM XD, a XD freehub body is required. To convert to Shimano Micro Spline a separate Micro Spline freehub is required.

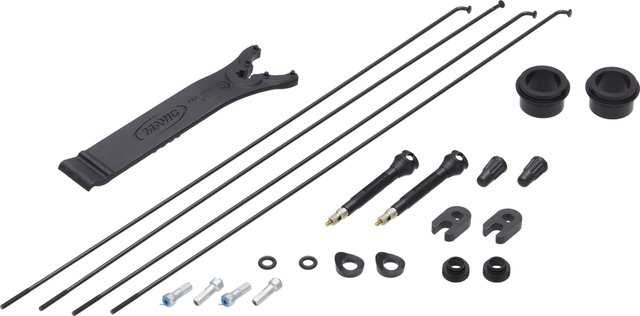

Contents:

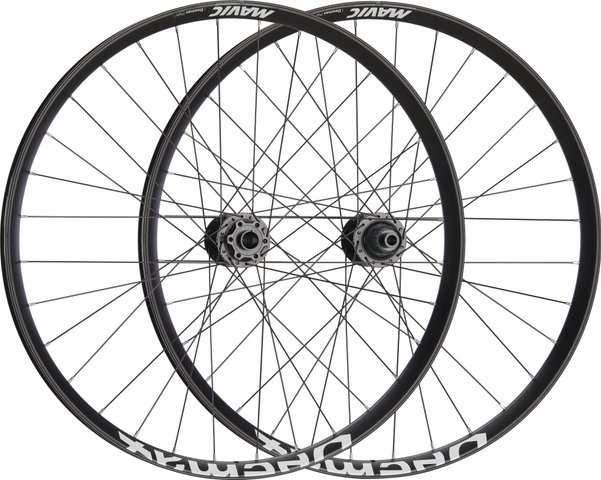

• 1 x Mavic Deemax Park 6-Bolt Disc 27.5" Boost wheelset (front and rear wheel)
• 2 x UST valve with accessories
• 2 x rolls Mavic rim tape (applied)
• 1 x multi-tool
• 4 x spare spokes
• 4 x spare nipples
• 2 x Mavic 15 mm front adapters
