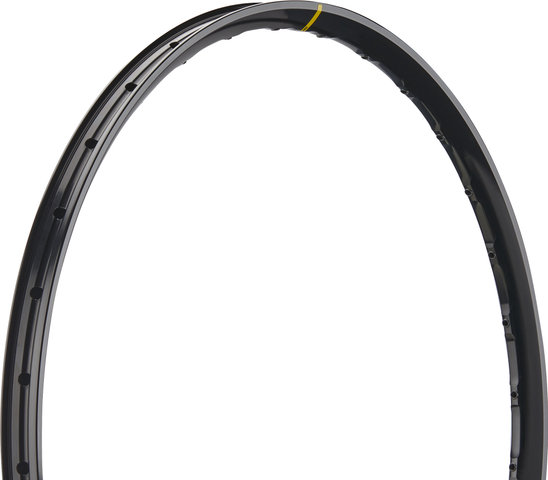

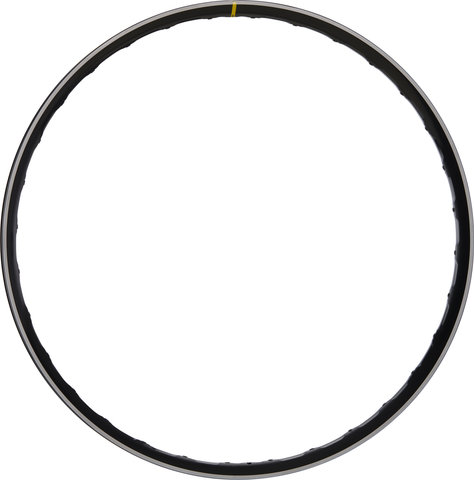

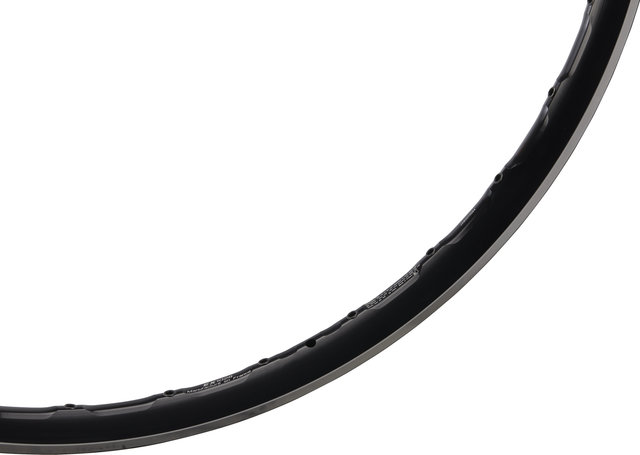

Mavic EX 1028 Disc 29" Rim

The Mavic EX 1028 is a 29" aluminium rim for enduro and downhill use, which has a jaw width of 28 mm. It is characterised by great robustness and was designed to take even the hardest blows. DH racers and big mountain freeriders put the EX 1028 through its paces.

Specifications:

Application:

Enduro, Downhill

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

28, 32

Brake Type:

disc

Tubeless System:

Tubeless Ready

Technical Information:

Dimensions (ETRTO):

28-622

Rim Flange:

with hook

Inner Width:

28 mm

Outer Width:

32.8 mm

Depth:

20.6 mm

ERD:

597 mm (rim bed)

Valve Hole Diameter:

SV / Presta (6.5 mm)

Rim Material:

Aluminium (Maxtal, S6000)

Features:

• absorbs the hardest impacts thanks to triangular profile
• excellent stability
• ideal for modern Gravity tyres
• welded rim joint
• conventional rim bores, asymmetrical
• recommended nipple length: 14 mm

Technology:

Maxtal
Made exclusively for Mavic, this lightweight and strong aluminium alloy offers a higher strength-to-weight ratio than standard 6106 aluminium. Maxtal rims are 30% stiffer and weigh less than other aluminium rims.

SUP
SUP means Soudé Usiné Process and creates a much more stable and smoother rim joint. The rim joint is welded and then milled over to achieve an even braking surface. SUP prevents any brake judder and facilitates spoking and centring of the wheel.

Manufacturer Numbers:

28 hole:

J4370128

32 hole:

J4370132

Contents:

• 1 x Mavic EX 1028 29" rims

Order Together:

• Mavic Tubeless Rim Tape in 32 mm
