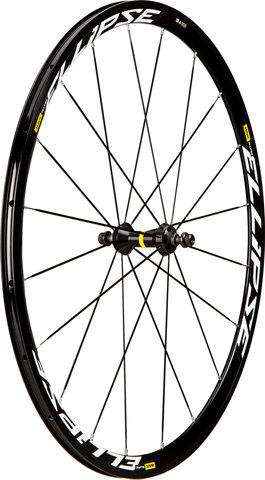

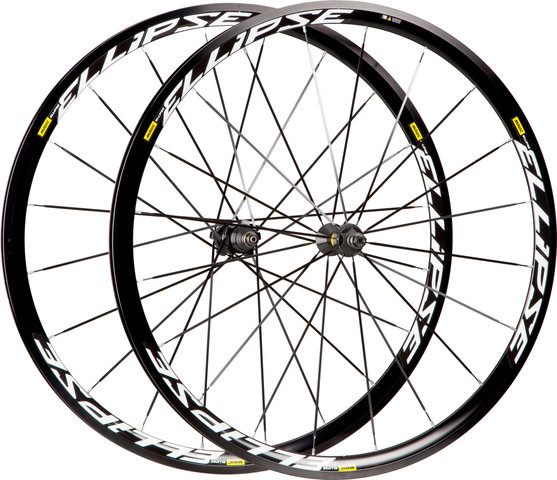

Mavic Ellipse Wheelset

Light and versatile for track, training or competition: the Mavic Ellipse wheelset

For recreational track cycling or training for the toughest races, the Ellipse is the first choice. It is based on 30 mm deep, welded aluminium rims with first-class aerodynamics and high stability. The hub flanges have large spacing to provide maximum stiffness. Solid industrial bearings and strong, straight aero spokes create a stable connection between rim and hub. At the back there are 2 threads to allow 2 different sprockets to be used on one wheel and to make gear changes faster, which makes training easier. The design for user-friendly clincher tyres also contributes to this.

Specifications:

Application:

Track

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

20

Brake Type:

none*

Tubeless System:

none

* Mavic Ellipse wheels have no brake tracks and may therefore never be used on the road, only in track races.

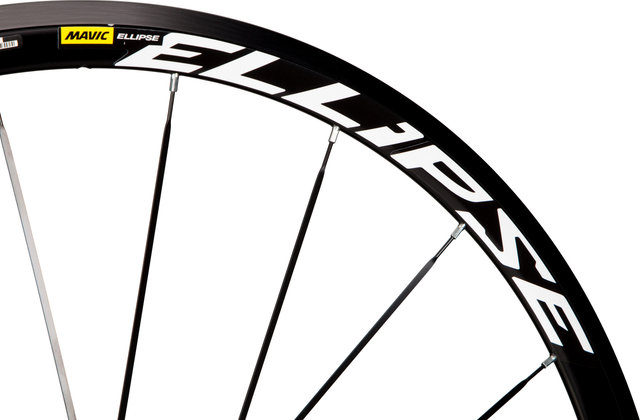

Technical Information - Rim:

Dimensions (ETRTO):

15-622

Inner Width:

15 mm

Outer Width:

19 mm

Depth:

30.5 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium (Maxtal)

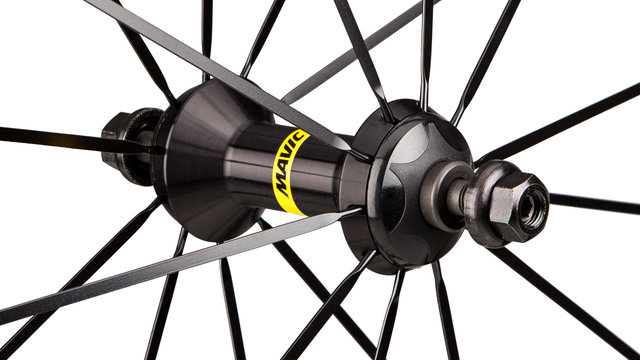

Technical Information - Front Hub:

Over Locknut Dimension:

9 x 100 mm threaded axle

Bearings:

cartridge bearings (sealed)

Body Material:

Aluminium

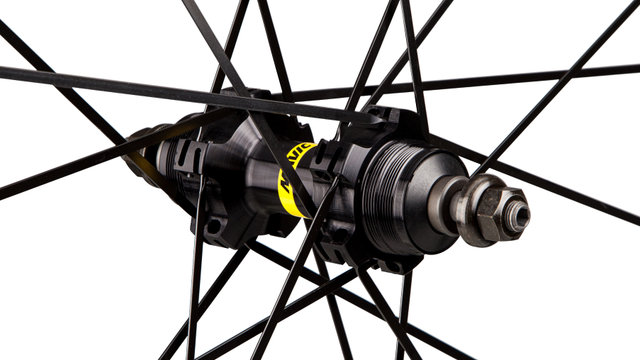

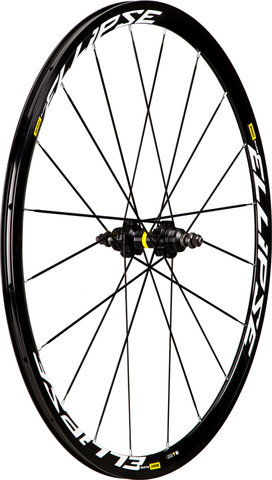

Technical Information - Rear Hub:

Over Locknut Dimension:

10 x 120 mm threaded axle

Bearings:

cartridge bearings (sealed)

Body Material:

Aluminium

Technical Information - Lacing:

Front Lacing Pattern:

radial

Rear Lacing Pattern:

2-cross

Spoke Type:

straight / aero

Spoke Size:

279 mm (front) / 296 mm (rear)

Spoke Material:

steel

Nipple Type:

self-locking

Nipple Material:

brass

Approved For:

Weight Limit:

120 kg total weight* (rider, gear & bike)

Air Pressure (max.):

8.7 bars (23 mm)

Recommended Tyre Width:

21 mm - 28 mm

* recommended for increased durability

Features:

• low air resistance - thanks to strong aero features
• optimum power transmission
• light and versatile
• rear hub with two sprocket mounts (" flip-flop" )
• steel axles
• sealed, adjustable cartridge bearings
• conventional rim drilling
• SUP rim joint
• rear chainline: 42 mm
• minimum sprocket width: 7.5 mm

Technology:

Maxtal
The aluminium alloy produced exclusively for Mavic is 30 % more resistant than 6106 aluminium. That's why Maxtal rims can be super light - and yet durable.

SUP
Soudé Usiné Process. The rim joint is welded and then machined to produce a smooth surface. A welded rim joint is more durable and facilitates the lacing and truing of a perfect wheel.

QRM+
Qualité de Roulements Mavic +. Mavic's most sophisticated bearing technology: with double seal and extremely dimensionally stable, micro-fine adjustable - according to your needs: super-smooth for maximum rotation and minimum tightening in bad weather conditions.

Models:

28" set (front + rear) Track clincher:

Freehub:

screw-on cassette

Sprocket Mount:

threaded (35x24)

Gearing:

1x

Manufacturer Number:

F3250110 (front) + R5670110 (rear)

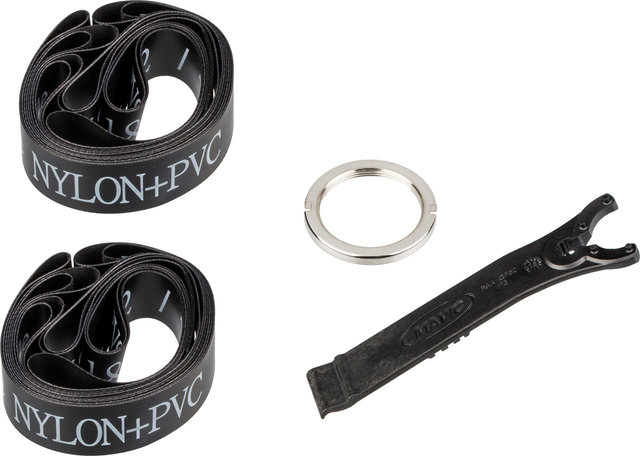

Contents:

• 1 x Mavic Ellipse wheelset (front and rear)
• 2 x rolls Mavic rim tape
• 1 x bearing adjustment tool
• 1 x sprocket lockring
• 4 x axle nuts
