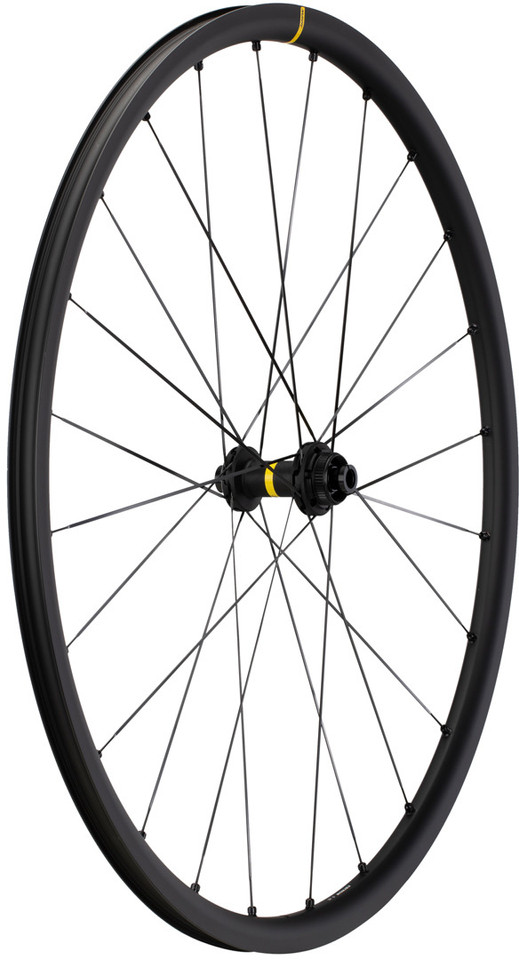

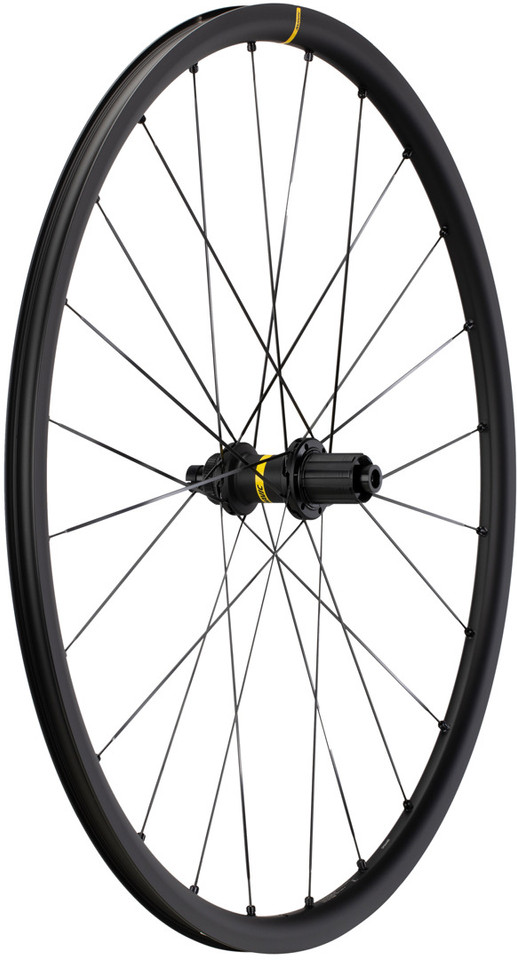

Mavic Ksyrium S Center Lock Disc Wheelset

The Mavic Ksyrium S Wheelset - Attractive entry-level model

The Mavic Ksyrium S Center Lock Disc is a disc brake compatible wheelset for road bike beginners that convinces with a good stiffness-to-weight ratio, durability and an attractive finish. It is based on 19 mm wide rims that can be ridden without a tube. This results in advantages such as greater puncture resistance, less rolling resistance and weight savings. At the centre of the wheels are hubs with self-aligning bearings and optimised spoke holes, each fitted with 24 double butted straight pull front and rear spokes. Special rim bed technology eliminates the need for tubeless rim tape.

Specifications:

Application:

Road

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

UST Road Tubeless

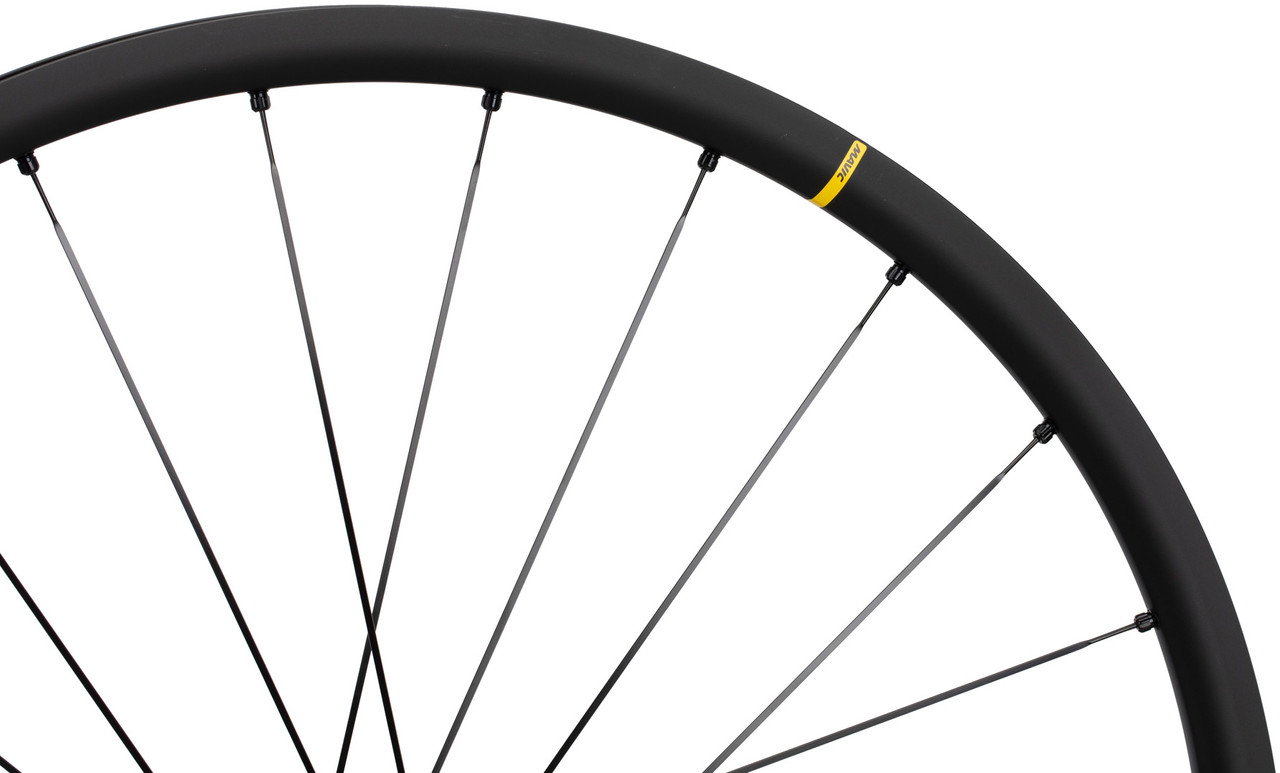

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

19-622

Inner Width:

19 mm

Outer Width:

22.5 mm

Depth:

25 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium (Maxtal)

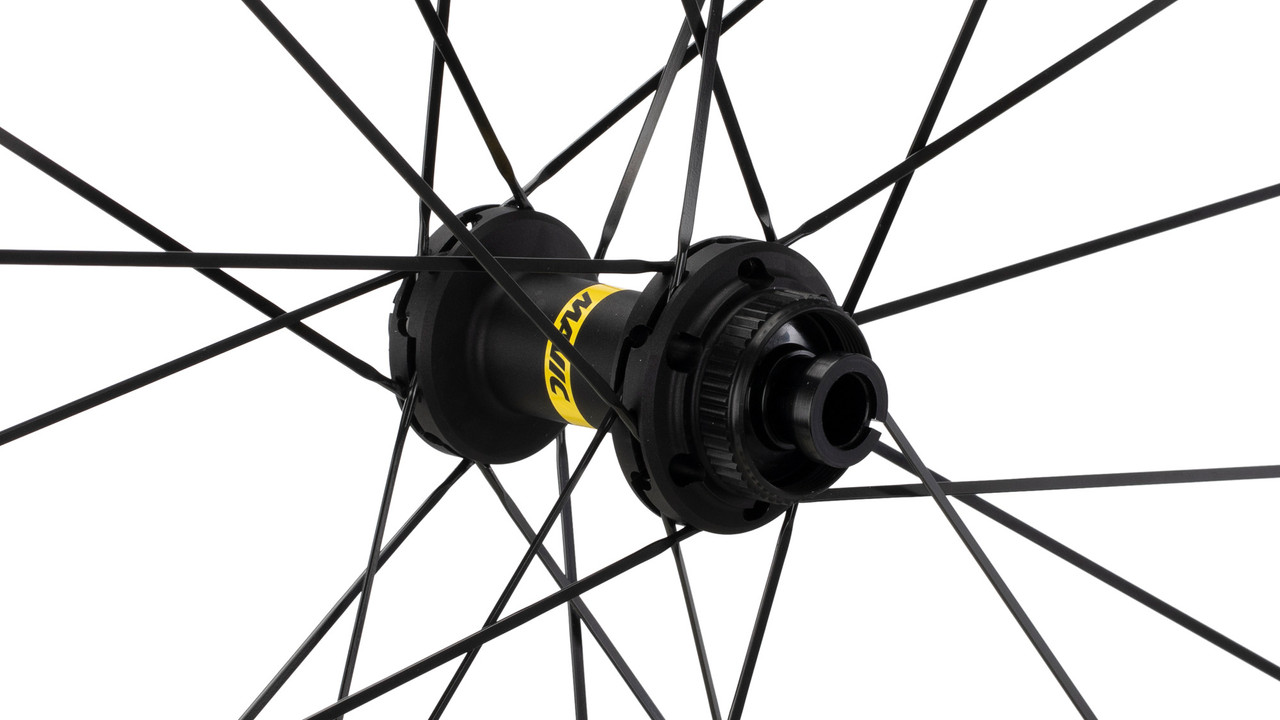

Technical Information - Front Hub:

Type:

Mavic Infinity

Over Locknut Dimension:

12 x 100 mm thru-axle, convertible to 9 x 100 mm quick release

Bearings:

self-aligning sealed cartridge bearings

Body Material:

aluminium

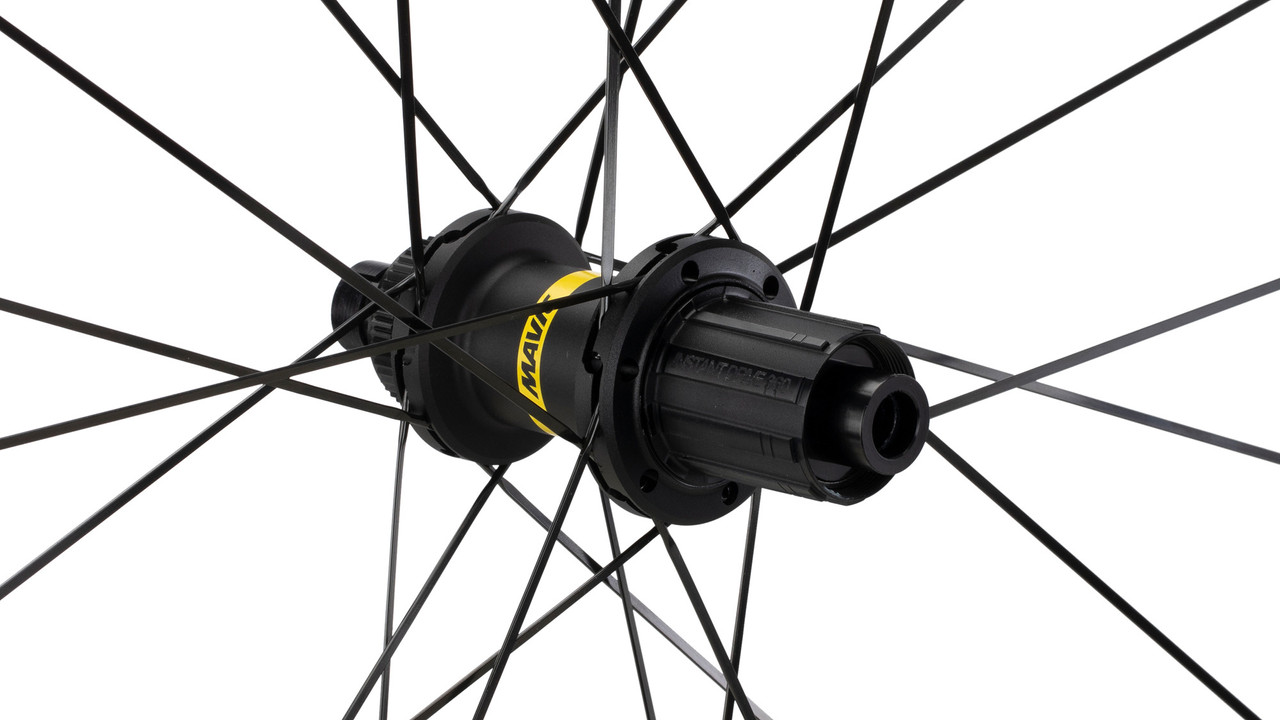

Technical Information - Rear Hub:

Type:

Mavic Infinity

Over Locknut Dimension:

12 x 142 mm thru-axle, convertible to 10 x 135 mm quick release

Bearings:

self-aligning sealed cartridge bearings

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

Instant Drive 360

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

straight pull / double-butted

Spoke Size:

294 mm

Spoke Material:

steel

Nipple Type:

Fore, integrated

Nipple Material:

aluminium

Approved For:

Weight Limit:

120 kg total weight* (rider, gear & bike)

Air Pressure (max.):

see specifications on wheel and tyre (if different take the lower value)

Recommended Tyre Width:

25 - 32 mm

* recommended for increased durability

Features:

• lightweight and durable for everyday and training performance
• laterally stiff and vertically compliant for a more dynamic ride
• user-friendly tubeless system for more comfort and control
• rim profile optimised for disc brakes
• rim joint welded (SUP)
• Infinity hub design for optimal lacing
• aluminium axles

- front can be converted to quick release (with supplied adapters), not compatible with 15 mm thru-axles

• rear can be converted to quick release (with included adapters) or to 12 x 135 mm thru-axle (with separate adapter)
• extra-light Shimano freehub body optionally available
• no rim tape required thanks to Fore technology
• ASTM category 2: for use on roads, maintained dirt roads and gravel roads (on Touring and Cross Country bikes) with jumps up to a height of 15 cm

Technology:

Maxtal
Made exclusively for Mavic, this lightweight and strong aluminium alloy offers a higher strength-to-weight ratio than standard 6106 aluminium. Maxtal rims are 30% stiffer and weigh less than other aluminium rims.

SUP
SUP means Soudé Usiné Process and creates a much more stable and smoother rim joint. The rim joint is welded and then milled over to achieve an even braking surface. SUP prevents any brake judder and facilitates spoking and centring of the wheel.

Infinity Hub Design
Infinity hubs from Mavic allow contactless lacing, which prevents noise development under load. At the same time, this design is lighter, stiffer and easier to maintain. Often you only need one spoke length per wheel set, so that an optimal spare parts supply is given.

QRM Auto
QRM Auto stands for Qualité de Roulements Mavic Auto, and is the latest bearing innovation from Mavic. These cartridge bearings with C3 internal clearance are double sealed. Their bearing clearance is automatically adjusted to guarantee smooth running without any play at all times.

Instant Drive 360
The Instant Drive 360 freehub system is super light and ensures a fast power connection with an engagement angle of only 9° (road) or 15° (MTB). A large, non-contact rubber seal reduces friction.

Fore Tapeless Tubeless
Instead of drilling a conventional rim hole, the inner rim base is pressed inwards in one operation and provided with a thread into which the nipples are screwed directly. The outer rim base remains intact. This results in a stiffer and stronger wheel that means rim tape can be omitted, which also translates to weight savings.

Models:

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

Installing 8-/9-/10-speed cassettes on Shimano freehubs requires a 1.85 mm spacer.

Manufacturer Number:

P1326155

Conversion Options:

To convert to Campagnolo, a separate Campagnolo freehub body is required.

28" set (front 12x100 + rear 12x142) SRAM XDR:

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Note:

A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.

Manufacturer Number:

P1462160

Conversion Options:

To convert to Campagnolo, a separate Campagnolo freehub body is required.

Contents:

• 1 x Mavic Ksyrium S Disc Wheelset (front and rear)
• 1 x pair end caps for quick release, front
• 1 x pair end caps for quick release, rear
• 2 x UST valve with accessories

• black/100 mm/28"/Shimano Road/100 mm/Shimano Road/100 mm: 1670 g
