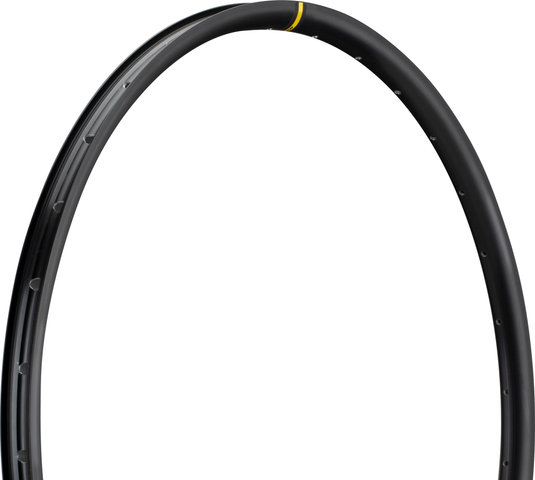

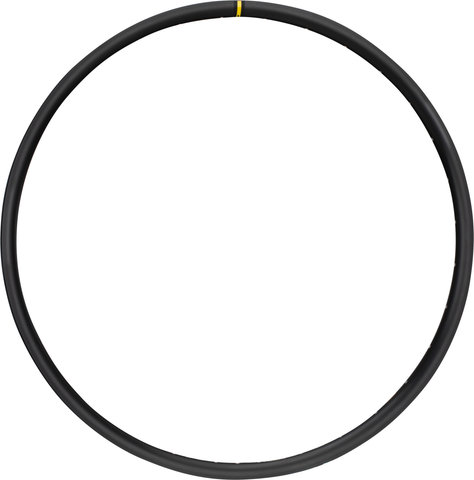

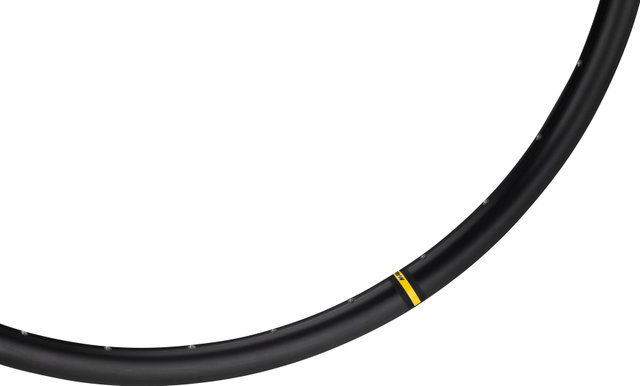

Mavic XC 425 Disc 29" Rim

The XC 425 Disc 29" rim by Mavic - no eyelets, sleeved, tubeless ready

The Mavic XC 425 Disc rim is only available in 29" as it is designed for Cross Country use. It is made of aluminium and was assembled with the aid of a shaped sleeve that is pressed in evenly on both sides (sleeve process). The XC 425 is 25 mm wide on the inside, has no eyelets and can be ridden without a tube.

Specifications:

Application:

Cross Country

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

28, 32

Brake Type:

disc

Tubeless System:

Tubeless Ready

Technical Information:

Dimensions (ETRTO):

25-622

Inner Width:

25 mm

Outer Width:

28.2 mm

Depth:

21.2 mm

ERD:

596 mm (rim base diameter)

Valve Hole Diameter:

SV / Presta (6.5 mm)

Rim Material:

aluminium (6351)

Approved For:

Recommended Tyre Width:

1.7" - 2.4"

Features:

• lugged rim joint (sleeve method)
• not eyeleted
• anodised
• UST tubeless

Manufacturer Number:

LJ3830100

Contents:

• 1 x Mavic XC 425 rim
