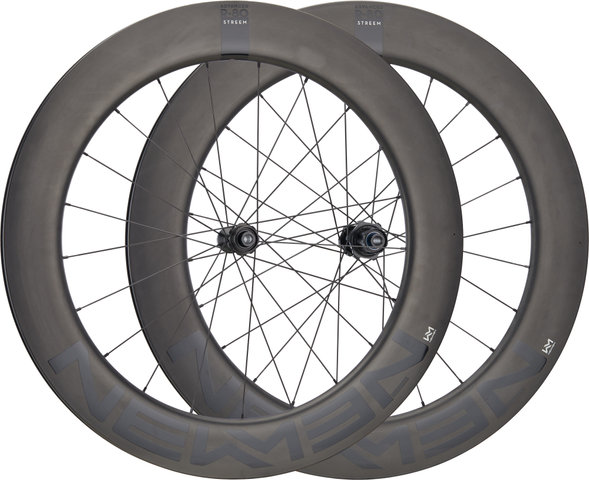

NEWMEN Advanced SL R.80 Streem Center Lock Disc Carbon 28" Wheelset

The NEWMEN Advanced SL R.80 Streem Center Lock Disc Carbon 28" wheelset - Uncompromising aerodynamics for racing bikes

The extremely streamlined Advanced SL R. Streem Disc Center Lock 28-inch wheelset by NEWMEN has 80 mm deep carbon rims and brings performance to the road. Its highly aerodynamic properties can be clearly seen in areas such as the valves, which are recessed into the rims and disappear there completely. The aerodynamics are further underscored by Pillar bladed spokes. The FADE hubs are reliable and fail-safe. At the rear wheel, the hub impresses with a quietly whirring freewheel.
That's why road cycling pros also rely on these wheels: Biniam Girmay was able to go down in history as the first Eritrean stage winner of a Grand Tour when he won the 10th stage of the Giro d'Italia 2022 with an Advanced SL R. Streem wheelset.

Specifications:

Application:

Road

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

21 (front), 24 (rear)

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

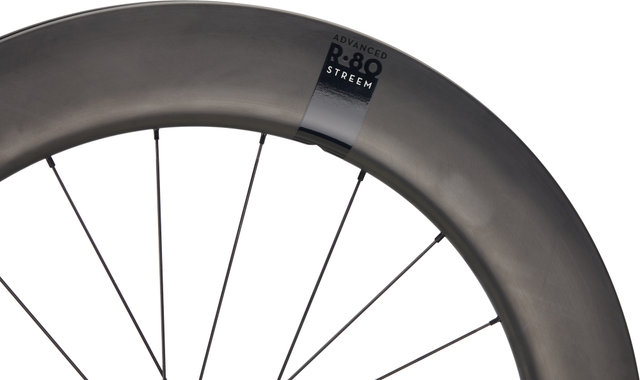

Technical Information - Rim:

Type:

Streem R.80

Rim Flange:

with hook

Dimensions (ETRTO):

18-622

Inner Width:

18 mm

Outer Width:

26.5 mm

Depth:

80 mm

ERD:

480 mm

Valve Hole Diameter:

Streem, SV (6.5 mm with adapter)

Rim Material:

Carbon

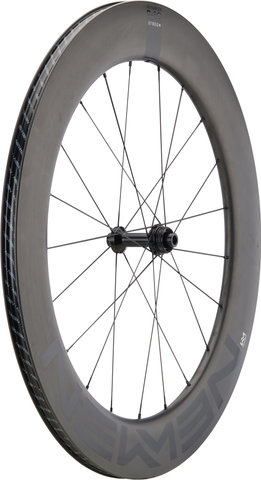

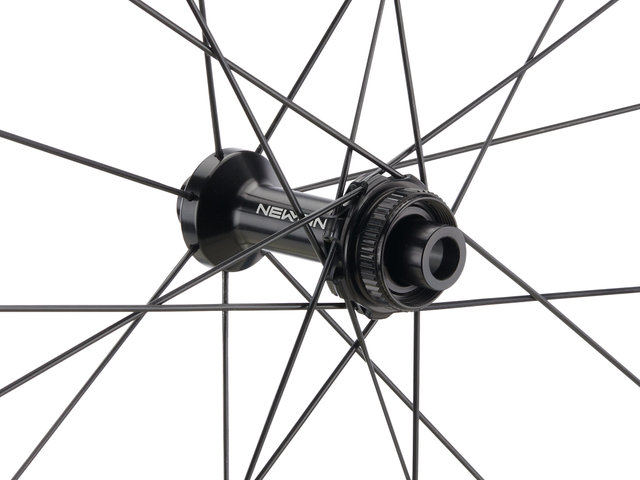

Technical Information - Front Hub:

Type:

FADE Road

Over Locknut Dimension:

12 x 100 mm thru-axle

Bearings:

2 deep groove ball bearings

Body Material:

aluminium

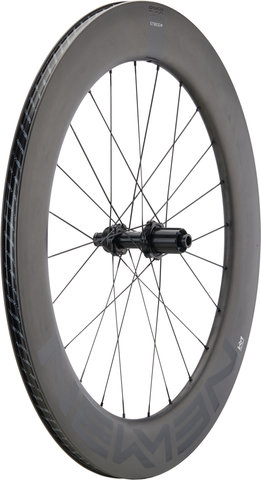

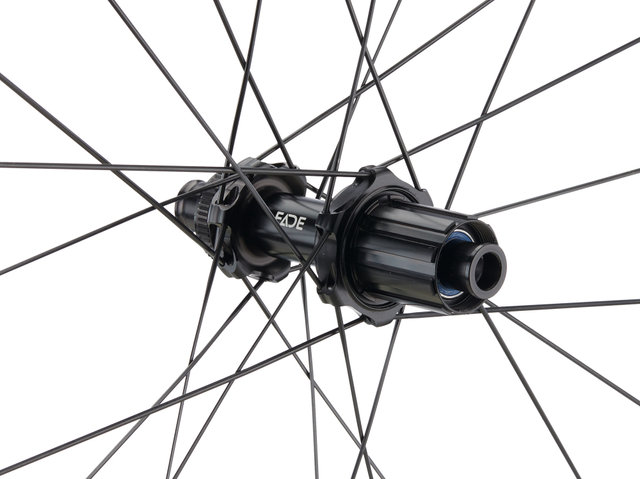

Technical Information - Rear Hub:

Type:

FADE Road

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

4 deep groove ball bearings, double sealed

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

3 pawls, 36 contact points

Technical Information - Lacing:

Front Lacing Pattern:

Twice crossed (L), radial (R)

Rear Lacing Pattern:

2-cross

Spoke Type:

Pillar Wing Aero / straight pull / bladed spoke

Spoke Material:

stainless steel

Approved For:

Weight Limit:

125 kg (system weight)

Models:

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer.

Manufacturer Numbers:

90137 (front wheel) + 90136 (rear wheel)

28" set (front 12x100 + rear 12x142) SRAM XDR:

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Note:

A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.

Manufacturer Numbers:

90137 (front wheel) + 90135 (rear wheel)

You can view hazardous substance labelling, safety and application information for the included sealant under the description for tubeless sealant.

Contents:

• 1 x NEWMEN Advanced SL R.80 Streem Center Lock Disc Carbon (front- and rear wheel)

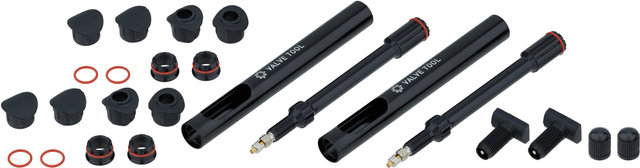

• 2 x NEWMEN Streem Aero Valve Kits
• 2 x tubeless rim tape
• 2 x bottles milKit Tubeless Sealant, 60 ml
