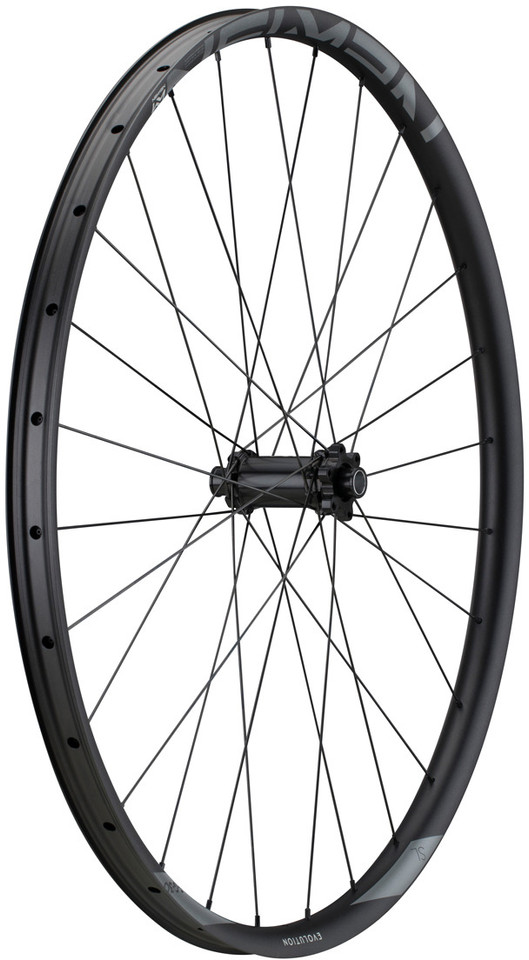

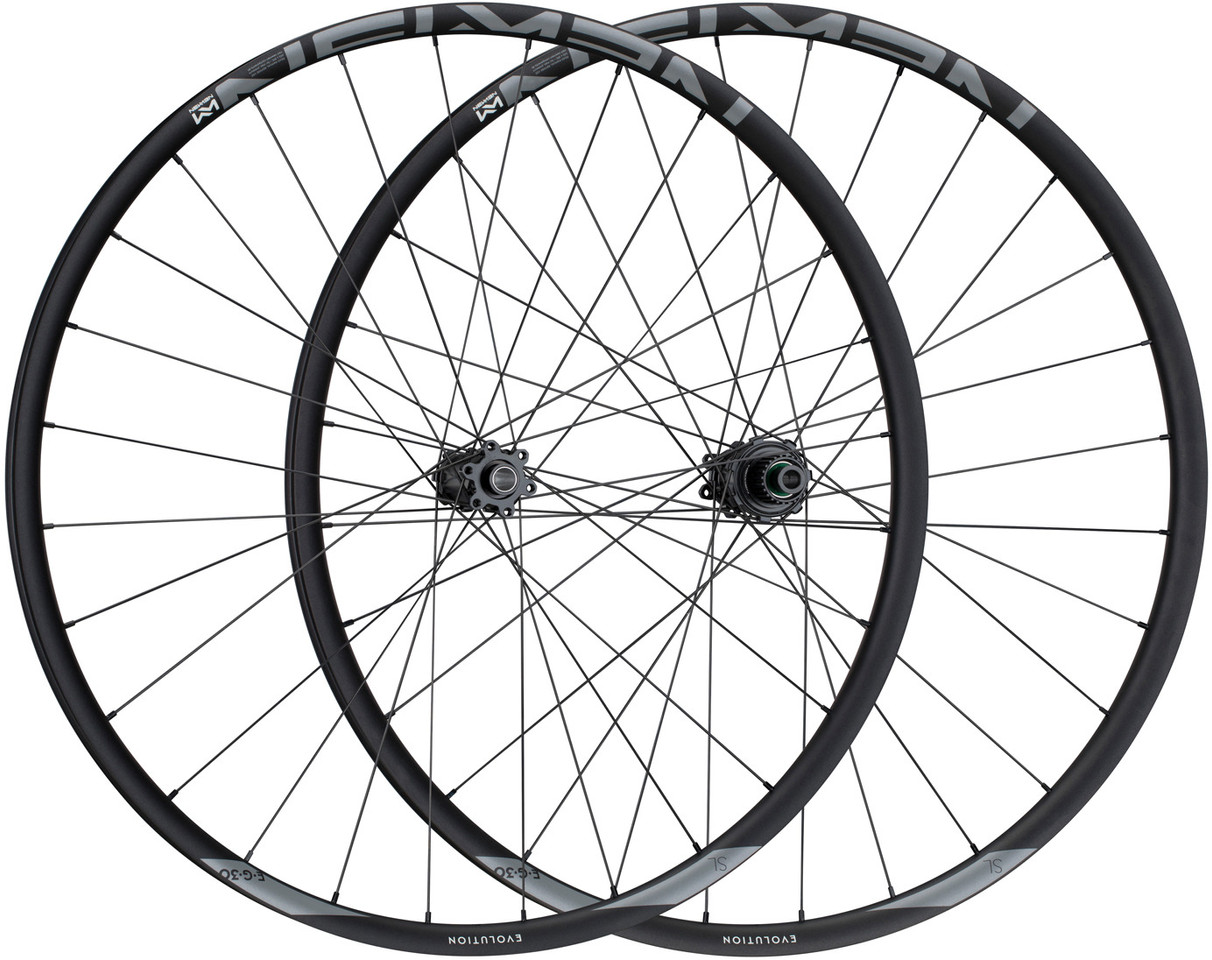

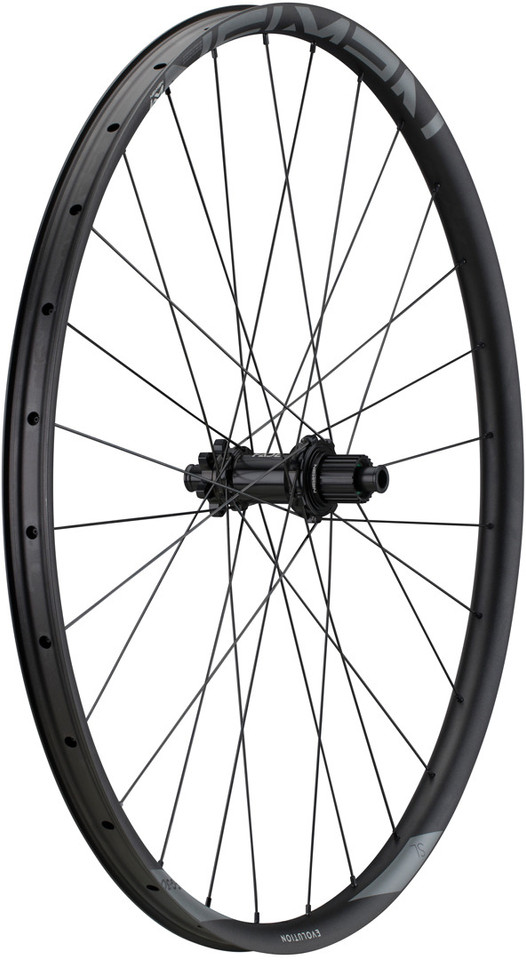

NEWMEN Evolution SL E.G.30 Fade Boost Disc 6-bolt 27.5" Wheelset

The Evolution SL E.G. The 27.5" wheelset from NEWMEN is compatible with E-MTBs for Enduro and Downhill. The combination of a FADE Boost hub, straight pull spokes and a rim with a reinforced rim wall makes it particularly stable. This also absorbs the higher loads of E-MTBs. The 30 mm rim width allows you to drive with low air pressure.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

Enduro, Downhill

Wheel Size:

27.5" (650B)

Tyre Type:

clincher tyre

Number of Spokes:

28

Brake Type:

6-bolt disc

Wheel Standard:

Boost

Tubeless System:

Tubeless Ready

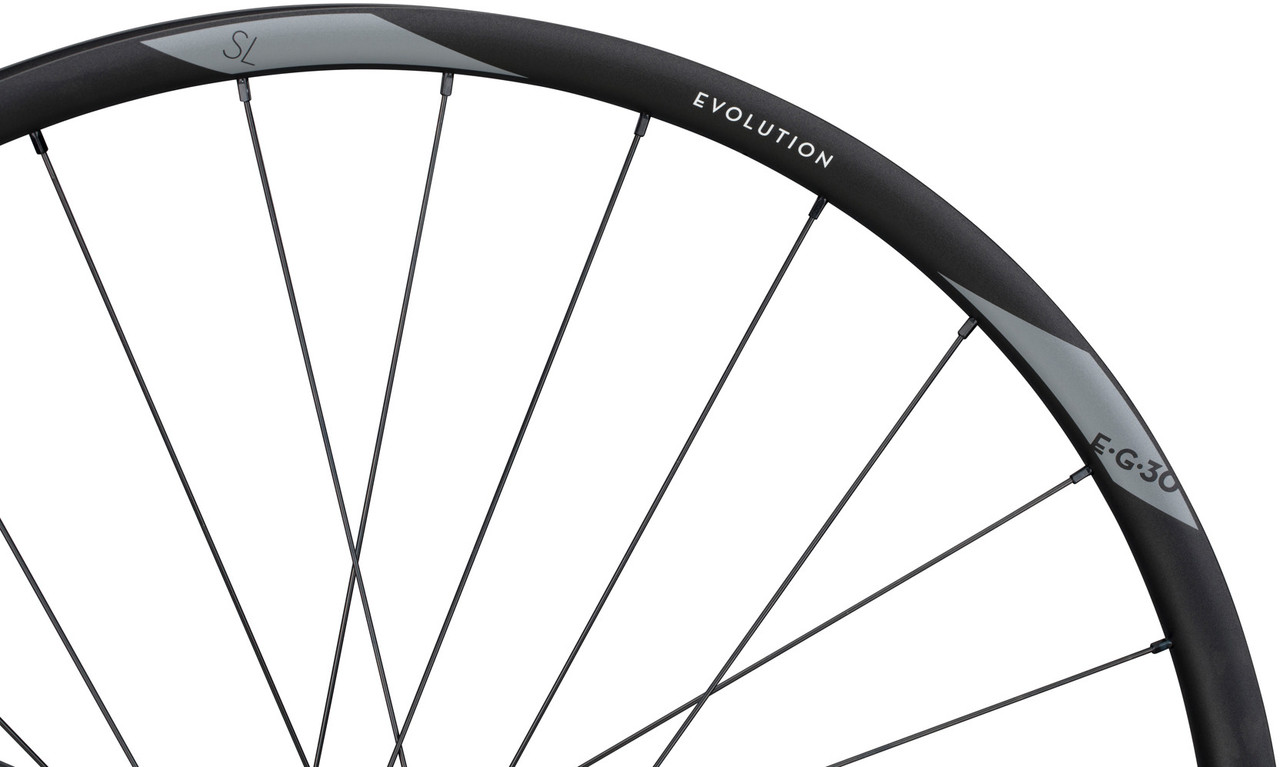

Technical Information - Rim:

Type:

Evolution SL E.G.30

Rim Flange:

without hook

Dimensions (ETRTO):

30-584

Inner Width:

30 mm

Depth:

20 mm

Valve Hole Diameter:

SV / Presta (6.5 mm)

Rim Material:

Aluminium

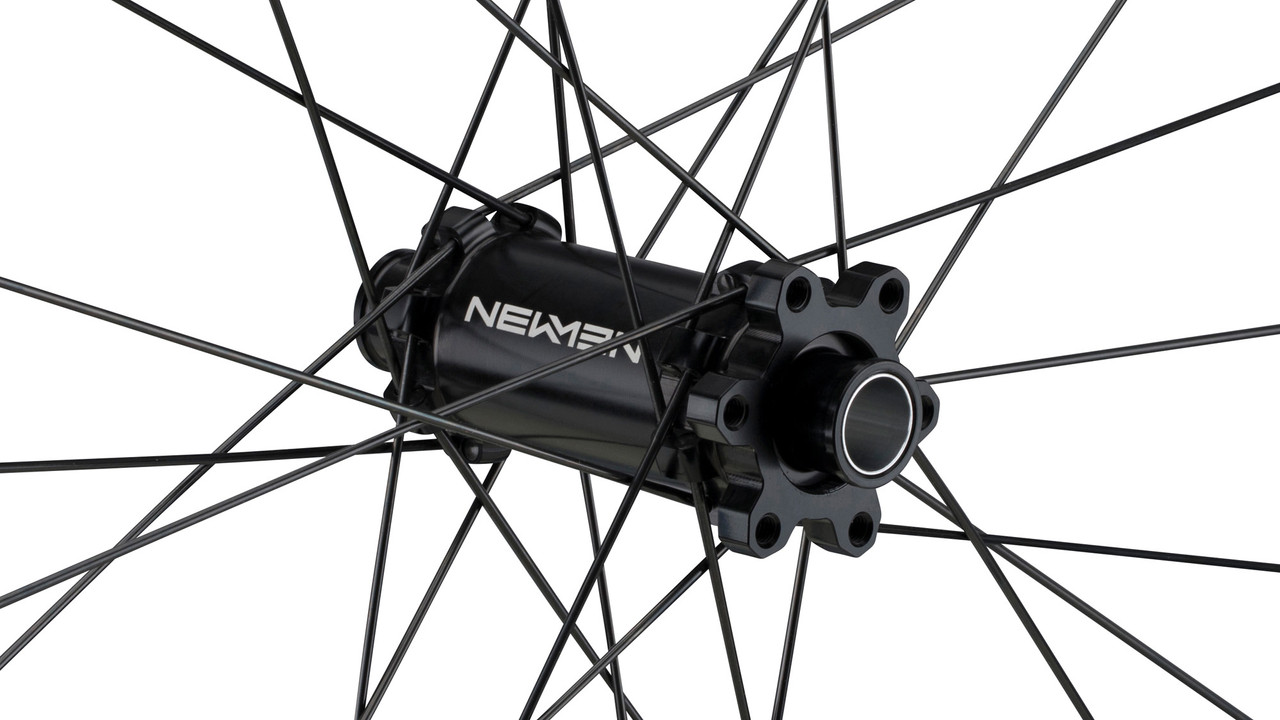

Technical Information - Front Hub:

Type:

NEWMEN FADE Straightpull

Over Locknut Dimension:

15 x 110 mm thru-axle

Bearings:

2 deep groove ball bearings, double sealed

Body Material:

Aluminium

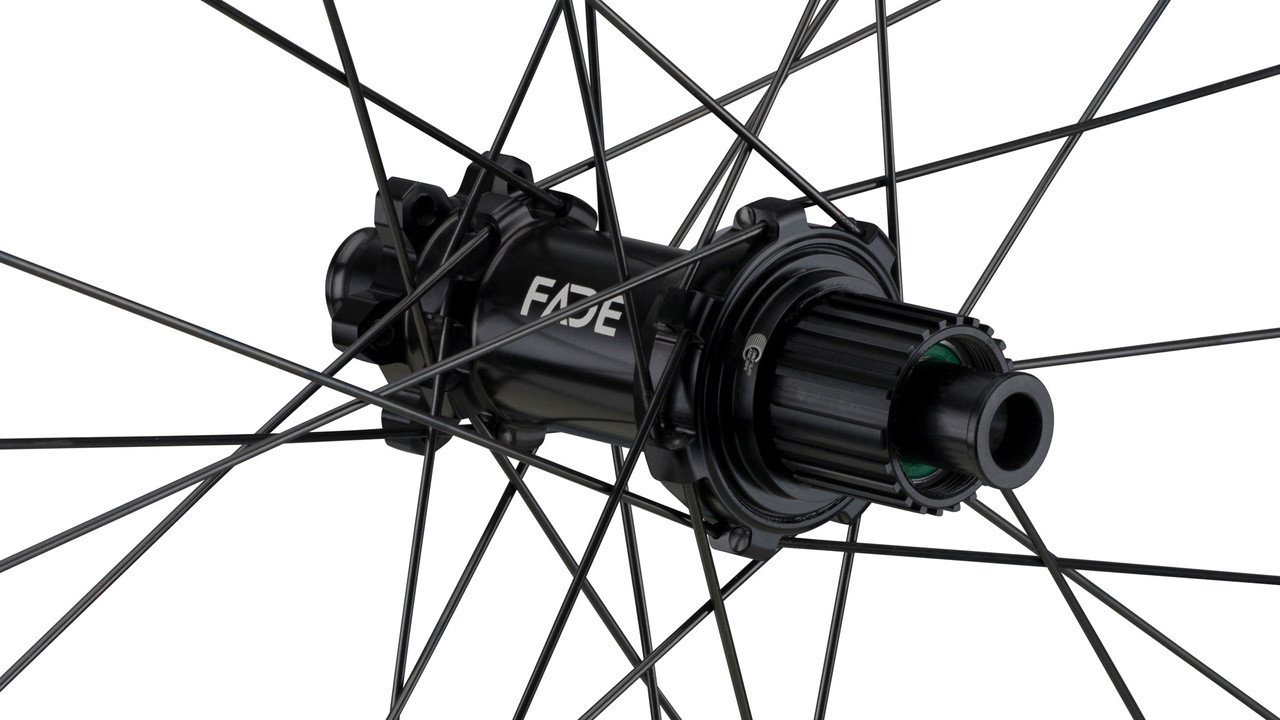

Technical Information - Rear Hub:

Type:

NEWMEN FADE Straightpull

Over Locknut Dimension:

12 x 148 mm thru-axle

Bearings:

4 deep groove ball bearings, double sealed

Body Material:

Aluminium

Freehub Body:

3 pawls, 36 tooth pitch

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

Sapim Race / straight pull

Spoke Material:

stainless steel

Nipple Material:

Aluminium

Approved For:

Weight Limit:

150 kg (system weight)

Air Pressure (max.):

2.4 bars

Recommended Tyre Width:

2.3 - 2.6"

Features:

• high-end All Mountain aluminium wheelset
• hand-assembled in Germany
• high-strength aluminium alloy
• tubeless compatible hookless design
• 32 mm rim tape required

Technology:

MG-Washer:
The weak point of aluminium or carbon rims, the nipple holes in the rim, is reinforced with an MG washer at NEWMEN. This is the solution with the least amount of material used, so that there is practically no effect on weight. The MG-Washer is concave on both sides. This means that it can be installed in both directions, and the contact surface on the rim side moves away from the nipple hole of the rim, thus providing additional relief. Another advantage is the even friction between nipple and washer, which prevents the nipple from " eating" .

Rounded Rim Profile:
The rounded rim profile has flared rim flanges with optimised flange height and wall thickness. The wall thickness on the rim flange has been increased, in the side area reduced.
The flared rim flanges shorten the distance between left and right rim flange, which saves material and weight. The tyre can also take on a rounder shape, improving comfort and cornering grip.

Colour Index:

black-black:

• Rim: black w/ grey decals
• Hub: black w/ grey decals
• Spokes: black
• Nipples: black

Models:

27.5" set (front 15x110 + rear 12x148) SRAM XD:

Freehub:

SRAM XD

Gearing:

11-/12-speed

Manufacturer Number:

90653 + 90654

27.5" set (front 15x110 + rear 12x148) Shimano Micro Spline:

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

90653 + 90655

27.5" set (front 15x110 + rear 12x148) Shimano:

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

90653 + 90656

Contents:

• 1 x NEWMEN Evolution SL E.G.30 wheelset (front and rear wheel)
