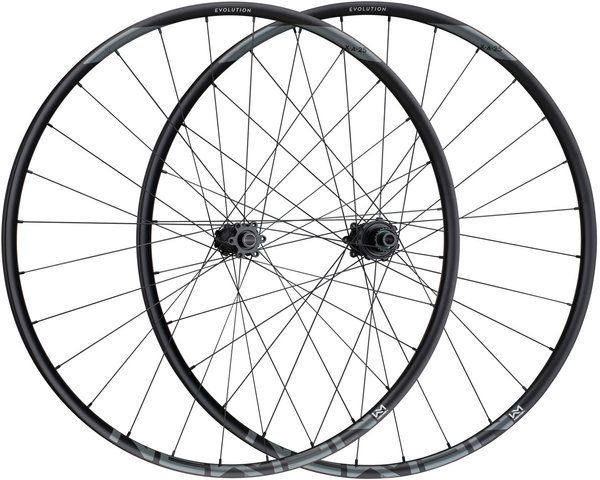

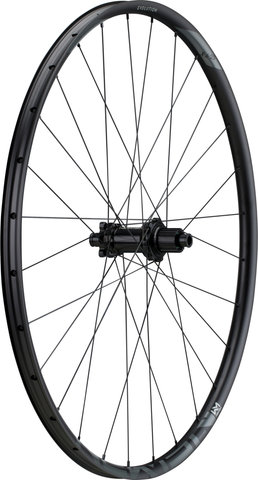

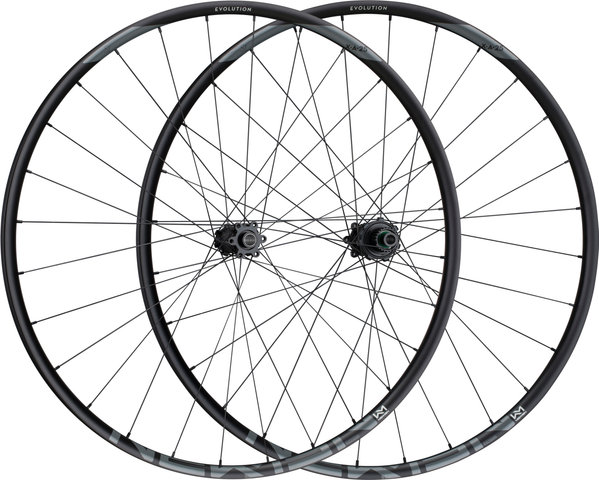

NEWMEN Evolution SL X.A.25 Fade Boost Disc 6-bolt 27.5" Wheelset

The Evolution X.A. wheelset by NEWMEN in 27.5" is very light and suitable for cross country bikers who prefer marathons. The FADE Boost hub and the 25 mm inside width make the wheels ready for wide tyres.

Specifications:

Application:

Cross Country

Wheel Size:

27.5"

Tyre Type:

clincher tyre

Number of Spokes:

28

Brake Type:

6-bolt disc

Wheel Standard:

Boost

Tubeless System:

Tubeless Ready

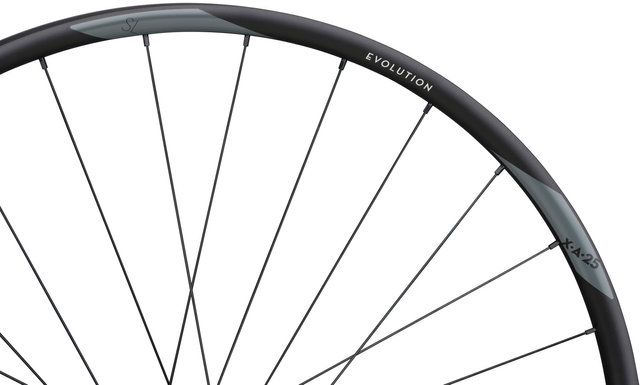

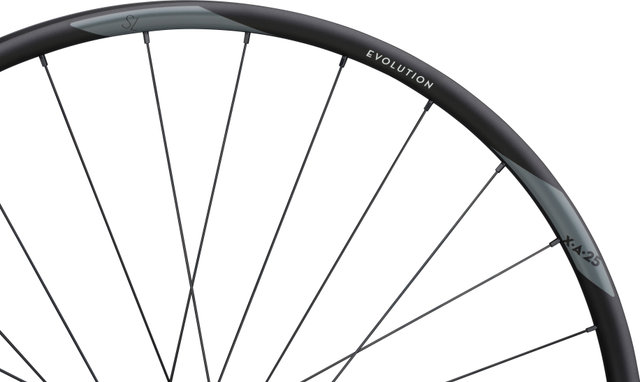

Technical Information - Rim:

Type:

Evolution SL X.A.25

Rim Flange:

without hook

Dimensions (ETRTO):

25-584

Inner Width:

25 mm

Outer Width:

28.5 mm

Depth:

17.5 mm

Valve Hole Diameter:

SV / Presta (6.5 mm)

Rim Material:

aluminium

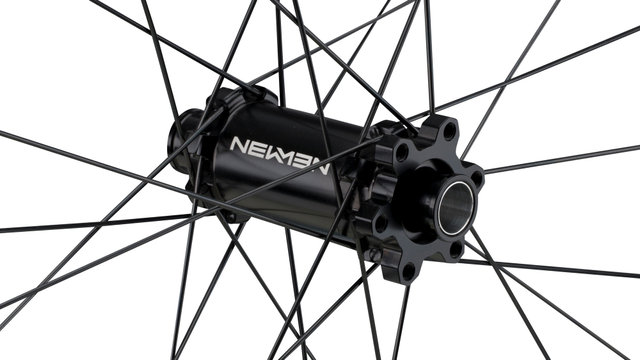

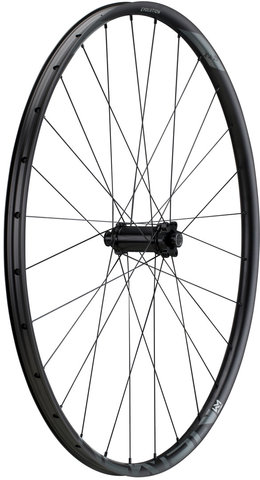

Technical Information - Front Hub:

Type:

FADE

Over Locknut Dimension:

15 x 110 mm thru-axle

Bearings:

double-sealed ball bearings

Body Material:

aluminium (7075)

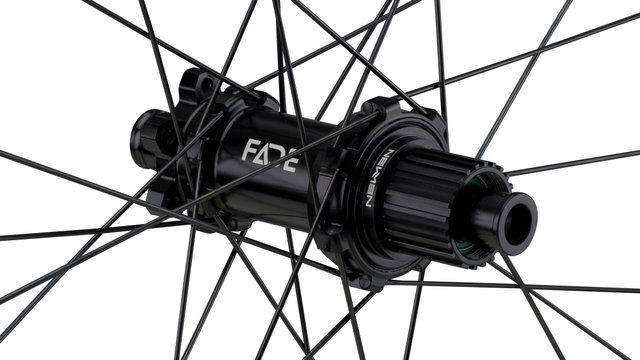

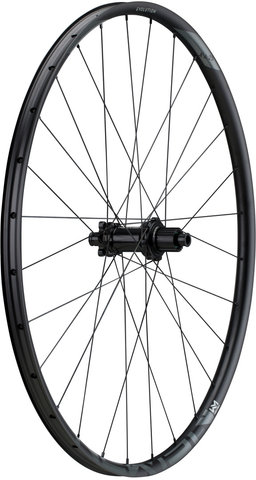

Technical Information - Rear Hub:

Type:

FADE

Over Locknut Dimension:

12 x 148 mm thru-axle

Bearings:

double-sealed ball bearings

Body Material:

aluminium (7075)

Freehub Body Material:

aluminium

Freehub Body:

3 pawls, 36 contact points

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

Straight Pull

Spoke Size:

Spoke Material:

steel

Nipple Type:

Polyax double square

Nipple Size:

16 mm

Nipple Material:

aluminium

Approved For:

Weight Limit:

125 kg (system weight)

Air Pressure (max.):

3.5 bar

Recommended Tyre Width:

1.4" to 2.4"

Features:

• Made in Germany
• rims made of high-strength aluminium
• hookless rims

Colour info:

black-black:

• Rim: black
• Hubs: black
• Spokes: black
• Nipples: black

Models:

27.5" set (front 15x110 Boost + rear 12x148 Boost) Shimano:

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Numbers:

90629 + 90632

27.5" set (front 15x110 Boost + rear 12x148 Boost) Shimano Micro Spline:

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Numbers:

90629 + 90631

27.5" set (front 15x110 Boost + rear 12x148 Boost) SRAM XD:

Freehub:

SRAM XD

Gearing:

11-/12-speed

Note:

A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub.

Manufacturer Numbers:

90629 + 90630

Contents:

• 1 x NEWMEN Evolution SL X.A.25 wheelset (front- and rear wheel)
