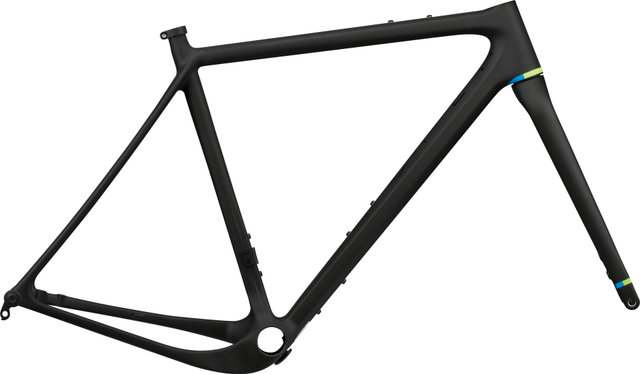

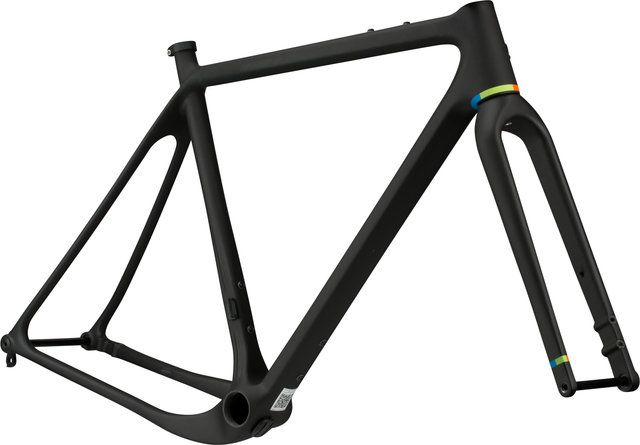

OPEN U.P.P.E.R. Frameset

The U.P.P.E.R. Frameset by OPEN - A versatile lightweight

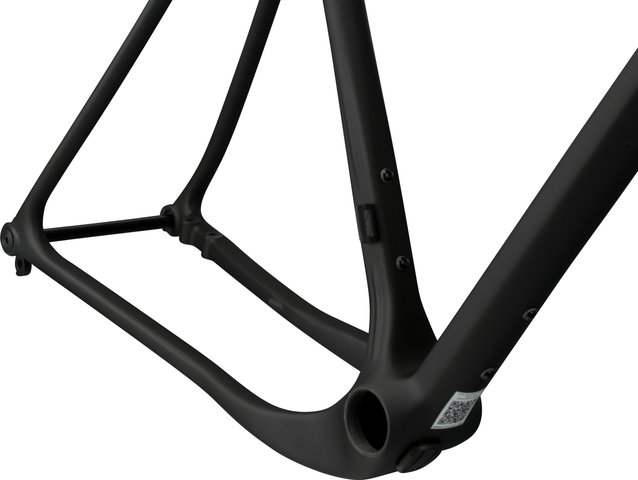

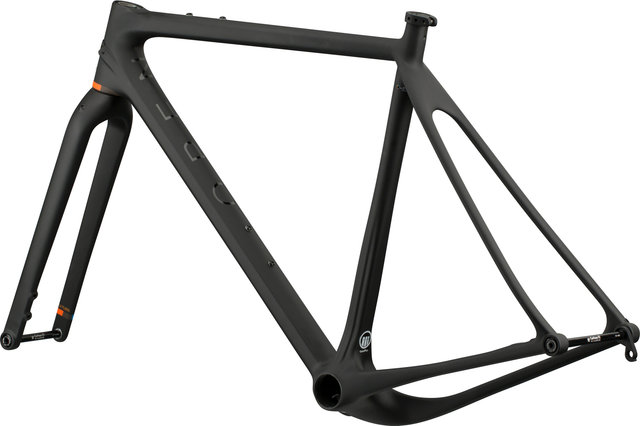

The OPEN U.P.P.E.R. frameset is made of super-light carbon and impresses with versatility on gravel tracks or on the road. Compared to its relative, the U.P., it weighs about 180 g less, which contributes to further performance improvements. The geometry is based on endurance road bikes and features a longer reach and a pleasant degree of stiffness. This way, you can also manage long days in the saddle comfortably and efficiently. The lowered right chainstay opens up space to mount up to 2.1 inch wide tyres. But even with narrow road bike tyres, the U.P.P.E.R. is a good choice. You need a high-end bike for cyclocross races? There are no limits to your imagination with this high-performance frame and U-Turn fork combo. Thanks to internal cable routing, your shifting system remains protected from dirt and moisture.

Specifications:

Application:

Gravel

Wheel Size:

27.5" (650B), 28"

Size:

S, M, L, XL

Frame Material:

Carbon

Fork Material:

Carbon

Technical Information - Frame:

Rear Over Locknut Dimension:

142 mm

Axle Type:

12 mm thru-axle

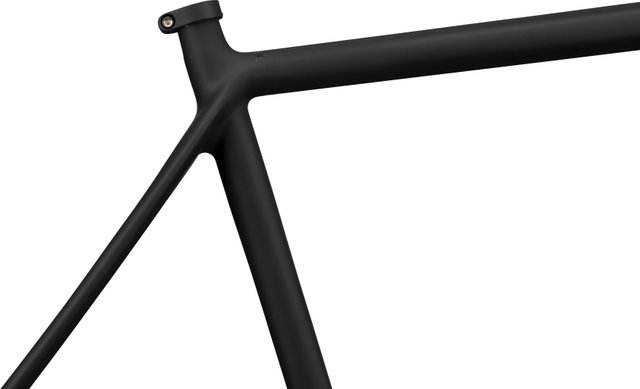

Seatpost (Ø):

27.2 mm

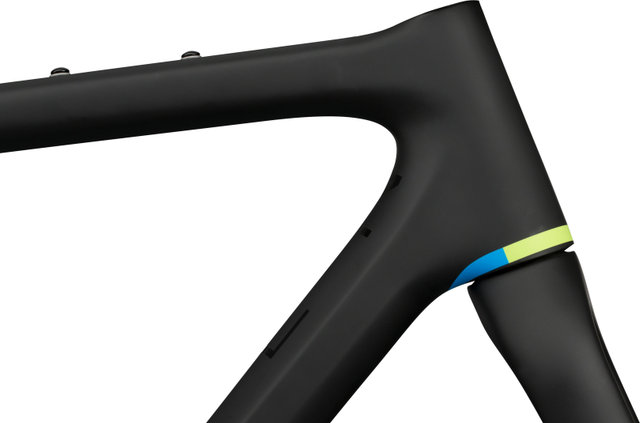

Headset:

IS42/28.6 - IS52/40 (top to bottom)

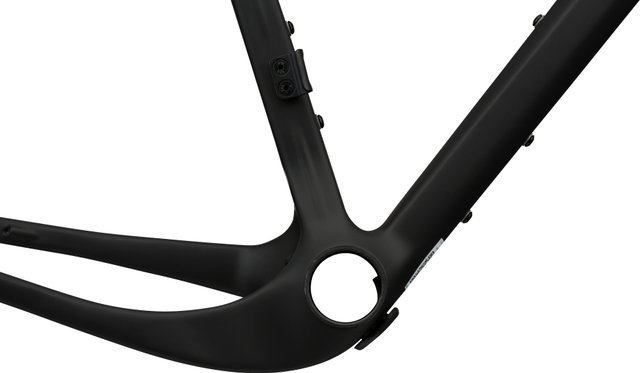

Bottom Bracket Standard:

BB386 Evo

Shell Width:

86.5 mm

Brake Mount:

flat mount

Front Derailleur Mount:

braze-on

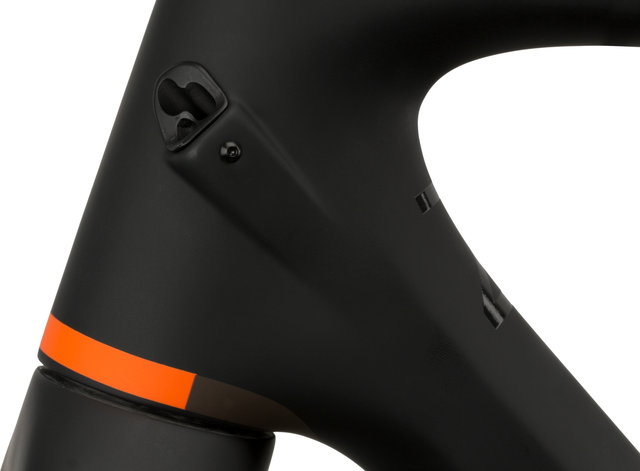

Cable Routing:

internal, mechanical / electrical

Bottle Cage Mounts:

3

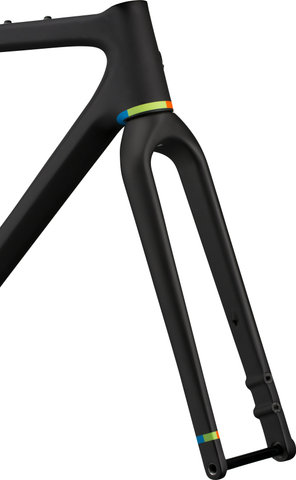

Technical Information - Fork:

Steerer Tube:

1 1/8" - 1.5" tapered

Axle Type:

12 x 100 mm thru-axle

Brake Mount:

flat mount

Offset:

50 mm

Axle to Crown:

395 mm

Steerer Tube Material:

Carbon

Blade Material:

Carbon

Approved For:

Rotor Size (max.):

160 mm (front wheel only 160 mm, for Shimano/SRAM: use calliper without adapter with 30 mm screws, for Campagnolo: use 140 mm calliper with 30 mm screws; rear wheel also 140 mm)

Tyre Size (max.):

27.5 x 2.1" , 40-622 (700x40c)

Chainrings:

1-speed, 2-speed

Chainring Size (max.):

1x 50 T, 1x 46 T (SRAM), 2x 50-36 T

Features:

• ultra light, versatile carbon frameset for gravel and road
• internal cable routing
• up to 2.1 inch tyre clearance

Geometry:

S:

Recommended Height:

157 cm - 170 cm

Stack:

522 mm

Reach:

365 mm

Top Tube Length:

528 mm

Seat Tube Length:

520 mm

Head tube angle:

69.5°

Seat tube angle:

72.5°

Chainstay Length:

420 mm

BB Drop:

70 mm

Head Tube Length:

105 mm

Wheelbase:

1002 mm

Standover Height:

743 mm

M:

Recommended Height:

168 cm - 180 cm

Stack:

551 mm

Reach:

376 mm

Top Tube Length:

549 mm

Seat Tube Length:

540 mm

Head tube angle:

71.0°

Seat tube angle:

72.5°

Chainstay Length:

420 mm

BB Drop:

70 mm

Head Tube Length:

130 mm

Wheelbase:

1008 mm

Standover Height:

767 mm

L:

Recommended Height:

178 cm - 191 cm

Stack:

580 mm

Reach:

387 mm

Top Tube Length:

570 mm

Seat Tube Length:

560 mm

Head tube angle:

72.5°

Seat tube angle:

72.5°

Chainstay Length:

420 mm

BB Drop:

70 mm

Head Tube Length:

155 mm

Wheelbase:

1014 mm

Standover Height:

791 mm

XL:

Recommended Height:

188 cm - 201 cm

Stack:

604 mm

Reach:

401 mm

Top Tube Length:

591 mm

Seat Tube Length:

580 mm

Head tube angle:

72.5°

Seat tube angle:

72.5°

Chainstay Length:

420 mm

BB Drop:

70 mm

Head Tube Length:

180 mm

Wheelbase:

1032 mm

Standover Height:

815 mm

Manufacturer Number:

OPENUPPERX

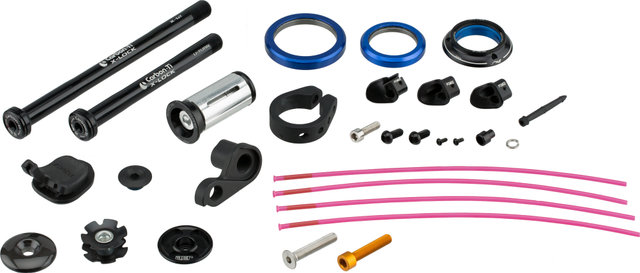

Contents:

• 1 x OPEN U.P.P.E.R. frame
• 1 x OPEN U-turn fork
• 1 x headset
• 1 x seatpost clamp
• 1 x front thru-axle
• 1 x rear thru-axle
• 2 x derailleur hangers
• 1 x front derailleur mount
• 1 x sealing set for internal cable routing
• 2 x bottle cage bolts
