ORTLIEB Back-Roller Core Pannier

The ORTLIEB Back-Roller Core pannier focuses on what matters most

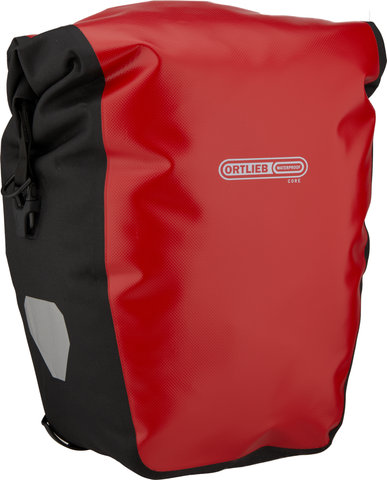

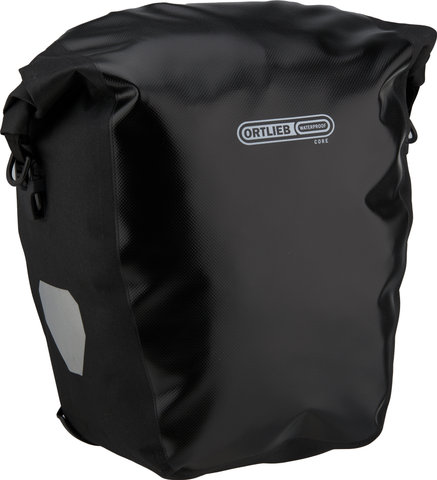

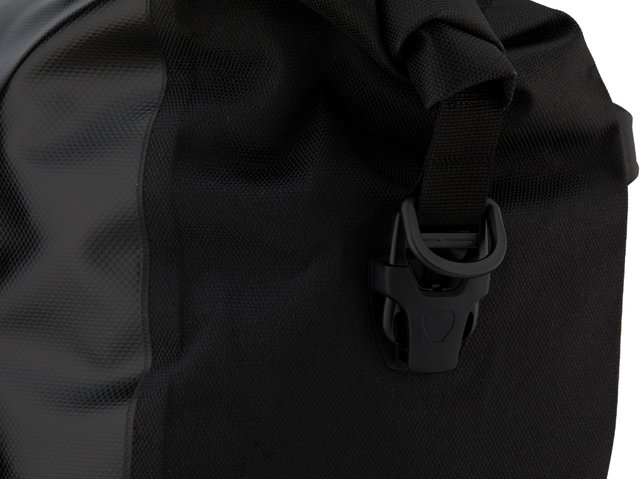

The Back-Roller Core pannier from ORTLIEB is a single waterproof rear pannier with a volume of 20 litres for use in the city or on a tour. It scores with proven functionality: Thanks to the practical roll-top fastener, you can access the contents of the bag quickly and easily. Thanks to the tool-free adjustable QL2.1 System, you can attach the bag to the pannier rack in no time at all. It does not have a pre-installed shoulder strap, so the rolled-up ends are secured directly to a buckle on the side. But don't worry: If you do need a shoulder strap, you can purchase one separately.

Specifications:

Application:

City, City & Touring

Type:

rear wheel

Compatibility:

For pannier racks with up to 16 mm tube diameter (8 mm, 10 mm and 12 mm reducers included); with optionally available hooks also up to 20 mm tube diameter

Material:

PVC-coated polyester fabric (PD620, PS490)

Protection Rating:

dust-tight, splash-proof (IP64)

Dimensions (HxWxD):

42 cm x 23 (bottom) / 32 (top) cm x 17 cm

Volume:

20 litres

Approved For:

Load Capacity (max.):

9 kg

Note from the Manufacturer:

To achieve the IP64 degree of protection (6 = dust-tight, 4 = splash-proof from all directions), the closure must be rolled up 3 to 4 times over and secured.
Taking into account wear and tear, it is recommended to protect all contact points between the bag mount system and the pannier rack or a bicycle frame with paint protection sticker(s).
In addition, the permitted load of the pannier rack must be adhered to as well as the bag's maximum load capacity.

Features:

• single waterproof rear pannier for commuting and excursions
• practical roll closure
• equipped with Quick-Lock2.1 mounting system
• made from robust PVC-coated polyester

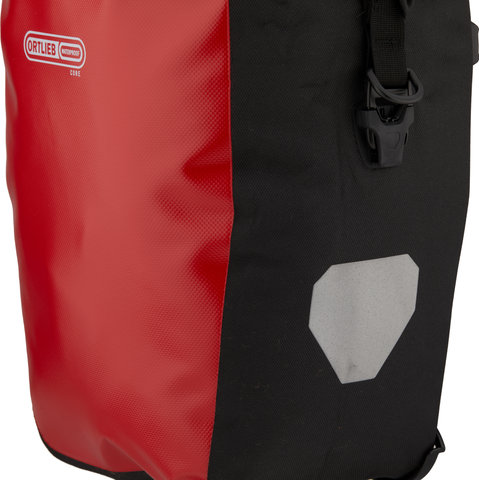

• two 3M Scotchlite reflectors on the sides
• easy-to-clean interior
• additional edge protection on the rear side with slots for optionally available back carrying system
• with slot to secure Stabilising Insert
• symmetrical, can be used on the left or right
• made in Germany

Technology:

Quick-Lock2.1 Mount System

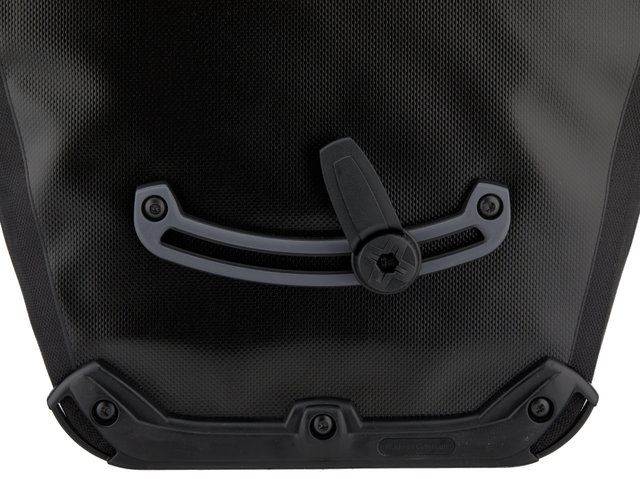

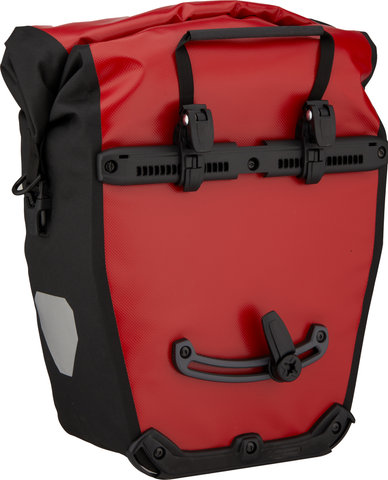

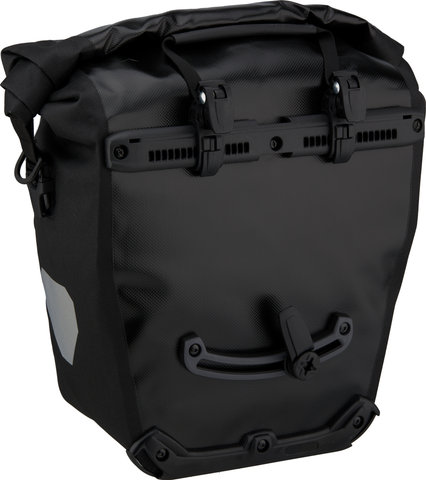

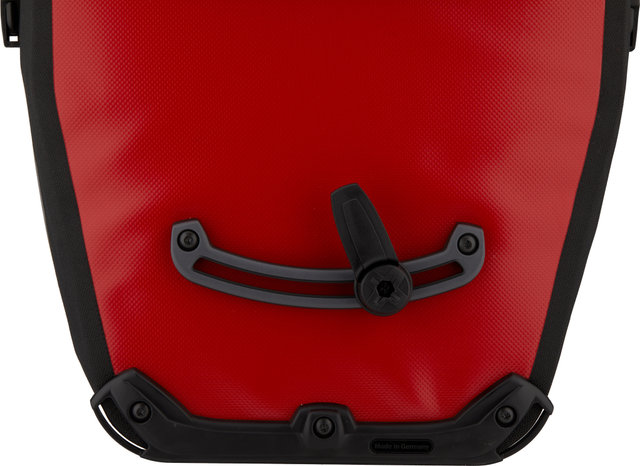

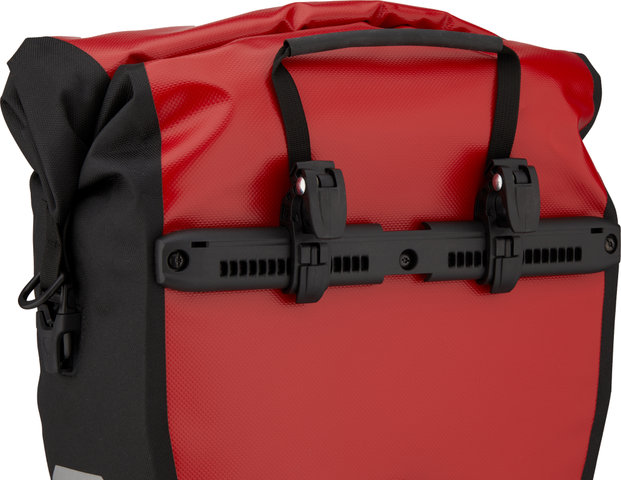

The Quick-Lock2.1 mounting system is based on the proven Quick-Lock2 system, but offers some improvements. The top rail, in which the optional anti-theft device can also be fitted, is made in one piece, which provides extra stability. Particularly flat washers are used on the inside, so that the contents of the bag are hardly affected by them. The bag handle serves as a latch: If you lift the handle, the hooks open, if you let go, they close. The reducers for different tube diameters are pushed in sideways and thus remain securely in place, which covers diameters from 8 to 16 mm. For pannier racks with larger tube diameters of 18 or 20 mm, as are sometimes installed on e-bikes, the upper hook can simply be replaced. The two-component plastic with anti-scratch function, which is used for the lower rail in the form of a semi-ellipse, ensures soft contact surfaces and reduces friction on the rack. The lower hook can be variably adjusted and turned in 15-degree increments. It is easy to use: No tools are required for adjusting the hooks.

Anti-Scratch
Anti-scratch system that protects the lower hook rail and Quick-Lock hooks from damage.

Manufacturer Numbers:

black:

F5005

red-black:

F5006

Contents:

• 1 x ORTLIEB Back-Roller Core pannier

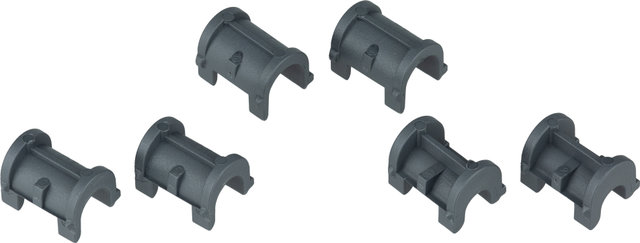

• 2 x 8 mm reducers
• 2 x 10 mm reducers
• 2 x 12 mm reducers

Order Together:

Optional accessories:

• carrying strap
• QL2.1 Hook 18 mm with adjustable handle
• QL2.1 Hook 20 mm with adjustable handle
• QL2 / QL2.1 anti-theft device
• Mesh Pocket
• Outer Pocket S
• Bike Pannier back carrying system
• Packing Cubes compartment system
• Pannier Stabilising Insert
