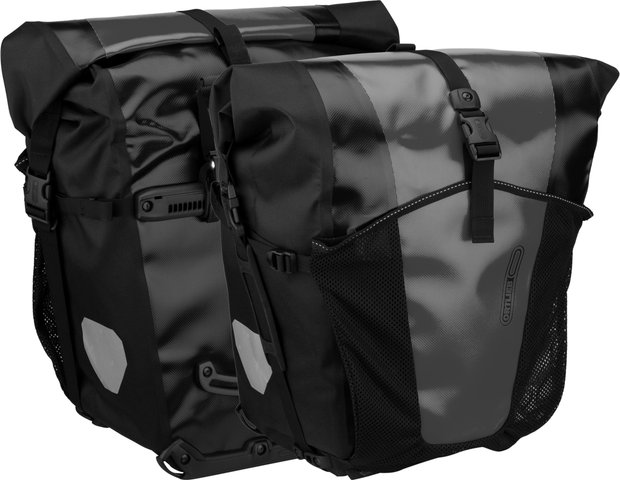

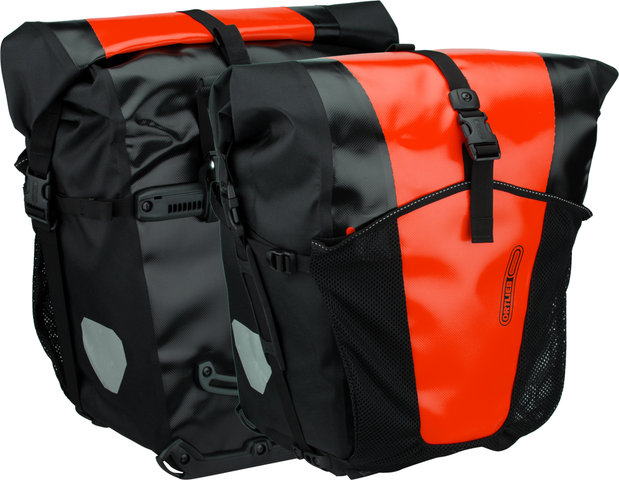

ORTLIEB Back-Roller XL Panniers

The Back-Roller XL Pannier Bags by ORTLIEB - The XL version made of polyester

The waterproof ORTLIEB Back-Roller XL panniers are made of PVC-coated polyester fabric, and have enough space for every one of your essentials. They complement the classic ORTLIEB Back-Roller Plus CR Panniers with almost twice as much volume and an additional, but not waterproof, front pocket. Nevertheless, with an additional volume of four litres, you have plenty of space for items such as drinks, sunscreen or wet clothing. With the help of the Quick-Lock2.1 mounting system, you can attach the bags individually or in pairs to your pannier rack and, thanks to the shoulder straps, you can easily transport them when the bike stops.

Specifications:

Application:

City & Touring

Type:

pannier rack

Compatibility:

for pannier racks up to 16 mm diameter (8 mm, 10 mm and 12 mm reducers included)

Material:

polyester fabric, PVC coated (PD620 and PS490)

Protection Rating:

dust-tight, no dust ingress, protected against splashing water from all directions (IP64)

Dimensions (HxWxD):

45 cm x 36 cm (top) /24 cm (bottom) x 26 cm

Volume:

2 x 35 litres + 4 litres

Note from the manufacturer:

To achieve protection class IP64 (splash-proof from all directions), the closure must be rolled 3-4 times over and secured in a downwards direction.

Approved For:

Load Capacity (max.):

9 kg (per bag)

Features:

• large version of the classic ORTLIEB Back-Roller Plus CR Panniers
• PVC-coated polyester fabric (tarpaulin look) with a high-quality textile appearance
• waterproof
• extra non-waterproof front pocket for additional storage
• equipped with Quick-Lock2.1 mounting system
• can be used individually or as a pair
• large 3M™ Scotchlite™ reflectors on both sides
• D-rings on the locking plugs (for additional belt)
• shoulder strap (can also be used to strap around the bag)
• lower edges protect with slots for the carrier system
• integrated inner pocket
• easy to clean inside
• made in Germany

Manufacturer Numbers:

asphalt-black:

F5351

red-black:

F5352

sunny yellow-black:

F5354

Technology:

Quick-Lock2.1 Mount System
The Quick-Lock2.1 mounting system is based on the proven Quick-Lock2 system, but offers some improvements. The top rail, in which the optional anti-theft device can also be fitted, is made in one piece, which provides extra stability. Particularly flat washers are used on the inside, so that the contents of the bag are hardly affected by them. The bag handle serves as a latch: If you lift the handle, the hooks open, if you let go, they close. The reducers for different pipe diameters are inserted laterally and thus remain safely in place. In addition to the standard 16 mm basic hooks with 8 and 10 mm reducers, 12 mm inserts are now also included. A 20 mm reducer is also available as an option. It is suitable for racks with large tube diameter, as are sometimes mounted on e-bikes. The two-component plastic with anti-scratch function, which is used for the lower rail in the form of a semi-ellipse, ensures soft contact surfaces and reduces friction on the rack. The lower hook can be variably adjusted and turned in 15-degree increments. It is easy to use: No tools are required for adjusting the hooks.

Contents:

• 1 x pair ORTLIEB Back-Roller XL rear panniers
• 2 x ORTLIEB shoulder straps (75 cm)
• 4 x 8 mm reducers
• 4 x 10 mm reducers
• 4 x 12 mm reducers

Order Together:

Optional Accessories:

• QL2.1 Hook 20 mm with adjustable handle
• QL2 / QL2.1 anti-theft device
