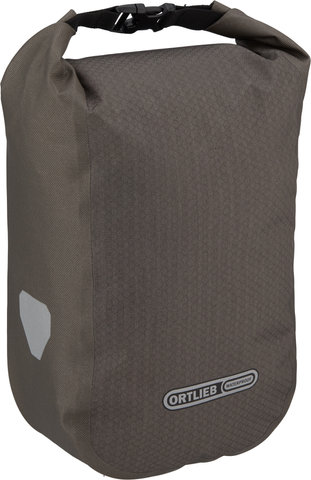

ORTLIEB Fork-Pack 5.8 L Fork Bag

The Fork-Pack from ORTLIEB with 5.8 litre volume is a fork bag with a cleverly-designed attachment system

This ORTLIEB Fork-Pack fork bag affords you 5.8 litres of additional pack volume on the fork when bikepacking. The coated nylon fabric is robust and is reliably waterproof. With the Quick-Lock S system, attaching and removing the bag can be achieved in no time at all. All you have to do first is mount the adapter plate on your fork with screw attachment or on a straight tube made of steel or aluminium with a diameter of 30 to 42 mm (e.g. a suspension fork). The internal stiffening ensures that the bag remains stable even when half-full or empty. It is closed with the proven roll closure. Side reflectors increase visibility in the dark.

Specifications:

Application:

City & Touring

Type:

fork bags

Mount:

Quick-Lock S

Material:

PU-coated nylon fabric (PS21R, PS33)

Protection Rating:

dust-tight, splash-proof (IP64)

Dimensions (HxWxD):

30.5 cm x 19.5 cm x 13 cm

Volume:

5.8 litres

Approved For:

Load Capacity (max.):

3 kg

Compatibility

• forks with 2-3 screw mounts (with 3 mounts: 65 mm distance, with 2 mounts: 65 mm / 130 mm distance)
• forks made of steel or aluminium with 1 screw mount
• Tubes made of steel or aluminium with constant diameter between 30 and 42 mm

Note from the Manufacturer:

Warning: Not suitable for mounting on carbon forks without braze-on eyelet (thread) or conical tubes.
To achieve the IP64 degree of protection (6 = dust-tight, 4 = splash-proof from all directions), the closure must be rolled up 3 to 4 times over.
If the product is completely submerged, water can penetrate through the closure.

Features:

• lightweight and waterproof

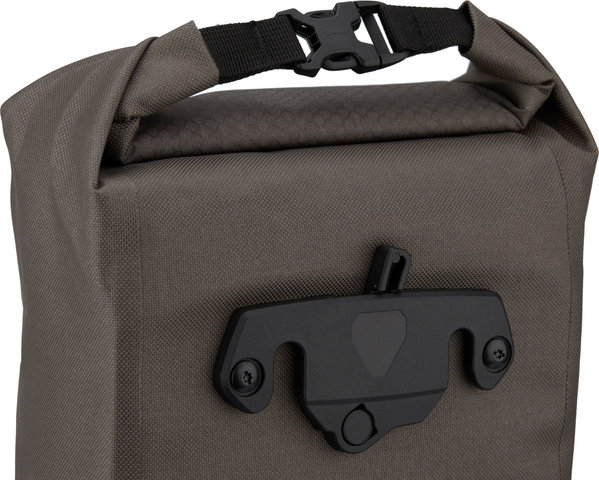

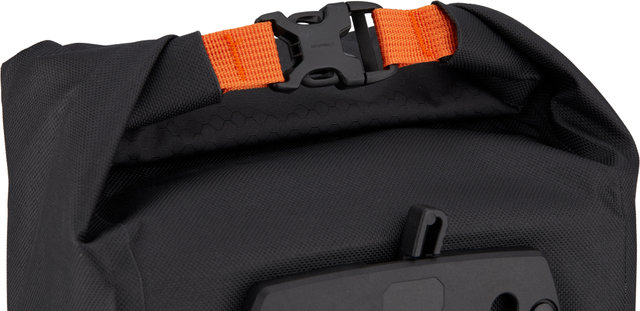

• roll closure

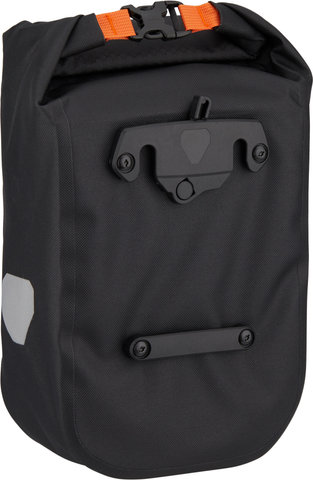

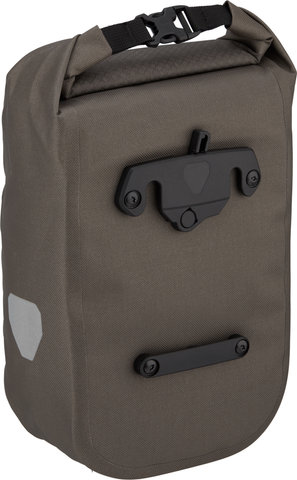

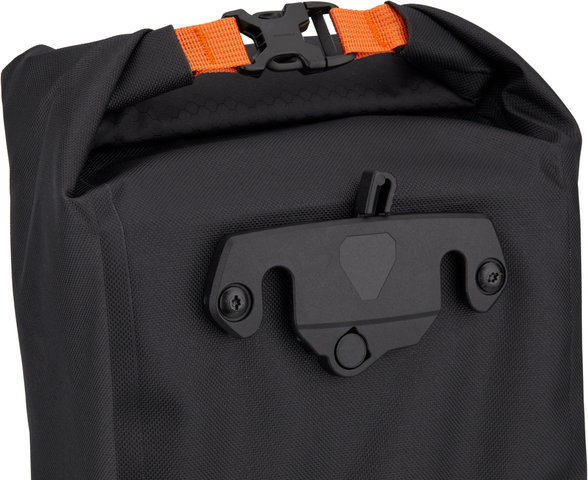

• Quick-Lock S adapter system for easy removal and attachment of the bag (adapter remains on the fork)
• retains its shape due to internal stiffening
• smooth bag back with flat retaining elements

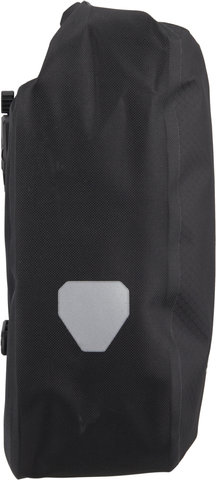

• reflective logo and reflectors on the sides
• PVC-free
• made in Germany

Manufacturer Number:

F9992

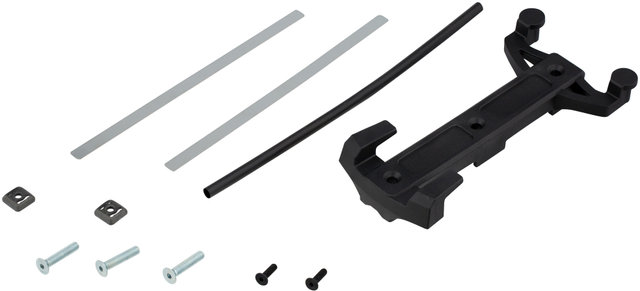

Contents:

• 1 x ORTLIEB Fork-Pack bag
• 1 x ORTLIEB Quick-Lock S adapter plate
• 3 x M5x25 bolts
• 2 x M4x14 bolts
• 2 x metal straps
• 1 x shrink tubes
• 2 x M4 mounting plates

Order Together:

Optional Accessories:

• Adapter 45° to 30° for adjusting the mounting angle
• QLS mounting set for using on another bike
