ORTLIEB Gravel-Pack QL2.1 Panniers - 2024 Model

The Gravel-Pack panniers from ORTLIEB with QL2.1 system are at home off the beaten track

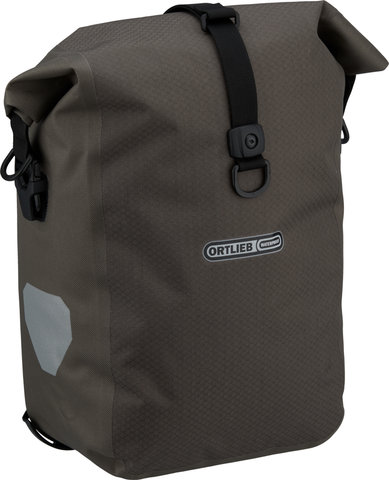

The waterproof ORTLIEB Gravel-Pack QL2.1 panniers each offer you 14.5 litres of storage space for luggage or supplies when bikepacking. Two locking hooks ensure that the bags do not become unstable even on bumpy ground. The proven Quick-Lock2.1 system, which can be adjusted without any tools, allows easy attachment to front or pannier racks. Mounted on front racks, the bags provide a low centre of gravity and unrestricted manoeuvrability on unpaved roads. The lightweight nylon fabric has a waterproof coating and is robust. If you are planning a multi-day tour over rough terrain, the Gravel-Pack panniers are the ideal solution.

Specifications:

Application:

City & Touring, Gravel

Type:

front wheel

Compatibility:

for pannier racks up to 16 mm diameter (8 mm, 10 mm and 12 mm reducers included)

Material:

nylon fabric, PU-coated (PS21R, PS33)

Protection Rating:

dust-tight, no dust ingress, protected against splashing water from all directions (IP64)

Dimensions (HxWxD):

37 cm x 26 cm x 16 cm

Volume:

2 x 14.5 litres

Approved For:

Load Capacity (max.):

9 kg (per bag)

Note from the Manufacturer:

To achieve the IP64 degree of protection (6 = dust-tight, 4 = splash-proof from all directions), the closure must be rolled up 3 to 4 times over.
Taking into account wear and tear, it is recommended to protect all contact points between the bag mount system and the pannier rack or a bicycle frame with paint protection sticker(s).
In addition, the permitted load of the pannier rack must be adhered to as well as the bag's maximum load capacity.

Features:

• waterproof panniers with a volume of 14.5 litres each and double security
• with Quick-Lock2.1 mounting system
• upper QL hook and lower hook can be adjusted without any tools
• two locking hooks at the bottom for better attachment over rough terrain
• automatically closing QL2.1 hooks
• reducers and lower hook rail with anti-scratch system
• reflectors on both sides
• can be used on the left or right due to its symmetrical shape
• mounting on a front or rear rack
• light, robust material
• edge protector with slots for back harness system (not included)
• PVC-free
• made in Germany

Technology:

Quick-Lock2.1 Mount System

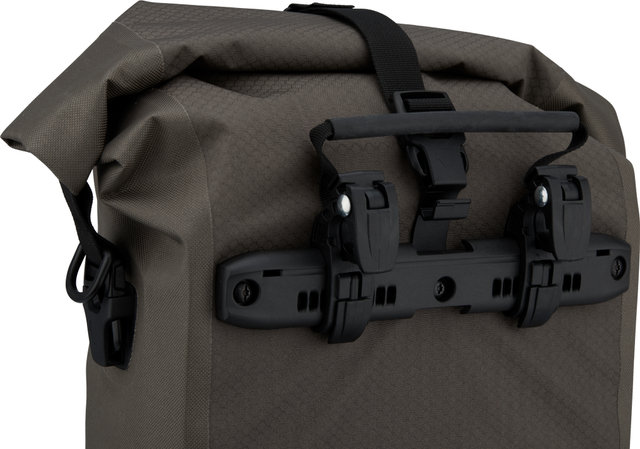

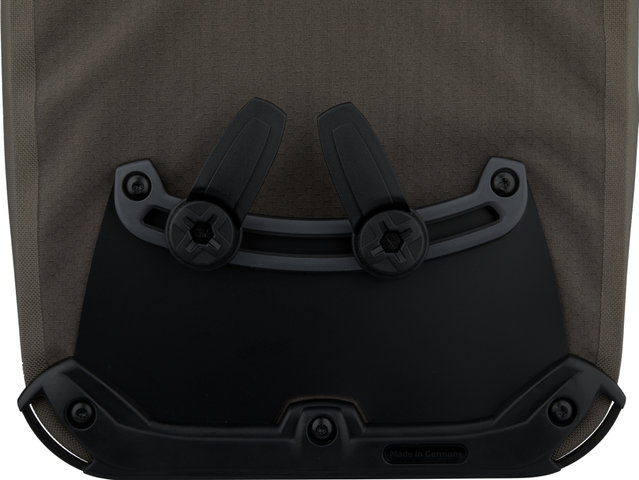

The Quick-Lock2.1 mounting system is based on the proven Quick-Lock2 system, but offers some improvements. The top rail, in which the optional anti-theft device can also be fitted, is made in one piece, which provides extra stability. Particularly flat washers are used on the inside, so that the contents of the bag are hardly affected by them. The bag handle serves as a latch: If you lift the handle, the hooks open, if you let go, they close. The reducers for different tube diameters are pushed in sideways and thus remain securely in place, which covers diameters from 8 to 16 mm. For pannier racks with larger tube diameters of 18 or 20 mm, as are sometimes installed on e-bikes, the upper hook can simply be replaced. The two-component plastic with anti-scratch function, which is used for the lower rail in the form of a semi-ellipse, ensures soft contact surfaces and reduces friction on the rack. The lower hook can be variably adjusted and turned in 15-degree increments. It is easy to use: No tools are required for adjusting the hooks.

Anti-Scratch
Anti-scratch system that protects the lower hook rail and Quick-Lock hooks from damage.

Manufacturer Number:

dark sand:

F9984

Contents:

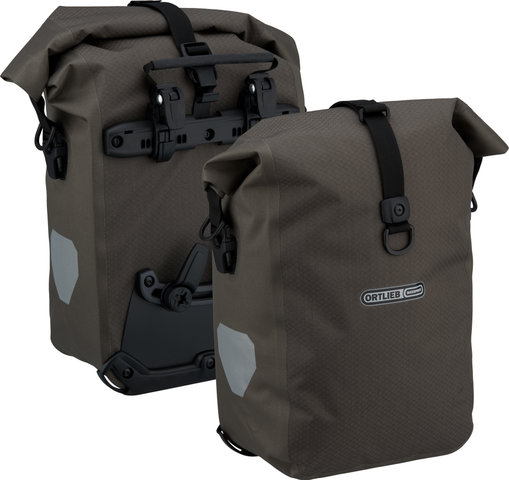

• 1 x pair ORTLIEB Gravel-Pack panniers

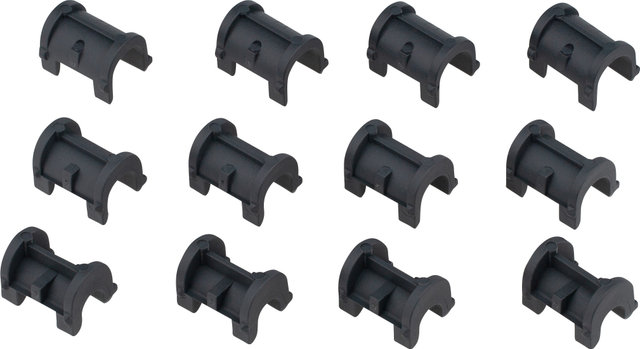

• 4 x 8 mm reducers
• 4 x 10 mm reducers
• 4 x 12 mm reducers

Order Together:

Optional accessories:

• QL2.1 Hook 18 mm with adjustable handle
• QL2.1 Hook 20 mm with adjustable handle
• QL2 / QL2.1 anti-theft device
• carrying strap
• Bike Pannier back carrying system
