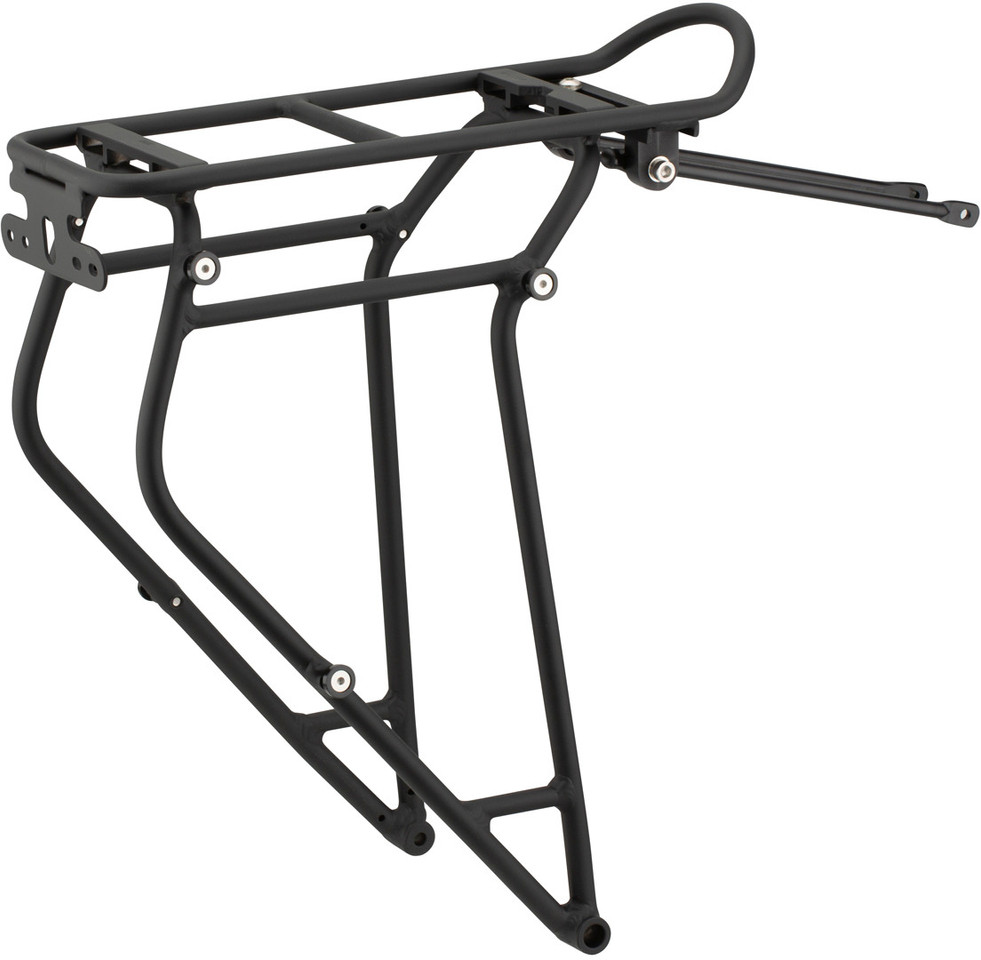

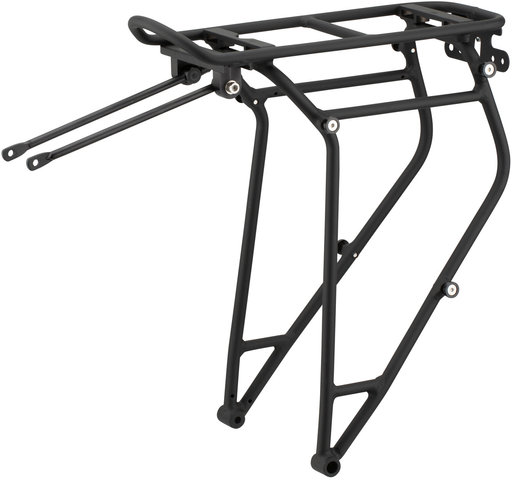

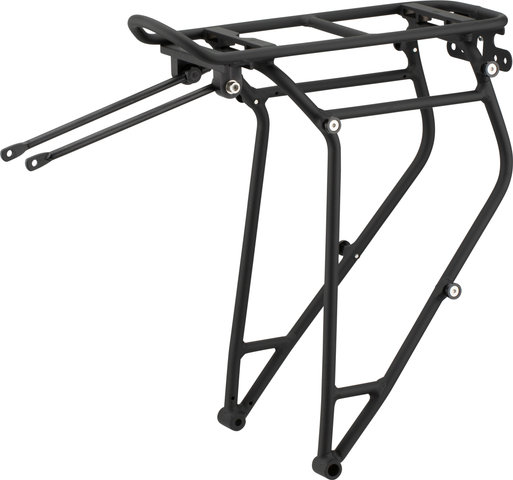

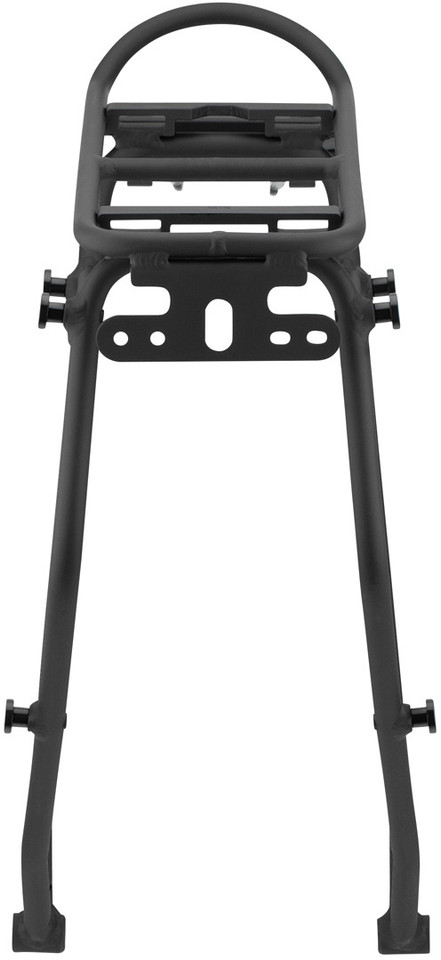

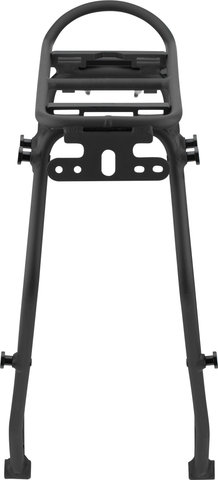

ORTLIEB Rack Three Rack with QL3 / QL3.1 Mount

The Rack Three rack with QL3 / QL3.1 mounts by ORTLIEB is not choosy

The ORTLIEB Rack Three rack with QL3 / QL3.1 mounting is a real all-rounder that can accommodate all ORTLIEB mounting systems - plus basket. The rack has mounting elements for the ORTLIEB QL3 / QL3.1 system, so you can attach your Single-Bag directly without taking any further precautions. But the Rack Three is also compatible with the QL2 / QL2.1 system and if you still own a pannier with QL1 system, there is also a place to hang for its hooks. The QL3 / QL3.1 snap buttons can be removed if you do not need them, this makes it easier to attach QL2 / QL2.1 bags. The double railing gives you the possibility to mount both side panniers and a basket or trunk bag on top. So the Rack Three is not only suitable for the daily ride to work or shopping, but also for the big bike ride. You can't get more out of a rack!

Specifications:

Application:

City & Touring

Upper Mount:

rear triangle braze-ons

Lower Mount:

stays mount at dropouts

Wheel Size:

26" , 28"

Rail Diameter:

10 mm (horizontal), 12 mm (vertical)

Payload (max.):

30 kg

Compatibility:

Trunk-Bag, bags with QL1, QL2, QL2.1, QL3, QL3.1 mount, MIK system bags

Technical Information:

Material:

Aluminium

Features:

• mounting option for all ORTLIEB mounting systems
• second attachment level for simultaneous use of panniers and basket or trunk bag
• with attachment possibility for hooks
• locking buttons for direct mounting of bags with QL3 / QL3.1 system
• possibility of dismantling unneeded QL3 / QL3.1 mounting brackets
• mounting option for rear light (not included)
• contact surface width 100 mm
• maximum load of the QL3 / QL3.1 mounting brackets per side 9 kg

Manufacturer Number:

F78103

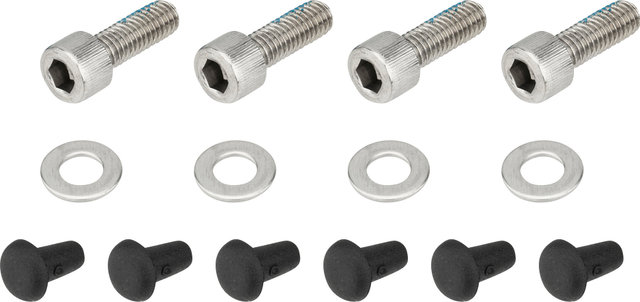

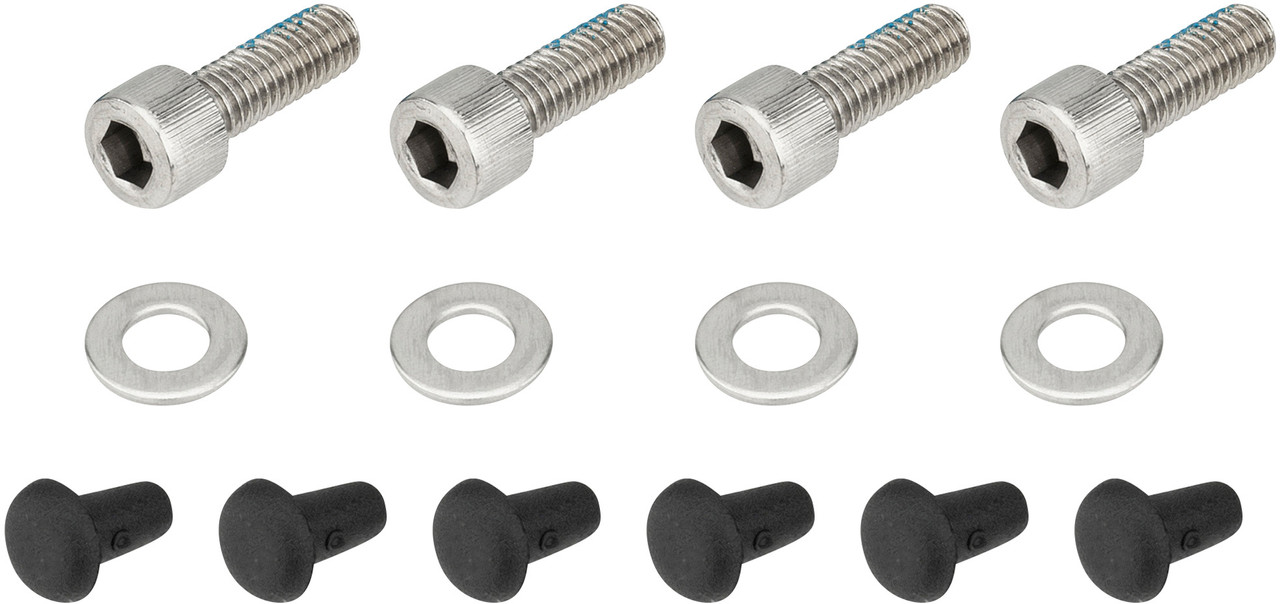

Contents:

• 1 x ORTLIEB Rack Three rack
• 6 x ORTLIEB bolts, M5 x 25 mm
• 4 x ORTLIEB bolts, M6 x 12 mm
• 4 x ORTLIEB bolts, M5 x 14 mm
• 6 x ORTLIEB snap buttons
• 4 x ORTLIEB washers, 6.4 mm
• 4 x ORTLIEB washers, 5.2 mm
• 6 x ORTLIEB blind plugs
