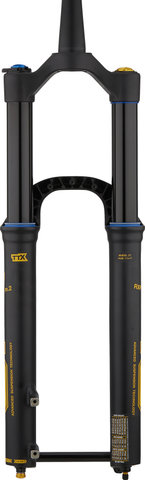

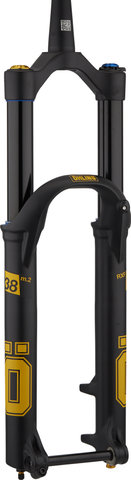

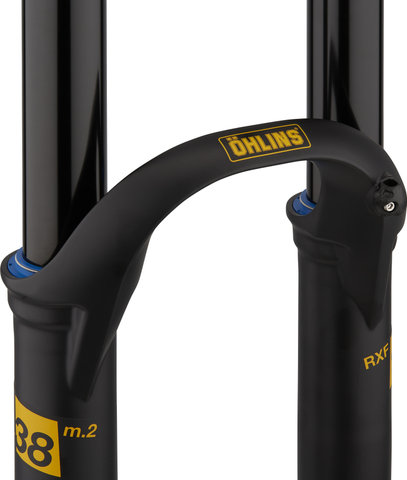

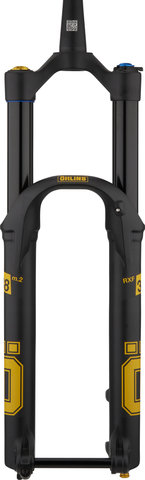

ÖHLINS RXF38 m.2 Air 29" Boost Suspension Fork

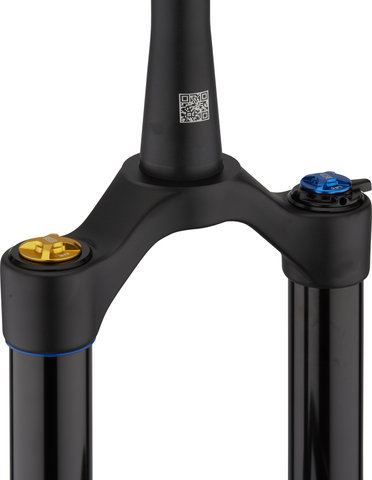

The ÖHLINS RXF38 m.2 Air suspension fork is suitable for 29" trail and enduro bikes with Boost over locknut dimension and is equipped with TTX-18 damping and an air suspension with three air chambers. It offers uncomplicated adjustment of compression and rebound damping and a climbing mode for long climbs. This variant of the RXF38 has a rather slim triple clamp around the stem. If your frame has a thicker down tube and head tube, the RXF38 m.2 Air L with a wider triple clamp could blend in even better.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain, Enduro

Wheel Size:

29"

Suspension Type:

air

Travel:

160 mm, 170 mm, 180 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Axle Type:

thru-axle

Wheel Standard:

15 x 110 mm (Boost)

Brake Mount:

disc PM8 (direct mount 200 mm)

Technical Information:

Offset:

44 mm, 51 mm

Steerer Tube Length:

230 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Over Locknut Dimension:

110 mm

Stanchion Tube Diameter:

38 mm

Steerer Tube Material:

Aluminium

Crown Material:

Aluminium

Stanchion Tube Material:

Aluminium

Lower Tube Material:

Aluminium

Adjustment Options:

Compression:

Low-speed (15 positions), high-speed (3 positions)

Rebound:

low speed (15 positions)

Suspension Stiffness:

air pressure adjust

Remote:

no

Travel Adjustment:

no

Approved For:

Tyre Size (max.):

29 x 2.6"

Rotor Size (max.):

220 mm

Weight Limit:

120 kg (rider weight)

Features:

• based on the DH38 downhill fork that proved successful in the World Cup
• detachable for maintenance and repair

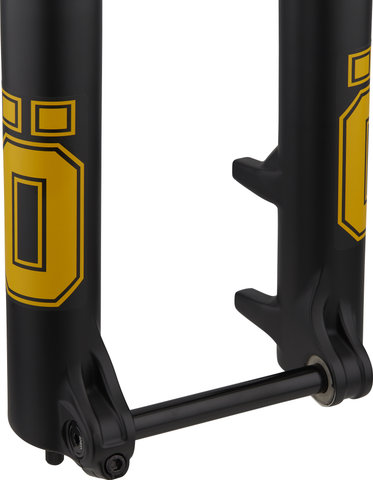

• floating thru-axle for minimum friction
• TTX 18 cartridge with 18 mm piston for optimum response and feedback
• air spring with three air chambers and two pistons for uncomplicated fine tuning
• excellent control across different surfaces
• with " Climb Mode" for efficient pedalling uphill

Models:

160 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

160 mm

Offset:

44 mm

Axle to Crown:

573 mm

Manufacturer Number:

FGMTB-3816-2210

170 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

170 mm

Offset:

44 mm

Axle to Crown:

583 mm

Manufacturer Number:

FGMTB-3817-2210

170 mm / 1.5 tapered / 15 x 110 mm / 51 mm:

Travel:

170 mm

Offset:

51 mm

Axle to Crown:

583 mm

Manufacturer Number:

FGMTB-3817-2211

180 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

180 mm

Offset:

44 mm

Axle to Crown:

593 mm

Manufacturer Number:

FGMTB-3818-2210

Contents:

• 1 x ÖHLINS RXF38 m.2 Air 29" Boost suspension fork
• 1 x ÖHLINS thru-axle
• 1 x threaded wheel clamp
