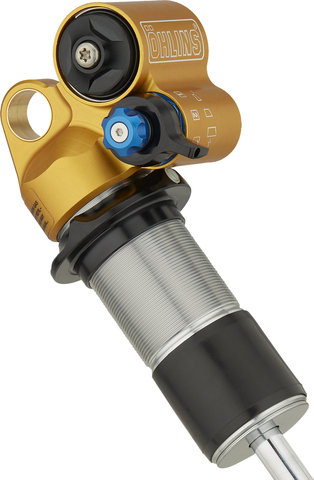

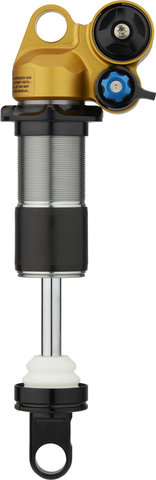

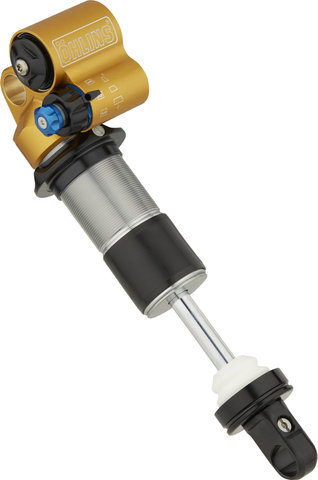

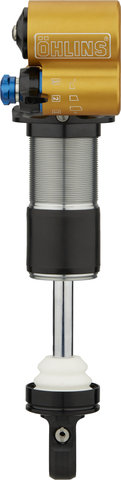

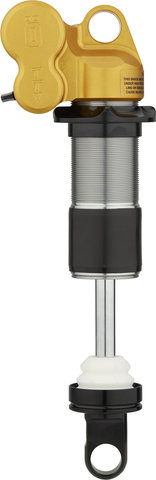

ÖHLINS TTX 22 M Coil Shock

The robust ÖHLINS TTX 22 M steel spring shock is suitable for a versatile range of use from all-mountain to downhill, and impresses with control, smooth performance and sensitive response.

Specifications:

Application:

All Mountain, Enduro, Downhill

Suspension Type:

coil spring

Size x Stroke:

210 x 50 mm, 210 x 55 mm, 230 x 57.5 mm, 230 x 60 mm, 230 x 65 mm, 250 x 70 mm, 250 x 75 mm

Technical Information:

Damping System:

Twin Tube (TTX)

Bushing Material:

Aluminium

Body Material:

Aluminium

Shaft Material:

stainless steel

Adjustment Options:

Compression:

High-Speed (3 positions), Low-Speed (16 positions)

Rebound:

Yes (7 positions)

Features:

• completely removable for service and repairs
• TTX Twin-Tube design for optimum pressure ratios
• made of hard anodised aluminium
• space-saving design

Manufacturer Numbers:

210 mm x 50 mm:

MTBM 1892

210 mm x 55 mm:

MTBM 1893

230 mm x 57.5 mm:

MTBM 1894

230 mm x 60 mm:

MTBM 1895

230 mm x 65 mm:

MTBM 1896

250 mm x 70 mm:

MTBM 1898

250 mm x 75 mm:

MTBM 1899

Contents:

• 1 x ÖHLINS TTX 22 M Coil Shock

Order Together:

Depending on the selected size:

• ÖHLINS Steel Coil for TTX 22 M up to 57 mm stroke
• ÖHLINS Steel Coil for TTX 22 M for 58 - 67 mm stroke
• ÖHLINS Steel Coil for TTX 22 M for 68 - 76 mm stroke
