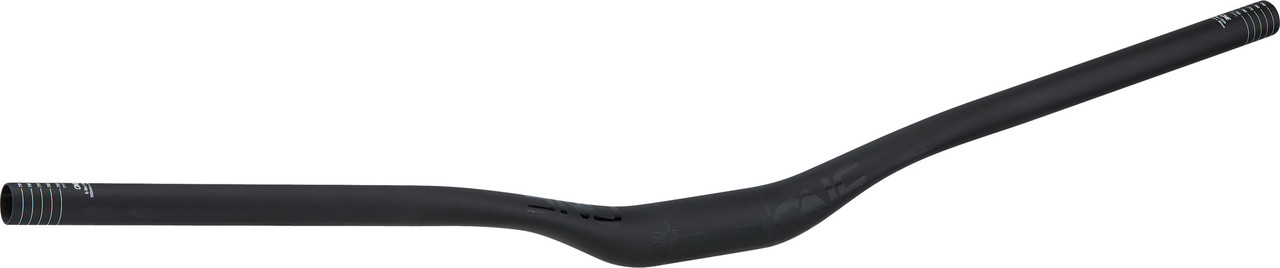

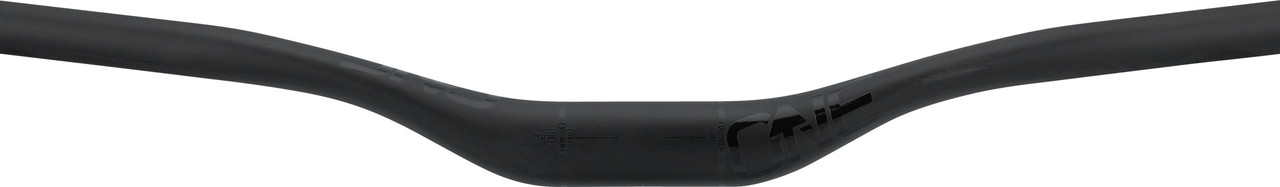

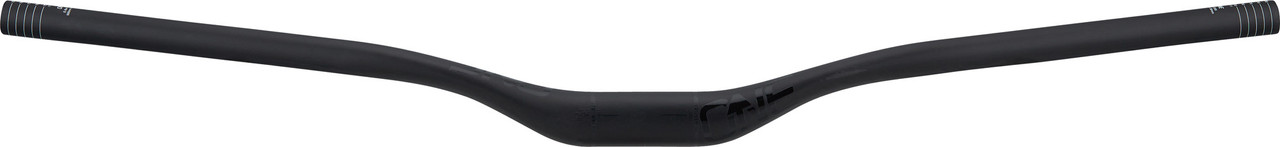

OneUp Components 35 mm Carbon E-Bar 35 Riser Handlebars

OneUp Components Carbon E-Bar 35 mm Rise Handlebars - More comfort on long e-bike tours

The OneUp Components E-Bar handlebars are made of carbon and feature a 35 mm rise, 8° backsweep and a 35 mm stem clamp. They help you achieve more comfort on the E-MTB due to the oval profile between the clamp area and the handlebar ends that measures only 20 mm at the narrowest point. This makes ithe Carbon E-Bar much more vertically compliant and vibration-damping than conventional carbon handlebars. This relieves strain on your arms and prevents premature fatigue. Arm pump is thus avoided, which is especially important on long tours such as with e-bikes. At the same time, you can always rely on the lateral stiffness and responsiveness of the handlebars. The Carbon E-bar also has openings and grooves for internal cable routing for Shimano STEPS e-bike computers or remote switches, which helps to tidy up the cockpit.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked E-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain, Cross Country, Enduro

Width:

800 mm

Stem Clamp:

35.0 mm

Rise:

35 mm

Technical Information:

Backsweep:

8°

Upsweep:

5°

Shortened Width (min.):

750 mm

Material:

Carbon

Compatibility:

• Shimano STEPS and other e-bike remote switches
• plug diameter smaller than 6.5 mm
• min. 650 mm cable length
• cable must be able to be unplugged from the remote switch
• stem compatible with the central cable opening on the handlebars

Note from the manufacturer:

• Cables from Specialized, Bosch or Rocky Mountain remote controllers cannot be routed internally through the Carbon E-Bar.
• The Orbea Rise has no handlebar-mounted display as it connects to the smartphone. It has an EW-EN100 junction box and a detachable EW-SD50 cable.
• If you cannot disconnect the cable from your Shimano remote shifter, you must buy a new Shimano switch with a detachable cable with a minimum cable length of 700 mm. You can also use the EW-JC200 2-port junction box and an EW-SD50 cable extension.
• Handlebar grips with an outer clamp are not compatible with the Carbon E-Bar.
• Bar ends are not compatible with the Carbon E-Bar.

Features:

• 20% more compliant in vertical direction than other carbon handlebars
• oval profile between clamping area and handlebar ends
• 20 mm diameter at the thinnest point
• more vibration damping, therefore more comfort and less arm fatigue on long tours
• arm pump is prevented
• lateral stiffness and load capacity for optimal steering control

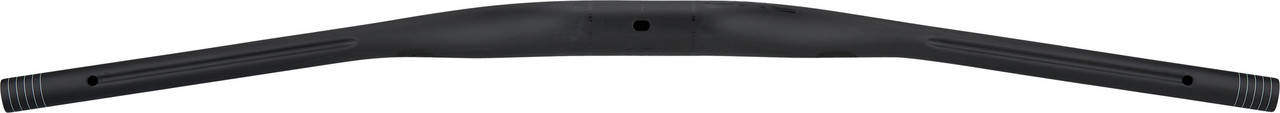

• 6.5 mm openings in the centre and at the handlebar ends for internal routing of Shimano STEPS and other remote control cables
• grooves for clean cable routing underneath the handlebars
• tested according to Zedler E-MTB Advanced Plus and international DH standard

Manufacturer Number:

1C0702

Contents:

• 1 x OneUp Components 35 mm Carbon E-Bar 35 Riser handlebars
