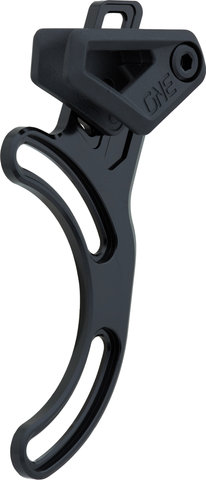

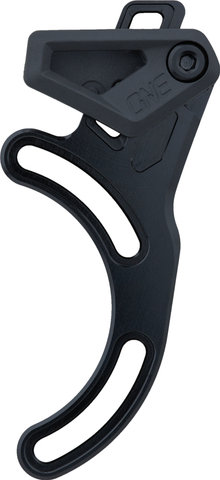

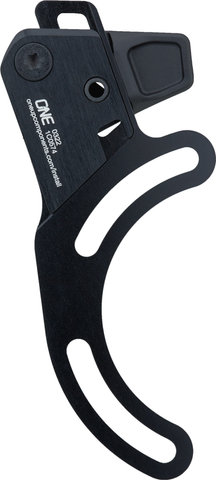

OneUp Components Bosch E-Chainguide

OneUp Components Bosch E-Chainguide - For e-bikes with Bosch motors

OneUp Components has developed the E-Chainguide for E-MTBs with Bosch motors. It helps you prevent the chain from falling off even on rough ground. The chain guide can be easily mounted directly on the motor with a 4 mm hex key, even without removing the crank. Chainrings from 32 to 38 teeth are compatible. The chainline can be adjusted by up to 6 mm via spacers. The upper part of the guide can be removed without tools, giving you easy access to your chain. The model also scores with its low weight, which is due to the combination of aluminium backplate and composite top guide.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain, Cross Country

Material:

aluminium (7075), composite

Mount:

ISCG 05

Chain Guide Capacity:

32 - 38 teeth

Compatibility:

Bosch

Adjustment Options:

Chainline Adjustment:

6 mm

Note from the manufacturer:

Not compatible with the 2021-model Orbea Rise aluminium frame.

Features:

• Top Guide features tool less flip
• mount without removing the cranks
• direct attachment to the Bosch motor
• install and adjust using just one tool (4 mm hex key)
• indicator (chain link image on inside of guide) for easier installation
• body made of aluminium, top guide made of fibreglass-reinforced thermoplastic
• black stainless steel screws

Manufacturer Number:

1C0698

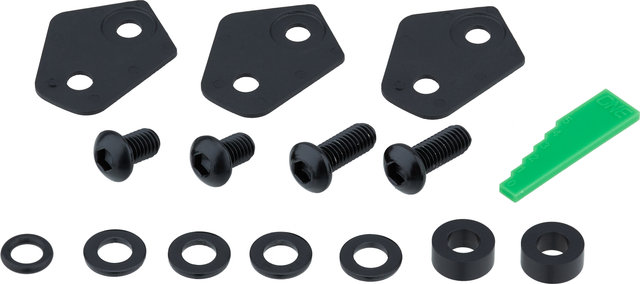

Contents:

• 1 x OneUp Components Bosch E-Chainguide
• 4 x bolts
• 3 x chainline shims
• 2 x spacers
• 1 x distance measuring tool
• 4 x washers
