OneUp Components EDC Top Cap

OneUp Components EDC Top Cap - Store the EDC Tool in your steerer tube

The EDC Top Cap from OneUp Components is required if you want to store the EDC Tool or EDC V2 Tool in the steerer tube. It is screwed into the steerer tube using the EDC Top Cap tool, which is located on the EDC Multi-Tool. There it pretensions the headset and thus takes over the function of the star nut. Before this, however, a thread must be cut into the tapered fork steerer tube. Afterwards you can store the EDC Tool. Also included are several spacers and a Steerer Plug, which keeps grime away from your steerer tube.

Specifications:

Application:

All Mountain, Enduro

Technical Information:

Top Cap Material:

Aluminium

Compatibility:

Headset Top Cap:

• 1 1/8" steer tubes

Steerer Plug:

• 1 1/8" - 1.5" tapered steerer tubes

Storing the EDC tool in the steerer tube without threading:
Important note in advance:

• Since the Top Cap is screwed into the steerer tube, the steerer tube must be threaded before installation. Only aluminium steerer tubes (not carbon or steel) are suited for storing the EDC V2 Tool.
• All compatibility information and installation instructions are exclusively from OneUp Components. Using the EDC Tool System (V2) on your bike may void the original manufacturer warranty.

Steerer tube:

Material:

Aluminium

Shape:

round 1 1/8" - 1.5" tapered

Steerer Tube Length:

183 - 230 mm

Start Nut Diameter:

24.25 mm - 24.80 mm

Minimum diameter:

22.1 mm

Recommended Steerer Tube Diameter (max.):

31.75 mm - 34.00 mm

Please make sure that your fork meets the above criteria before purchasing, as it is possible that the EDC Steerer Plug will not fit your fork. Its installation is not absolutely necessary.

Please follow OneUp Components' installation guide:


Additionally required:

• EDC Tap Kit

Manufacturer Numbers:

black:

1C0414BLK

green:

1C0414GRN

red:

1C0414RED

blue:

1C0414BLU

gold:

1C0414GLD

orange:

1C0414ORA

purple:

1C0414PUR

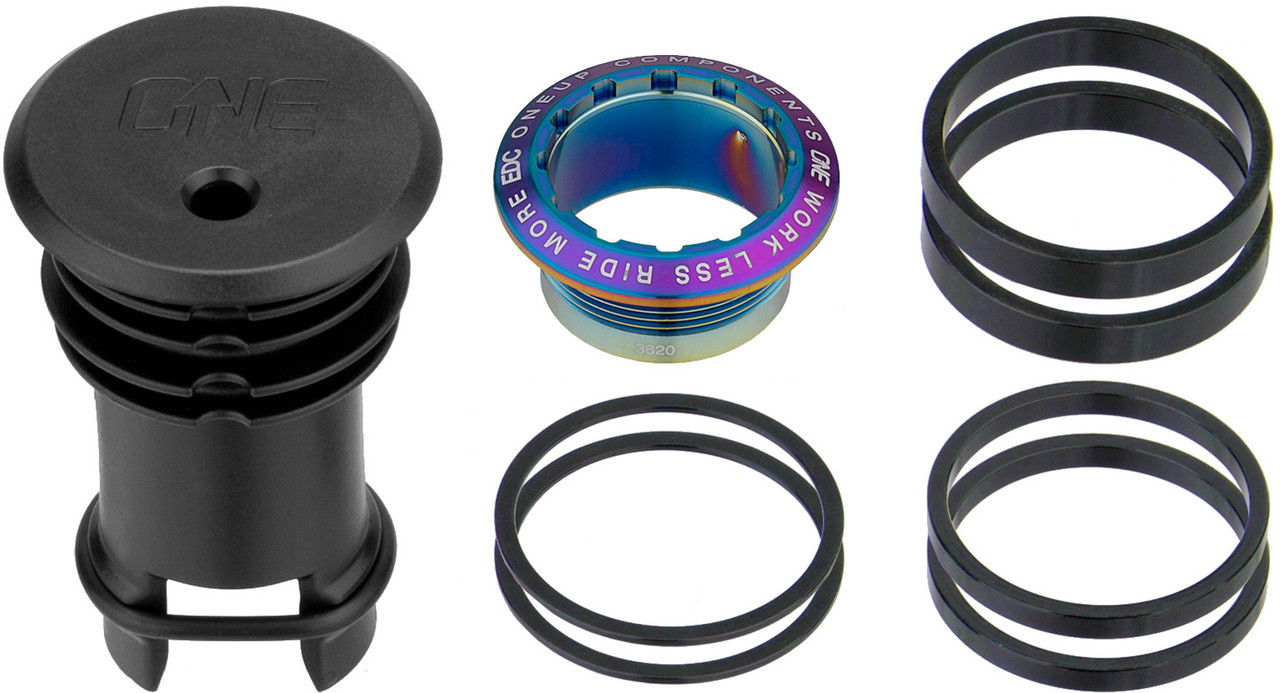

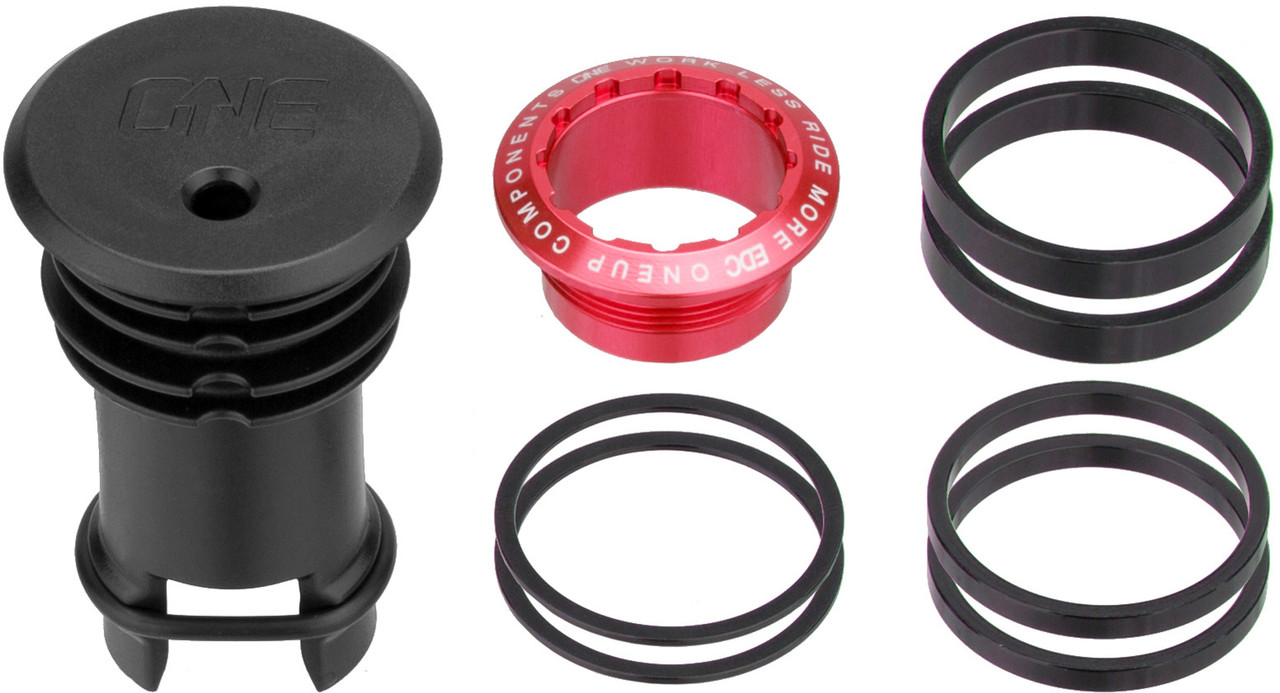

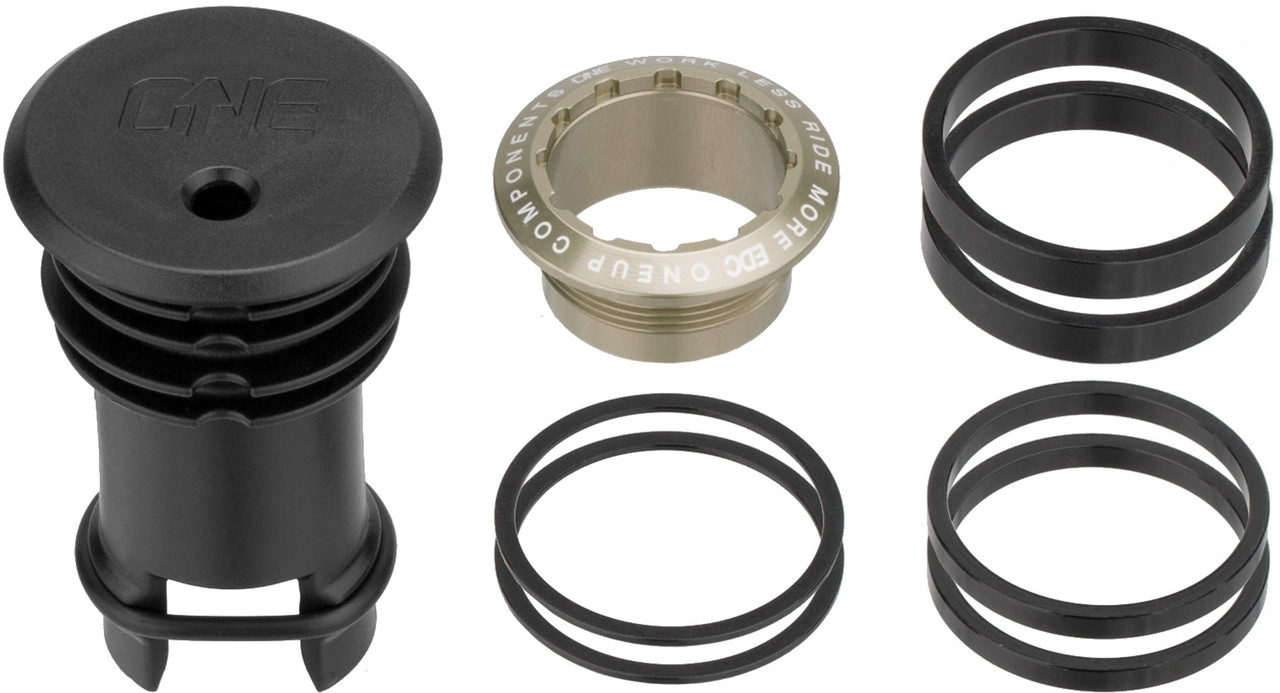

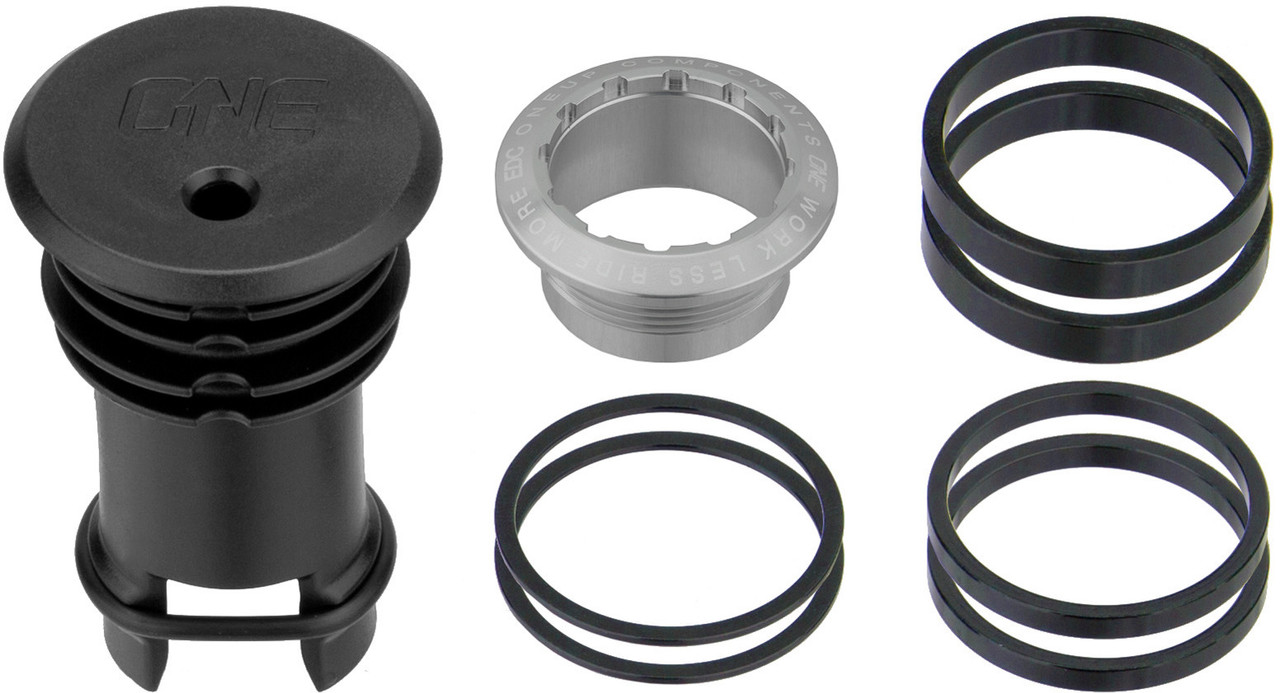

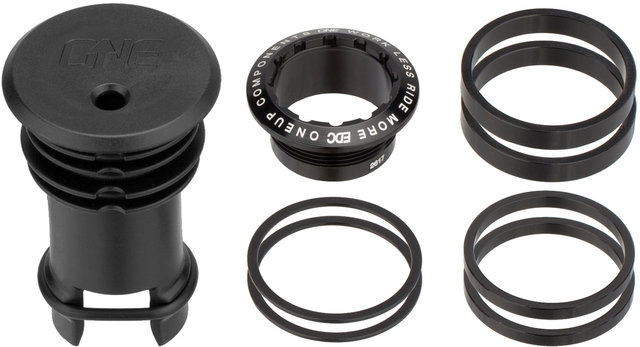

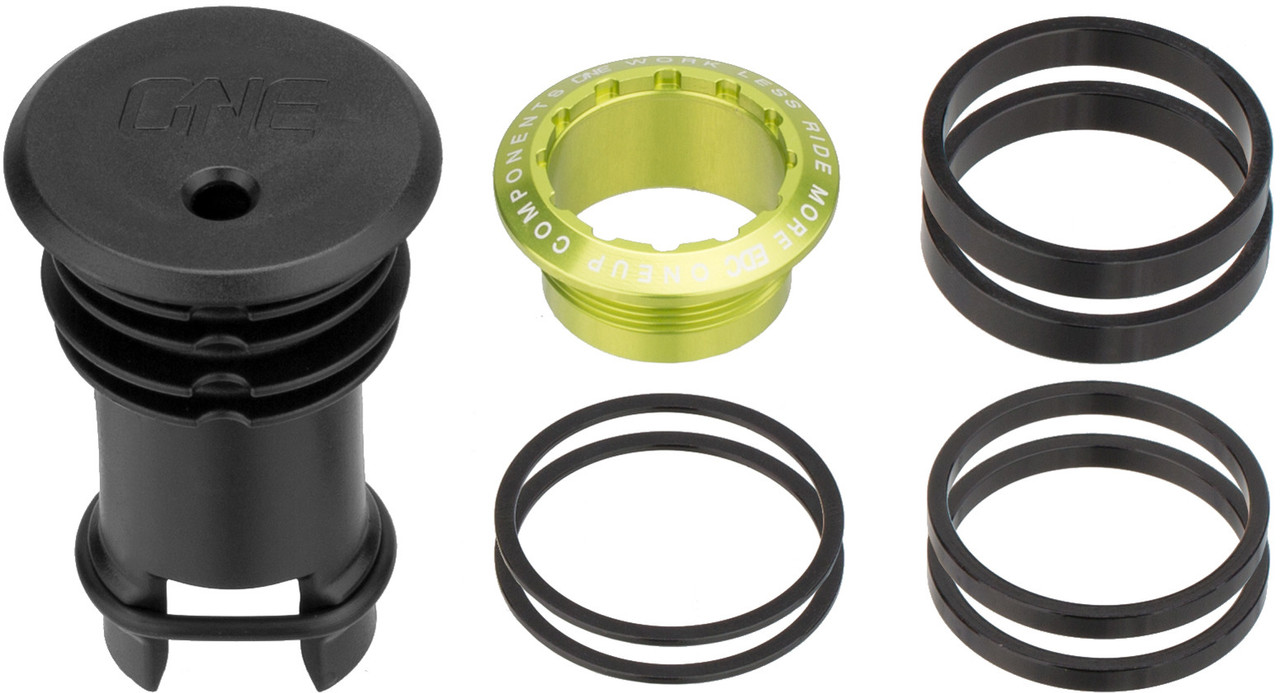

Contents:

• 1 x OneUp Components top cap
• 1 x OneUp Components steerer plug
• 2 x spacers, 1 mm
• 2 x spacers, 3 mm
• 2 x spacers, 5 mm
