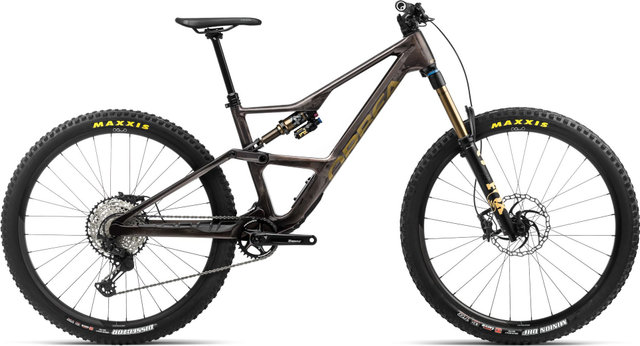

Orbea Occam LT M10 Carbon 29" Mountain Bike

Application:

All Mountain, Enduro

Wheel Size:

29"

Front Travel:

160 mm

Rear Travel:

150 mm

Sizes:

S, M, L, XL

Front Triangle Material:

Carbon (OMR)

Rear Triangle Material:

Carbon (OMR)

Components:

Frame:

Orbea Occam OMR, Disc Post Mount, 12 x 148 mm, Concentric Boost, Pure Trail Geometry, internal cable routing, asymmetrical design

Fork:

Fox Racing Shox 36 Float GRIP2 Factory, 15 x 110 mm Boost, through axle with quick release, 44 mm offset, Kashima coating

Stem:

OC Mountain Control MC10 Alu SL, 0°

Handlebars:

OC Mountain Control MC10 Carbon, 20 mm Rise

Grips:

Ergon GE10

Rear Shock:

Fox Racing Shox Float X EVOL LV 2POS Factory, Custom Tune, 210 x 55 mm, Kashima coating

Remote System:

none

Headset:

1.5" , IS52/40, black oxide bearings

Seatpost:

OC Mountain Control MC21 Dropper Post, 31.6 mm, Travel: 150 mm (S), 170 mm (M, L), 200 mm (XL)

Saddle:

Ergon SM Enduro

Crank:

Race Face Turbine, 32T

Pedals:

none

Brakes:

Shimano XT M8120 Hydraulic Disc

Shift Lever:

Shimano XT M8100 I-Spec EV, 12-speed

Rear Derailleur:

Shimano XT M8100 SGS Shadow Plus, 12-speed

Cassette:

Shimano CS-M7100, 10 - 51T, 12-speed

Chain:

Shimano M6100

Rims:

Oquo Mountain Control MC32TEAM, 28 holes (front) / 32 holes (rear), Hookless, Internal width: 32 mm (front), 30 mm (rear)

Spokes:

Sapim D-Sprint

Front Hub:

DT Swiss 350, Disc 6-bolt

Rear Hub:

DT Swiss 350, Disc 6-bolt

Front Tyre:

Maxxis Dissector 3C MaxxTerra EXO TR, 60 tpi, 29 x 2.4"

Rear Tyre:

Maxxis Dissector 3C MaxxTerra EXO TR, 60 tpi, 29 x 2.4"

Approved For:

Weight Limit:

117 kg (rider + gear + luggage)

Rotor Size (max.):

200 mm (rear), 230 mm (front)

Tyre Size (max.):

29 x 2.5"

Chainrings:

1x

Chainring Size (max.):

1x 34T

Fork Axle to Crown Size (max.):

578 mm

Features:

• 29" -carbon trail mountain bike with Shimano drivetrain and Fox suspension
• downhill-oriented LT version with 160 mm front travel and 150 mm rear travel
• asymmetrical frame and rear triangle made of lightweight carbon
• Quick Flip for changing the geometry: change of bottom bracket drop by 8 mm and head angle by 0.5°
• Steep'n'Deep seat tube with steep seat angle and plenty of space for seat posts up to 415 mm (S) / 425 mm (M) / 440 mm (L) / 470 mm (XL) insertion depth
• cockpit with high-quality Orbea-OC components
• internal cable routing from headset to rear triangle
• 55 mm chain line
• SRAM UDH dropout
• LOCKR Zone: storage space in the downtube for tools, spare parts, and gear
• 1 bottle cage
• with Orbea chain guide
• multitool stored in the shock pivot bearing with Allen keys in 2, 3, 4, and 5 mm size

Geometry:

S:

Recommended Height:

150 - 165 cm

Stack:

616 mm (high) / 621 mm (low)

Reach:

435 mm (high) / 430 mm (low)

Seat Tube Length:

405 mm

Effective Top Tube Length:

571 mm (high) / 572 mm (low)

Head Tube Length:

95 mm

Chainstay Length:

440 mm

Wheelbase:

1199 mm (high) / 1200 mm (low)

Bottom Bracket Height:

350 mm (high) / 342 mm (low)

BB Drop:

28 mm (high) / 36 mm (low)

Seat Tube Angle:

77.5° (high) / 77° (low)

Head Tube Angle:

64.5° (high) / 64° (low)

Stem Length:

35 mm

Handlebar Width:

800 mm

Crank Arm Length:

165.0 mm

M:

Recommended Height:

160 - 175 cm

Stack:

621 mm (high) / 625 mm (low)

Reach:

460 mm (high) / 455 mm (low)

Seat Tube Length:

415 mm

Effective Top Tube Length:

597 mm (high) / 598 mm (low)

Head Tube Length:

100 mm

Chainstay Length:

440 mm

Wheelbase:

1226 mm (high) / 1227 mm (low)

Bottom Bracket Height:

350 mm (high) / 342 mm (low)

BB Drop:

28 mm (high) / 36 mm (low)

Seat Tube Angle:

77.5° (high) / 77° (low)

Head Tube Angle:

64.5° (high) / 64° (low)

Stem Length:

40 mm

Handlebar Width:

800 mm

Crank Arm Length:

170.0 mm

L:

Recommended Height:

170 - 185 cm

Stack:

630 mm (high) / 635 mm (low)

Reach:

485 mm (high) / 480 mm (low)

Seat Tube Length:

430 mm

Effective Top Tube Length:

624 mm (high) / 625 mm (low)

Head Tube Length:

110 mm

Chainstay Length:

440 mm

Wheelbase:

1255 mm (high) / 1257 mm (low)

Bottom Bracket Height:

350 mm (high) / 342 mm (low)

BB Drop:

28 mm (high) / 36 mm (low)

Seat Tube Angle:

77.5° (high) / 77° (low)

Head Tube Angle:

64.5° (high) / 64° (low)

Stem Length:

40 mm

Handlebar Width:

800 mm

Crank Arm Length:

170.0 mm

XL:

Recommended Height:

180 - 198 cm

Stack:

639 mm (high) / 644 mm (low)

Reach:

510 mm (high) / 505 mm (low)

Seat Tube Length:

460 mm

Effective Top Tube Length:

651 mm (high) / 653 mm (low)

Head Tube Length:

120 mm

Chainstay Length:

440 mm

Wheelbase:

1285 mm (high) / 1286 mm (low)

Bottom Bracket Height:

350 mm (high) / 342 mm (low)

BB Drop:

28 mm (high) / 36 mm (low)

Seat Tube Angle:

77.5° (high) / 77° (low)

Head Tube Angle:

64.5° (high) / 64° (low)

Stem Length:

50 mm

Handlebar Width:

800 mm

Crank Arm Length:

170.0 mm

Manufacturer Number:

R266

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is, depending on the workshop workload, 2 - 5 days in addition to the delivery time shown in the online shop.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Mountain Bike Orbea Occam LT H20 Carbon 29"
• 1 x Multitool Orbea OC FLP MT20
