PAUL Melvin Chain Tensioner

Technical Information:

Material (cage):

aluminium (6061)

Material (derailleur pulleys):

aluminium

Thickness (derailleur pulleys):

2.25 mm

Bearings (derailler pulleys):

cartridge bearings, sealed

Chainline:

19 - 27 mm

Sprocket (max.):

20-tooth

Features:

• enables the use of single-speed rear wheels on frames with vertical dropouts
• ensures optimum chain tension in conjunction with chainrings with a maximum of 20 teeth
• spacers facilitate adjustment for the optimal chainline
• derailleur pulleys have slight lateral play to compensate for slight deviations in the chainline
• 2.25 mm thick derailleur pulleys fit a wide range of chains - also for 1/8" single-speed chains

Manufacturer Numbers:

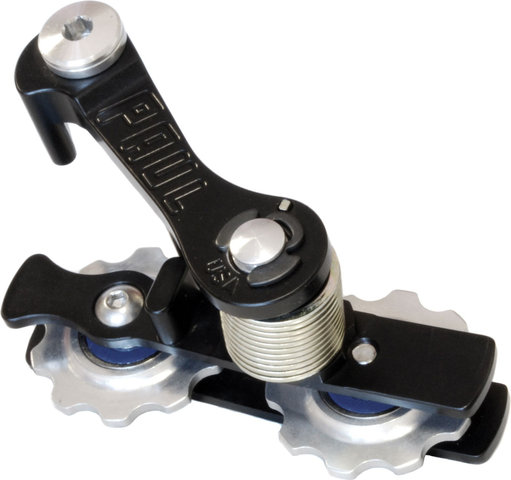

black:

PC200BLACK

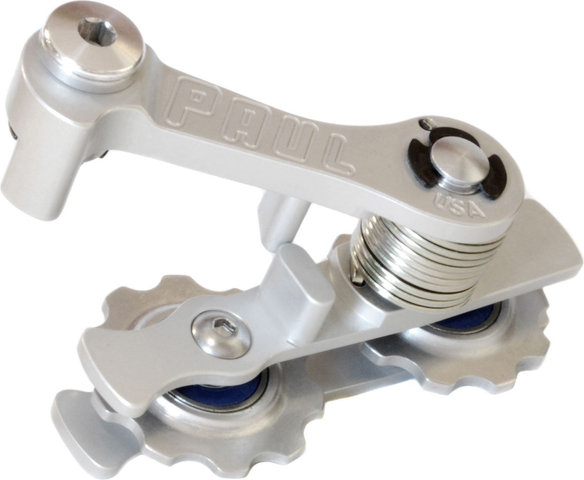

silver:

PC200SILVER

Contents:

• 1 x PAUL Melvin Chain Tensioner

• black: 76 g
