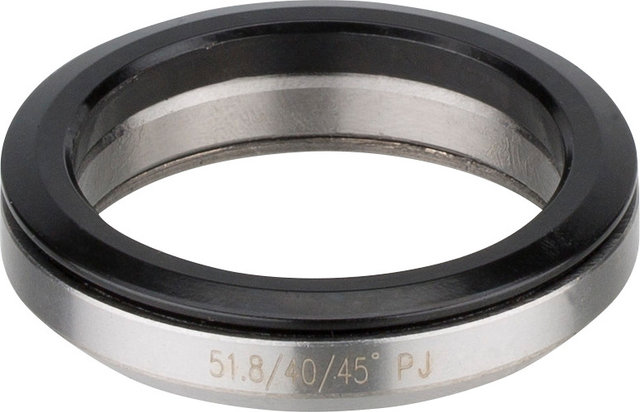

PRO IS52/40 Headset Bottom Assembly

Use:

For 1.5" lower head tubes combined with 1 1/8" - 1.5" tapered or 1.5" forks.

Specifications:

Application:

Road, Gravel, Cyclocross, Cross Country, Trail, All Mountain, Enduro, Downhill, Freeride

Lower Bearings:

1.5"

Steerer Tube:

1 1/8" - 1.5" tapered, 1.5"

Design:

integrated (IS)

Technical Information:

Material:

aluminium

Bearings:

high-quality steel ball bearings, double sealed

Bottom Outer Diameter:

52 mm

Bottom Inner Diameter:

40 mm

Features:

• high-quality materials and robust, resilient bearings ensure a long service life

Standardized Headset Identification System (S.H.I.S.):

In order to clarify and bring uniformity to a sea of headset standards, manufacturers Acros, Cane Creek, Hope, Race Face, Reset Racing and Ritchey have agreed upon using a shared nomenclature, which will likely include more participating companies in the future. This system takes into account a combination of frame and fork dimensions. Both the top and bottom parts of the headset are marked by two alphanumeric identifiers. The first identifier indicates the type of headset (External Cup, Zero Stack, Integrated) and head tube diameter. The second identifier - separated from the first by a backslash - indicates the diameter of the steerer tube. When referring to a complete headset, the specifications of both top and bottom parts must be combined.

Nomenclature:

EC:

Bearings contained within headset cups that are located outside of the frame (External Cup)

ZS:

Bearings contained within pressed-in headset cups where the cup and bearings rest inside the frame (Zero Stack)

IS:

Bearings that fit directly into a bonded or machined interface that is integrated into the frame (Integrated)

Manufacturer Number:

PRHS0057

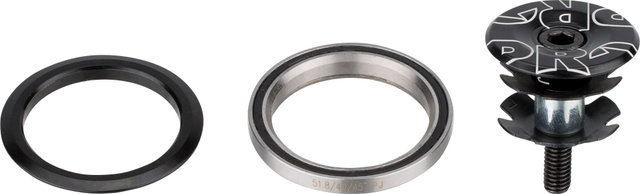

Contents:

• 1 x PRO lower bearing
• 1 x headset cap
• 1 x star nut with aluminium bolt
• 1 x crown race
