Pitlock Lock Set 18 Fox Racing Shox Thru Axles

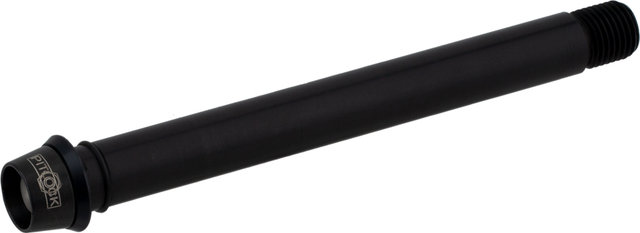

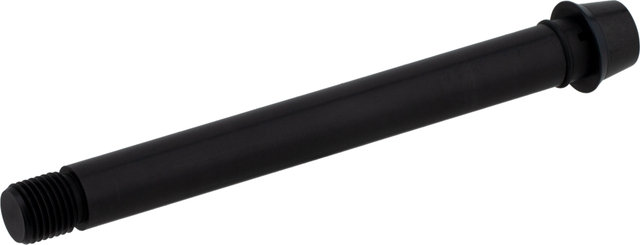

Maximum theft protection: the Pitlock Thru-Axle System

With this set, more security is simply impossible. The thru axle is provided with a unique code and can only be opened with a personalised PIT key.

Specifications:

Installation Width:

Front: 100 mm

Axle Diameter:

15 mm

Technical Information:

Use:

Front: 15 x 100 mm

Type:

locking skewer

Axle Material:

stainless steel

Axle Length:

146 mm

Nominal Diameter:

M14

Thread Pitch:

1.5

Thread Length:

15 mm

Compatibility:

The Pitlock system replaces the Fox Racing Shox Light thru-axle and is also only compatible with Fox Racing Shox forks. For forks with a stanchion tube diameter of 32 and 34 mm.

Approved For:

Thread Pitch:

M14 x 1.5

Features:

• required pressure surface Ø 22 mm
• stainless steel axle
• Aluminium PIT key

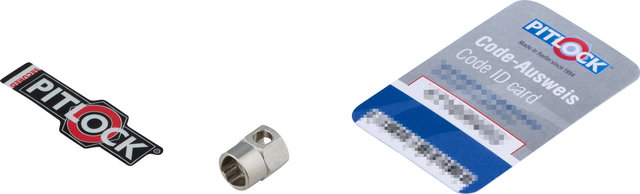

Contents:

• 1 x Pitlock thru-axle
• 1 x Pitlock PIT key
• 1 x Pitlock code card
