Pitlock Security Set 03/GA Front Wheel + Rear Wheel + Ahead

With the Pitlock locking system you can secure the front wheel, rear wheel and the Ahead system.

Specifications:

Installation Width:

front: 100 mm, rear: 135 mm, seatpost lock: 33 mm

Axle Diameter:

5 mm

Technical Information:

Use:

front: 9 x 100 mm, rear: 10 x 135 mm

Type:

locking skewer

Axle Material:

stainless steel

Axle Length:

Front Wheel: 119 mm, Rear Wheel: 155 mm

Features:

• Pitlock Set 02 GA/AUS
• locking skewer for ahead cap: 1 1/8" (not not suitable for carbon forks / expanders)
• converts in 5 minutes
• extremely low weight
• stainless steel
• resistant to weather and grime

An important component of the Pitlock system is the code card. It allows the owner alone to re-order a lost pit directly from the manufacturer or distributor.

Colour Index:

The headset cap is available in the Pitlock Set 03/GA in either black or silver:

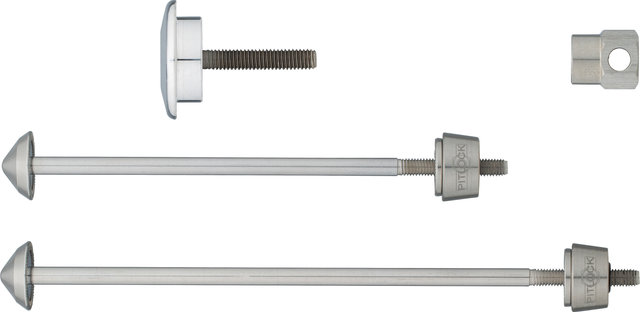

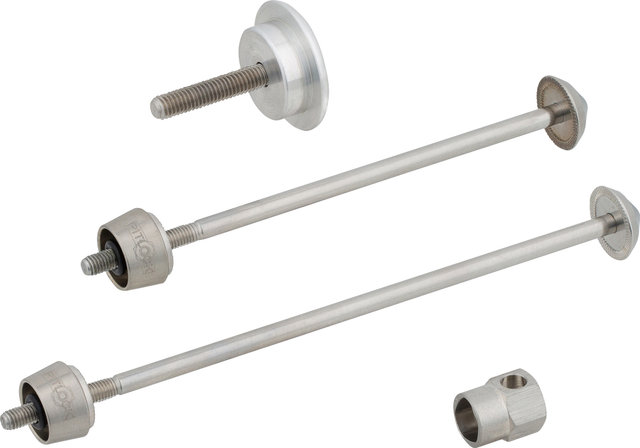

silver-silver Axle: silver, ahead cap: silver
black (silver-black) Axle: silver, headset cap: black

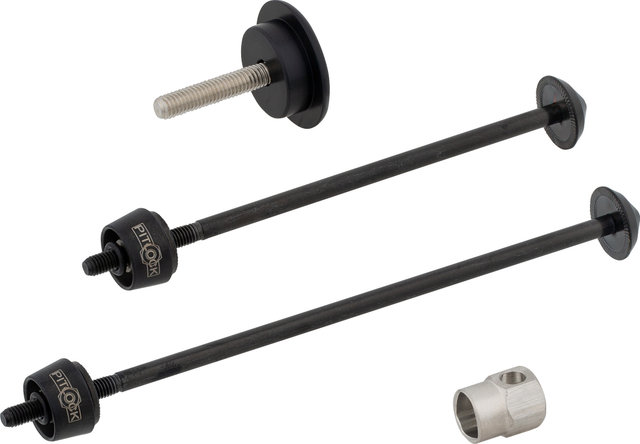

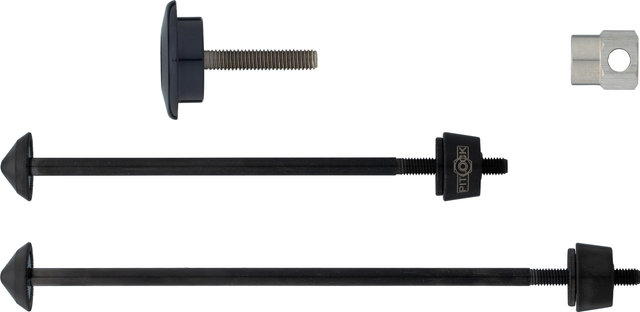

black-black Axle: black, ahead cap: black

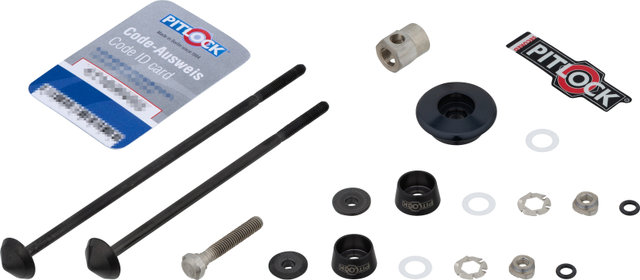

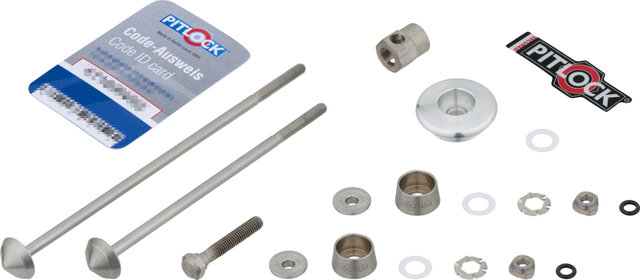

Contents:

• 1 x Pitlock locking skewer for rear wheel
• 1 x Pitlock locking skewer for front wheel
• 1 x Pitlock locking skewer for ahead cap
• 1 x Pitlock M6 code bolt
• 1 x key (PIT)
• 1 x Pitlock code card
