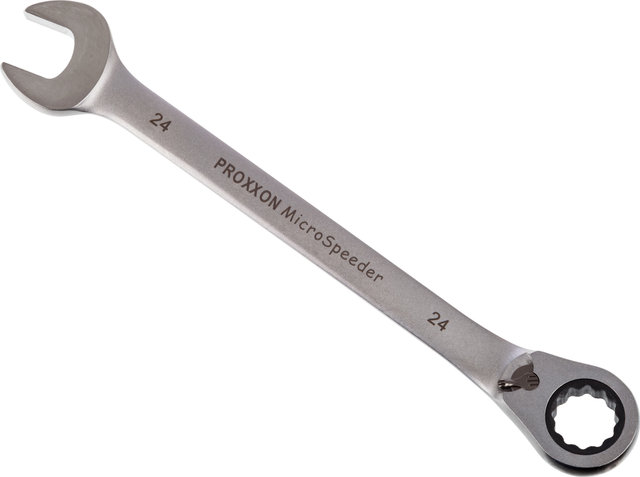

Proxxon MicroSpeeder Ring Wrench with Lever Switch

Technical Information:

Shaft Material:

CrV steel

Sizes:

8 / 9 / 10 / 11 / 12 / 13 / 14 / 15 / 16 / 17 / 18 / 19 / 21 / 22 and 24 mm

Angle:

15 ° (angled on ring side)

Functions:

Ring Wrench:

8 / 9 / 10 / 11 / 12 / 13 / 14 / 15 / 16 / 17 / 18 / 19 / 21 / 22 / 24 mm

Features:

• for wrenches with extremely small external dimensions
• very slim head
• head angled 15° - ideal for screwing on flat surfaces
• extra-long version
• for time-saving work without repositioning
• 72-tooth inner ring made of high-alloy special steel
• drive already takes place with a lever movement of 5°
• transmitted torques are far above DIN/ISO
• shafts made of CrV steel with optimum surface protection (2 x nickel-plated, 1 x matt chrome-plated)
• clearly legible width across flats due to laser marking process
• lever switch for clockwise and anti-clockwise rotation

Size Guide:

8 mm:

• Width Across Flats: 8 mm
• Ring Head Width: 13 mm
• Open Head Width: 20 mm
• Length: 120 mm
• Height: 3.5 mm
• Manufacturer Number: 23130

9 mm:

• Width Across Flats: 9 mm
• Ring Head Width: 13 mm
• Open Head Width: 20 mm
• Length: 120 mm
• Height: 3.5 mm
• Manufacturer Number: 23131

10 mm:

• Width Across Flats: 10 mm
• Ring Head Width: 13 mm
• Open Head Width: 20 mm
• Length: 120 mm
• Height: 3.5 mm
• Manufacturer Number: 23132

11 mm:

• Width Across Flats: 11 mm
• Ring Head Width: 13 mm
• Open Head Width: 20 mm
• Length: 120 mm
• Height: 3.5 mm
• Manufacturer Number: 23133

12 mm:

• Width Across Flats: 12 mm
• Manufacturer Number: 23134

13 mm:

• Width Across Flats: 13 mm
• Manufacturer Number: 23135

14 mm:

• Width Across Flats: 14 mm
• Manufacturer Number: 23136

15 mm:

• Width Across Flats: 15 mm
• Manufacturer Number: 23137

16 mm:

• Width Across Flats: 16 mm
• Manufacturer Number: 23138

17 mm:

• Width Across Flats: 17 mm
• Manufacturer Number: 23139

18 mm:

• Width Across Flats: 18 mm
• Manufacturer Number: 23140

19 mm:

• Width Across Flats: 19 mm
• Manufacturer Number: 23141

21 mm:

• Width Across Flats: 21 mm
• Manufacturer Number: 23143

22 mm:

• Width Across Flats: 22 mm
• Manufacturer Number: 23144

24 mm:

• Width Across Flats: 24 mm
• Manufacturer Number: 23146

Manufacturer's note: It is not possible to fold down the 15° angled head (on all sides). Therefore, this type of key has a lever switch for clockwise and anti-clockwise rotation.

Contents:

• 1 x Proxxon MicroSpeeder combination wrench with lever switch
