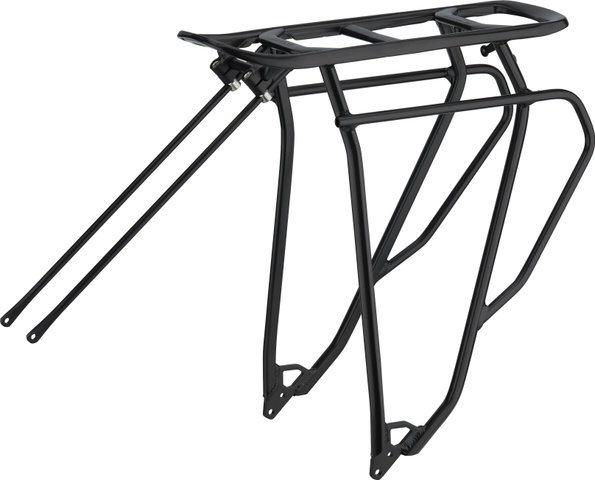

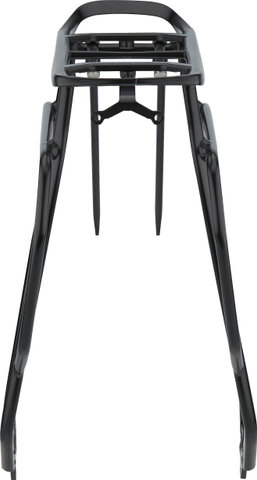

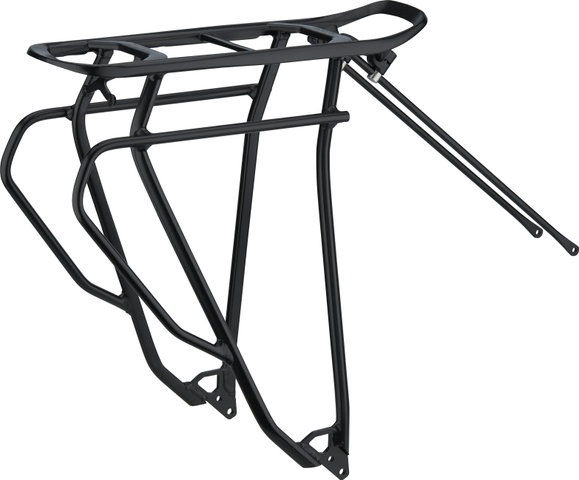

Racktime Boostit 2.0 Tour Pannier Rack

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

City & Touring

Upper Mount:

rear triangle braze-ons

Lower Mount:

rear triangle dropouts

Wheel Size:

29"

Rail Diameter:

14 mm

Payload (max.):

25 kg

Compatibility:

Snapit 2.0

Technical Information:

Material:

Aluminium

Dimensions (H x W x D):

400 mm x 391 mm x 128 mm

Tyre Width (max.):

75 mm

Rear Light Hole Distance:

50 mm

Features:

• sturdy pannier rack with side rails for attaching panniers
• for 29" MTBs and E-MTBs with up to 205 mm wide rear triangle
• optimal alignment thanks to length-adjustable stays
• can be complemented in multiple ways with Snapit 2.0 bags and baskets
• option for mounting a rear light

Manufacturer Number:

090720-001

Contents:

• 1 x Racktime Boostit 2.0 Tour rack
• 2 x 350 mm stays
• 4 x half clamps for clamping on stays
• 2 x clamp blocks

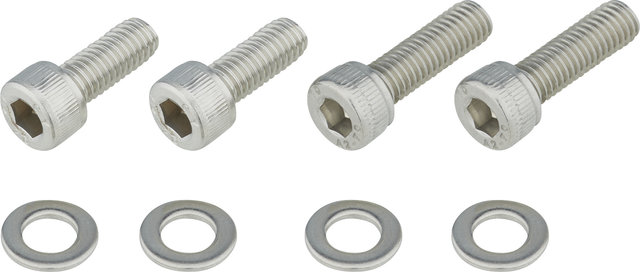

• 2 x bolts, M6 x 14 mm
• 2 x bolts, M5 x 12 mm
• 2 x bolts, M5 x 16 mm
• 4 x washers, M5
• 2 x end plugs
