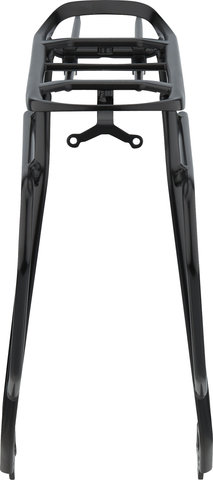

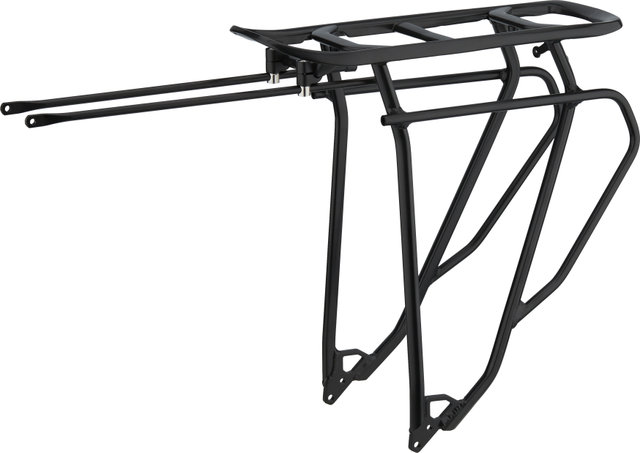

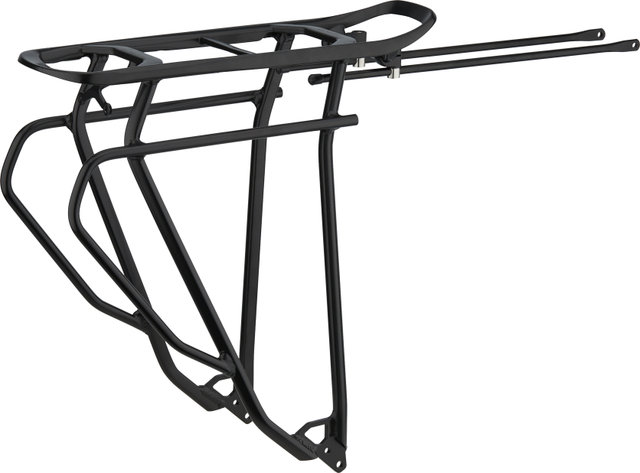

Racktime Standit 2.0 Tour Pannier Rack

Specifications:

Application:

City & Touring

Upper Mount:

rear triangle braze-ons

Lower Mount:

rear triangle dropouts

Rail Diameter:

14 mm

Payload (max.):

25 kg

Compatibility:

Snapit 2.0

Technical Information:

Material:

Aluminium

Dimensions (H x W x D):

380 mm x 128 mm x 396 mm

Rear Light Hole Distance:

50 mm

Features:

• sturdy pannier rack with railing on both sides for additional touring bags
• compatible with Snapit 2.0 accessories
• easy alignment on the frame thanks to length-adjustable fixing struts
• option for mounting a rear light

Manufacturer Number:

091215-001

Contents:

• 1 x Racktime Standit 2.0 Tour Pannier Rack
• 2 x 350 mm stays
• 4 x half clamps
• 2 x clamp blocks

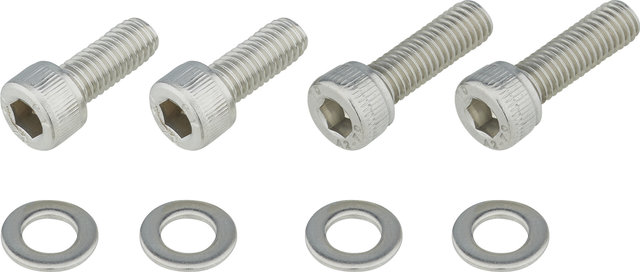

• 2 x bolts, M6 x 14 mm
• 2 x bolts, M5 x 12 mm
• 2 x bolts, M5 x 16 mm
• 4 x washers
• 2 x end plugs
