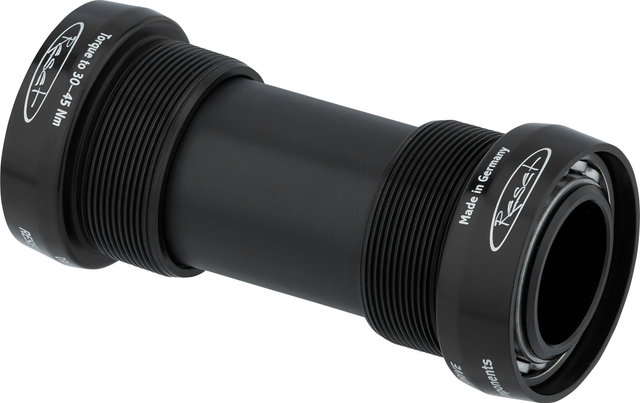

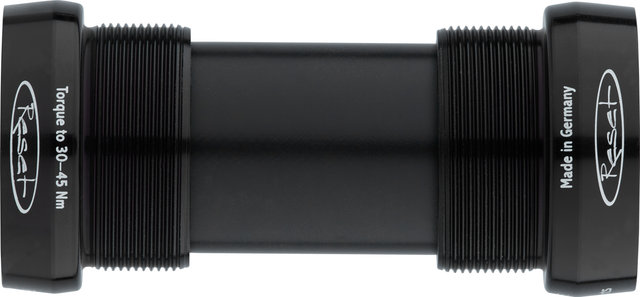

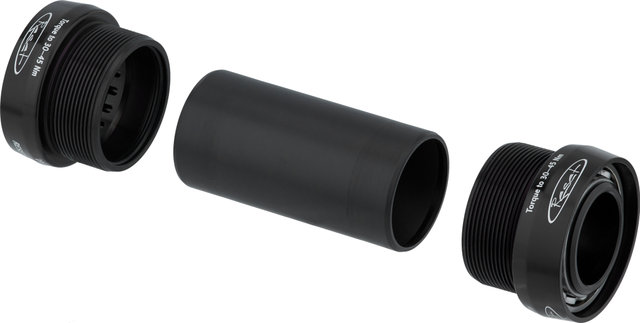

Reset Racing GXPLite MTB Bottom Bracket

Adapter-free solution: the GXPlite MTB bottom bracket by Reset Racing

The Reset Racing GXPlite MTB is an independent bottom bracket for all GXP cranks. With a tool holder that is invisible from the outside and a sophisticated seal, the GXPlite bottom bracket closes with the crank as usual and weighs considerably less than comparable products. It can be completely disassembled for maintenance.

Specifications:

Application:

Cross Country

Type:

BSA

Shell Width:

68 mm, 73 mm

Axle Diameter:

24 mm (GXP)

Technical Information:

Bearings:

deep groove ball bearing, steel

Bottom Bracket Cup Material:

aluminium (7075)

Bottom Bracket Centre Tube Material:

composite (POM, NBR)

Seals:

radial shaft seal, O-rings

Compatibility:

• SRAM / Truvativ GXP cranks
• not compatible with Hollowtech II cranks

Features:

• anodised and laser engraved
• recommended mounting tool: Cyclus Tools ISIS or Shimano TL-UN74

Manufacturer Number:

5292

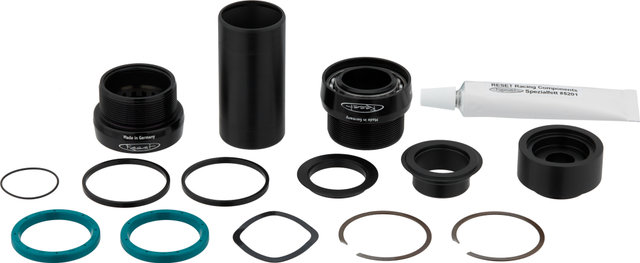

Contents:

• 1 x Reset Racing GXPLite MTB bottom bracket cup, left, incl. bearings
• 1 x Reset Racing GXPLite MTB bottom bracket cup, right, incl. bearings
• 1 x Reset Racing bottom bracket sleeve for 68/73 mm
• 1 x wave ring
• 1 x snap ring
• 1 x O-ring
• 1 x end caps
• 1 x cover
• 1 x Reset Racing bearing cup guide
• 2 x O-ring
• 1 x 2.5 mm spacers
• incl. grease
