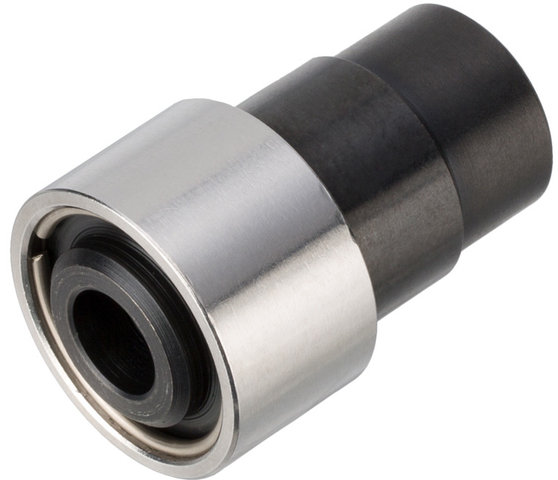

Reset Racing Pressure Piece for Presswerk

Pressure piece adapter as an accessory for the Reset Presswerk press tool. In addition, a matching sleeve counterpart is necessary.

Note:

For adapters type 1, 2 and 3, the M10 to M8 special spindle and the M8 clamp nut are also required.

Models:

Type 1:

• Bearing Dimensions (inside x outside x width): 8 x 16 x 5 mm
• Designation: e.g. 688
• Matching Sleeve: 8197 (= type 1)
• Manufacturer Number: 8205

Type 2:

• Bearing Dimensions (inside x outside x width): 8 x 19 x 6 mm
• Designation: e.g. 698
• Matching Sleeve: 8198 (= type 2)
• Manufacturer Number: 8206

Type 3:

• Bearing Dimensions (inside x outside x width): 8 x 22 x 7 mm
• Designation: e.g. 608
• Matching Sleeve: 8200 (= type 3)
• Manufacturer Number: 8207

Type 4:

• Bearing Dimensions (inside x outside x width): 10 x 19 x 5 mm, 10 x 19 x 7 mm
• Designation: e.g. 6800, 63800
• Matching Sleeve: 8198 (= type 2)
• Manufacturer Number: 8208

Type 5:

• Bearing Dimensions (inside x outside x width): 10 x 22 x 6 mm
• Designation: e.g. 6900
• Matching Sleeve: 8200 (= type 3)
• Manufacturer Number: 8209

Type 6:

• Bearing Dimensions (inside x outside x width): 10 x 26 x 8 mm
• Designation: e.g. 6000
• Matching Sleeve: 8202 (= type 4)
• Manufacturer Number: 8210

Type 7:

• Bearing Dimensions (inside x outside x width): 12 x 21 x 5 mm
• Designation: e.g. 6801
• Matching Sleeve: 8199 (= type 5)
• Manufacturer Number: 8211

Type 8:

• Bearing Dimensions (inside x outside x width): 12 x 24 x 6 mm
• Designation: e.g. 6901
• Matching Sleeve: 8201 (= type 6)
• Manufacturer Number: 8212

Type 9:

• Bearing Dimensions (inside x outside x width): 12.7 x 24 x 7/10 mm
• Designation: e.g. 6901 sm max
• Matching Sleeve: 8201 (= type 6)
• Manufacturer Number: 8213

Type 10:

• Bearing Dimensions (inside x outside x width): 12 x 28 x 8 mm
• Designation: e.g. 6001
• Matching Sleeve: 8203 (= type 7)
• Manufacturer Number: 8214

Type 11:

• Bearing Dimensions (inside x outside x width): 15 x 24 x 5 mm
• Designation: e.g. 6802
• Matching Sleeve: 8201 (= type 6)
• Manufacturer Number: 8215

Type 12:

• Bearing Dimensions (inside x outside x width): 15 x 28 x 7 mm
• Designation: e.g. 6902
• Matching Sleeve: 8203 (= type 7)
• Manufacturer Number: 8216

Type 13:

• Bearing Dimensions (inside x outside x width): 17 x 26 x 5 mm
• Designation: e.g. 6803
• Matching Sleeve: 8202 (= type 4)
• Manufacturer Number: 8217

Type 14:

• Bearing Dimensions (inside x outside x width): 17 x 30 x 7 mm
• Designation: e.g. 6903
• Matching Sleeve: 8204 (= type 8)
• Manufacturer Number: 8218

Contents:

• 1 x Reset Racing pressure piece
