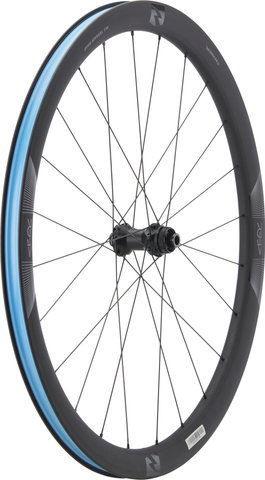

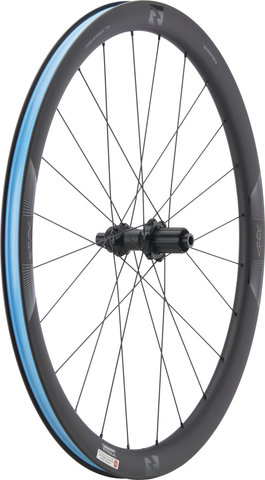

Reynolds ATR 28" Disc Centerlock Carbon Wheel - OEM Packaging
Item number: 95381
- OEM Packaging:
- This item comes from the original equipment manufacturer and is lacking the retail packaging.
Specifications:
- Application:
- Road, Gravel
- Wheel Size:
- 28"
- Tyre Type:
- clincher tyre
- Number of Spokes:
- 20 (front), 24 (rear)
- Brake Type:
- Center Lock Disc
- Tubeless System:
- Tubeless Ready
Technical Information – Rim:
- Type:
- ATR
- Rim Flange:
- with hook
- Dimensions (ETRTO):
- 23-622
- Inner Width:
- 23 mm
- Outer Width:
- 32 mm
- Depth:
- 40 mm
- Valve Hole Diameter:
- SV / Presta / Presta (6.5 mm)
- Rim Material:
- carbon

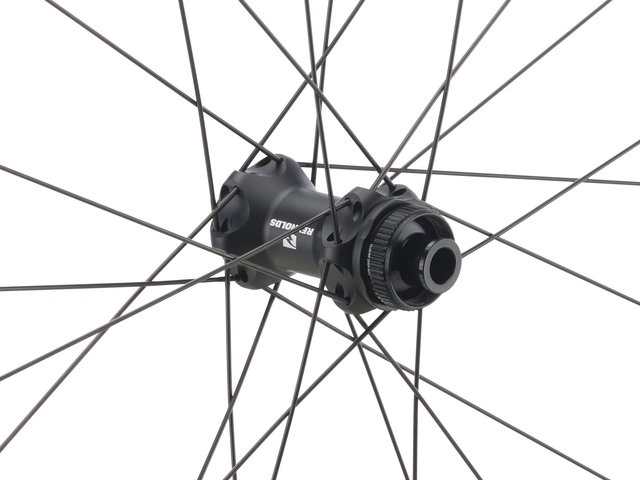

Technical Information – Front Hub:
- Over Locknut Dimension:
- 12 x 100 mm thru-axle, 15 x 100 mm thru-axle
- Body Material:
- aluminium

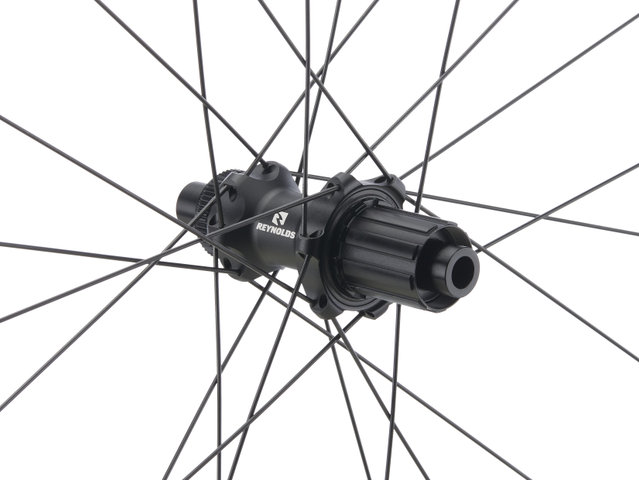

Technical Information - Rear Hub:
- Over Locknut Dimension:
- 12 x 142 mm thru-axle
- Body Material:
- aluminium
- Freehub Body Material:
- aluminium
Technical Information – Lacing:
- Front Lacing Pattern:
- 2-cross
- Rear Lacing Pattern:
- 2-cross
- Spoke Type:
- Sapim CX-Ray
- Spoke Material:
- stainless steel
Models:
28" front 12x100- Manufacturer Number:
- 82263
28" front 15x100
- Manufacturer Number:
- 446-39220-4010
28" rear 12x142 Shimano
- Freehub:
- Shimano Road
- Gearing:
- 8-/9-/10-/11-/12-speed
- Manufacturer Number:
- 82264
28" rear 12x142 SRAM XDR
- Freehub:
- SRAM XDR
- Gearing:
- 11-/12-speed
- Manufacturer Number:
- 446-39220-4610
Contents:
- 1 x ATR 28 Disc Centerlock carbon wheel (front or rear wheel)
