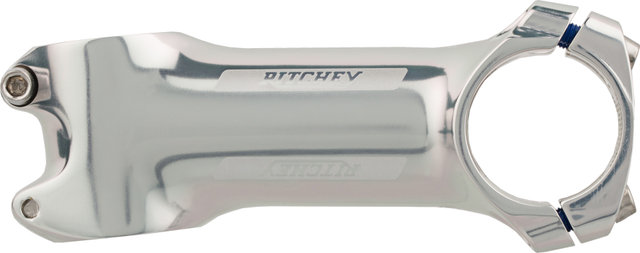

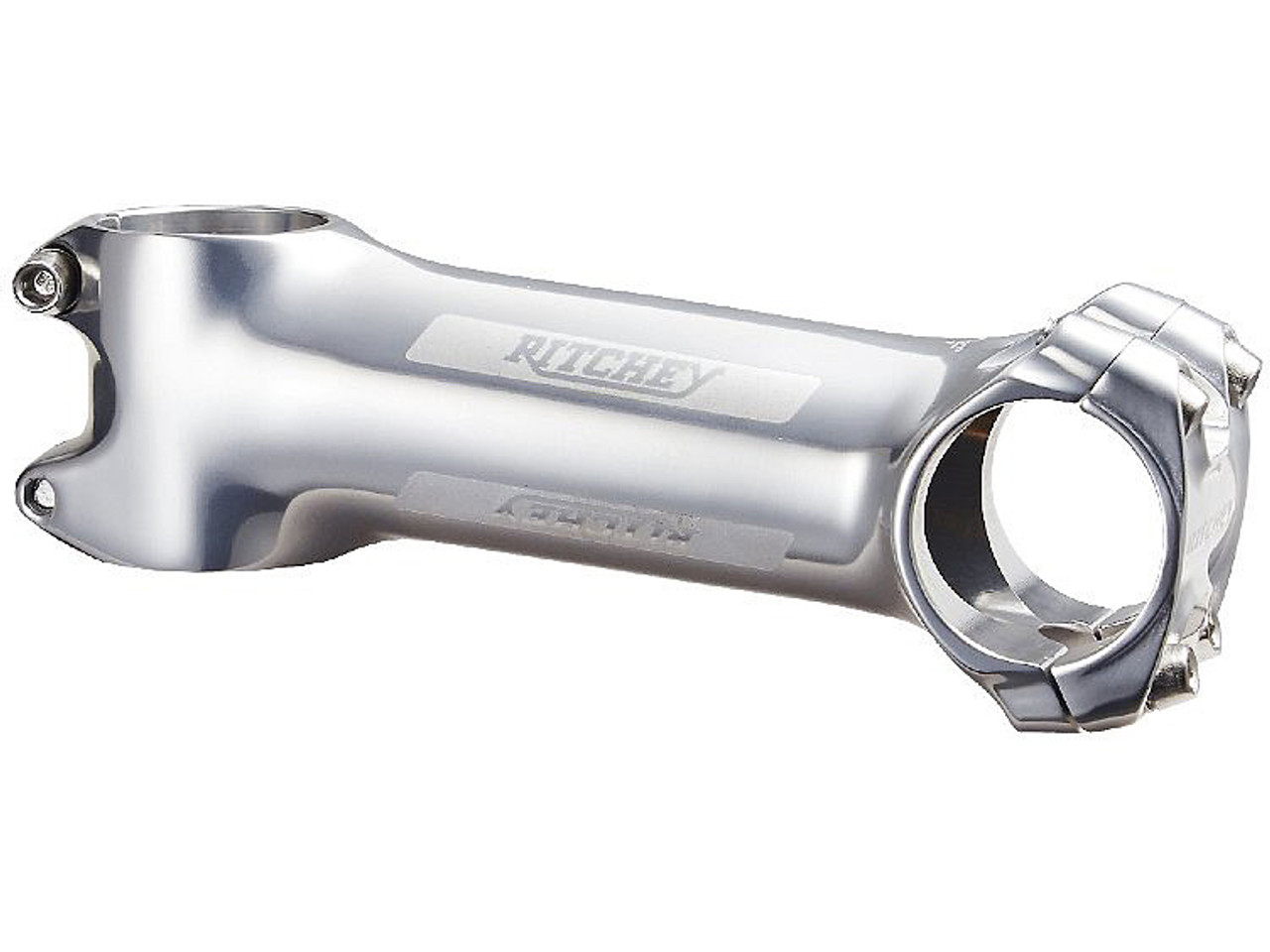

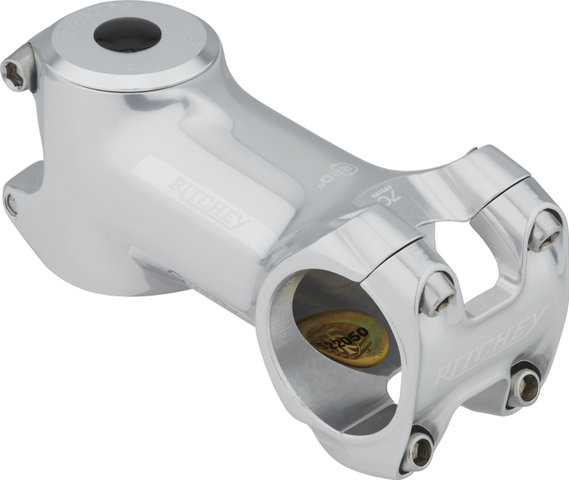

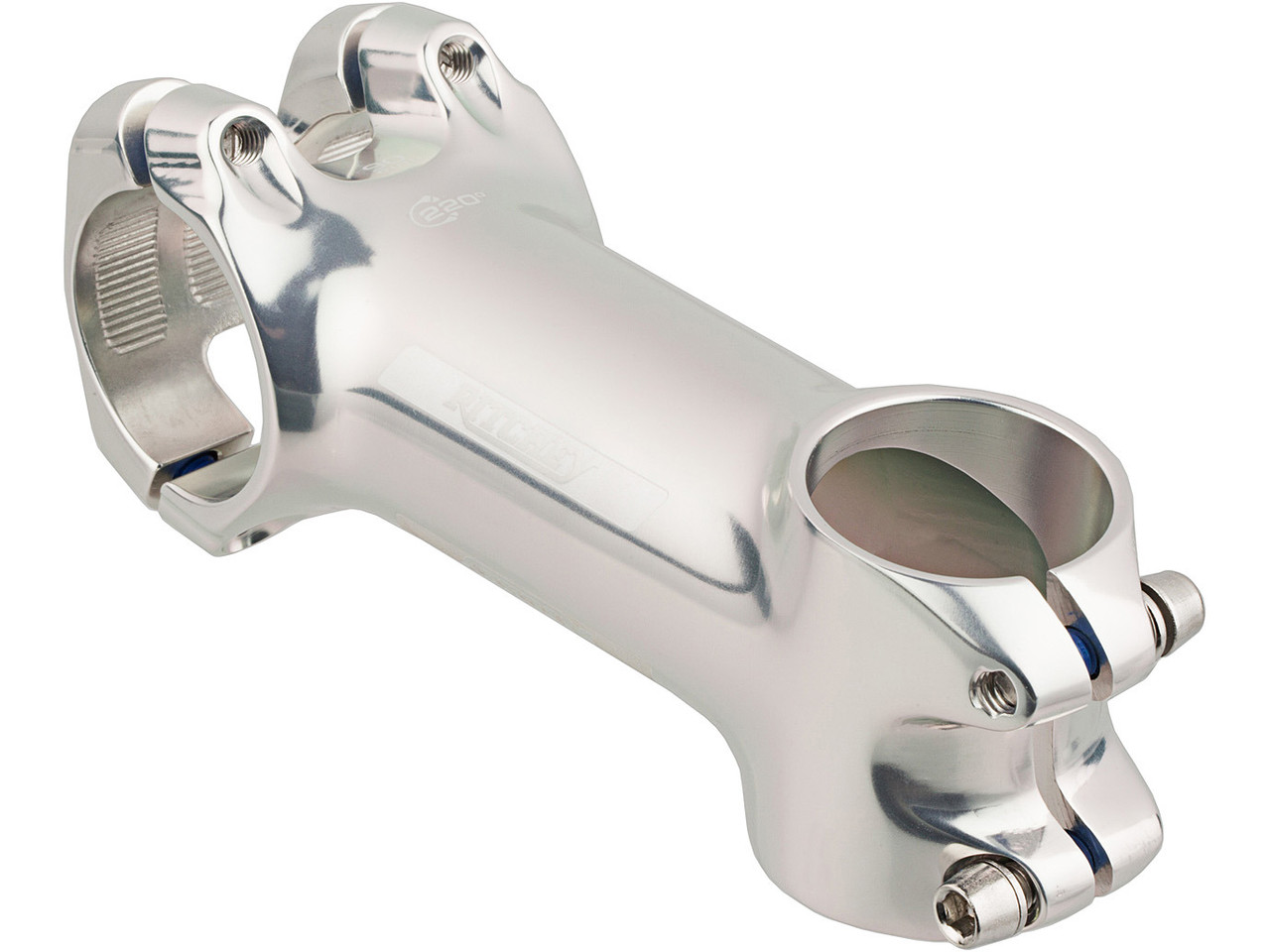

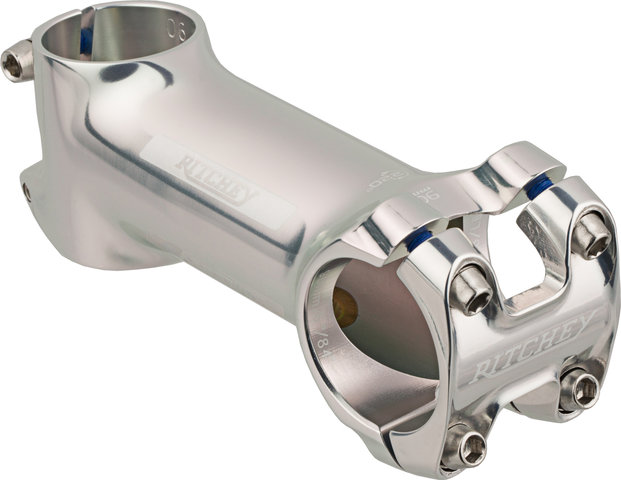

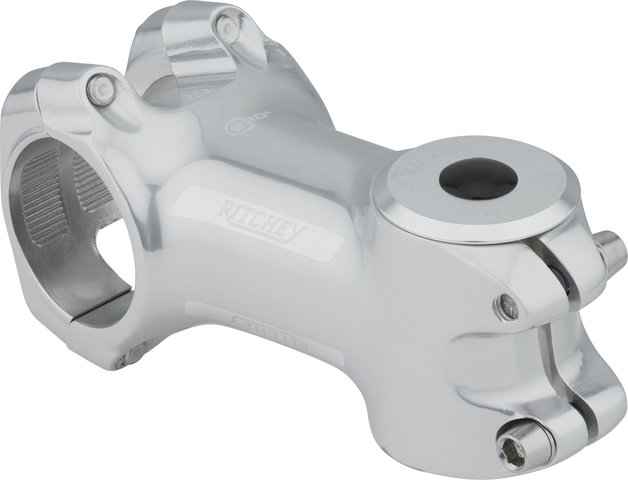

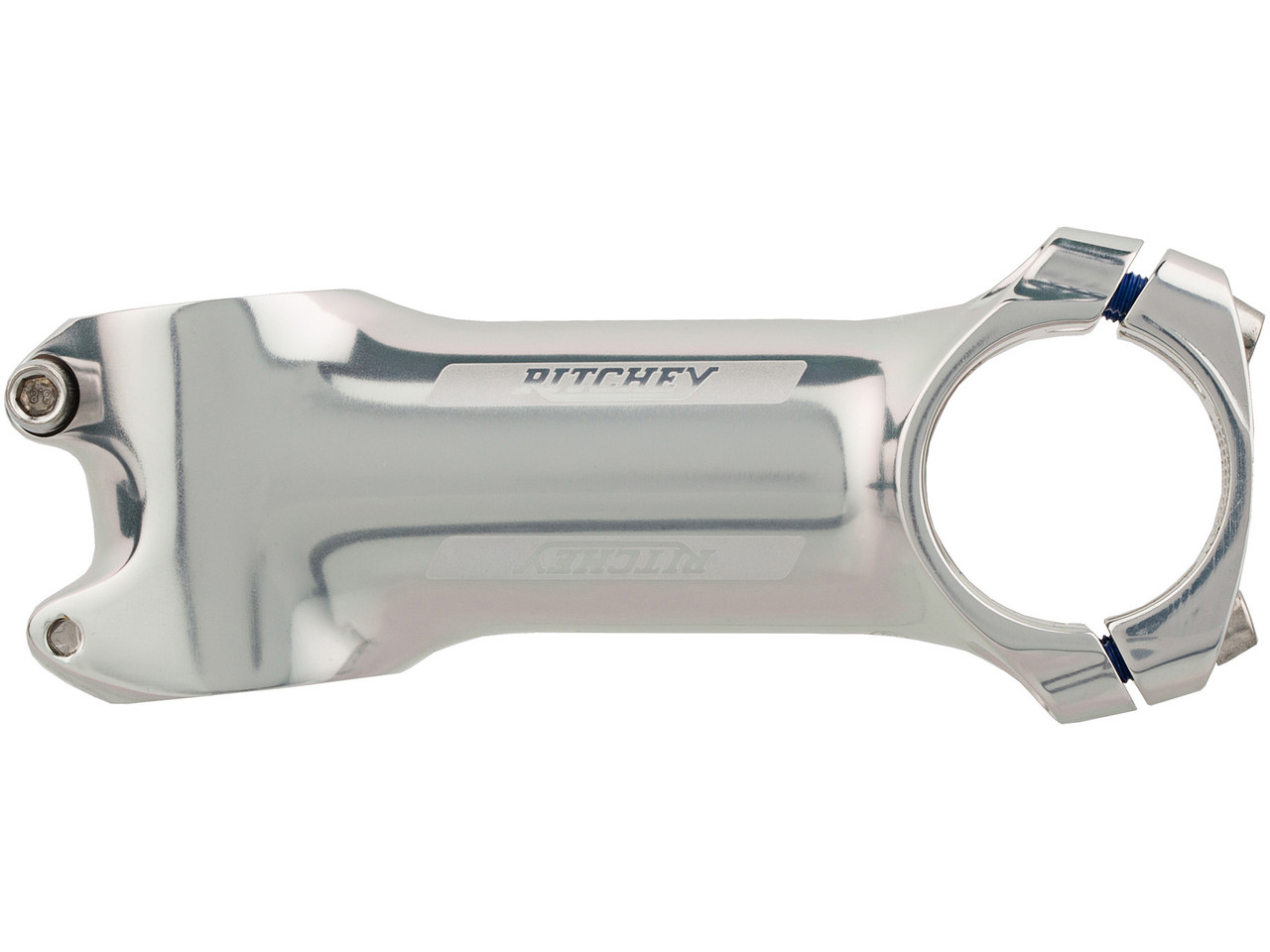

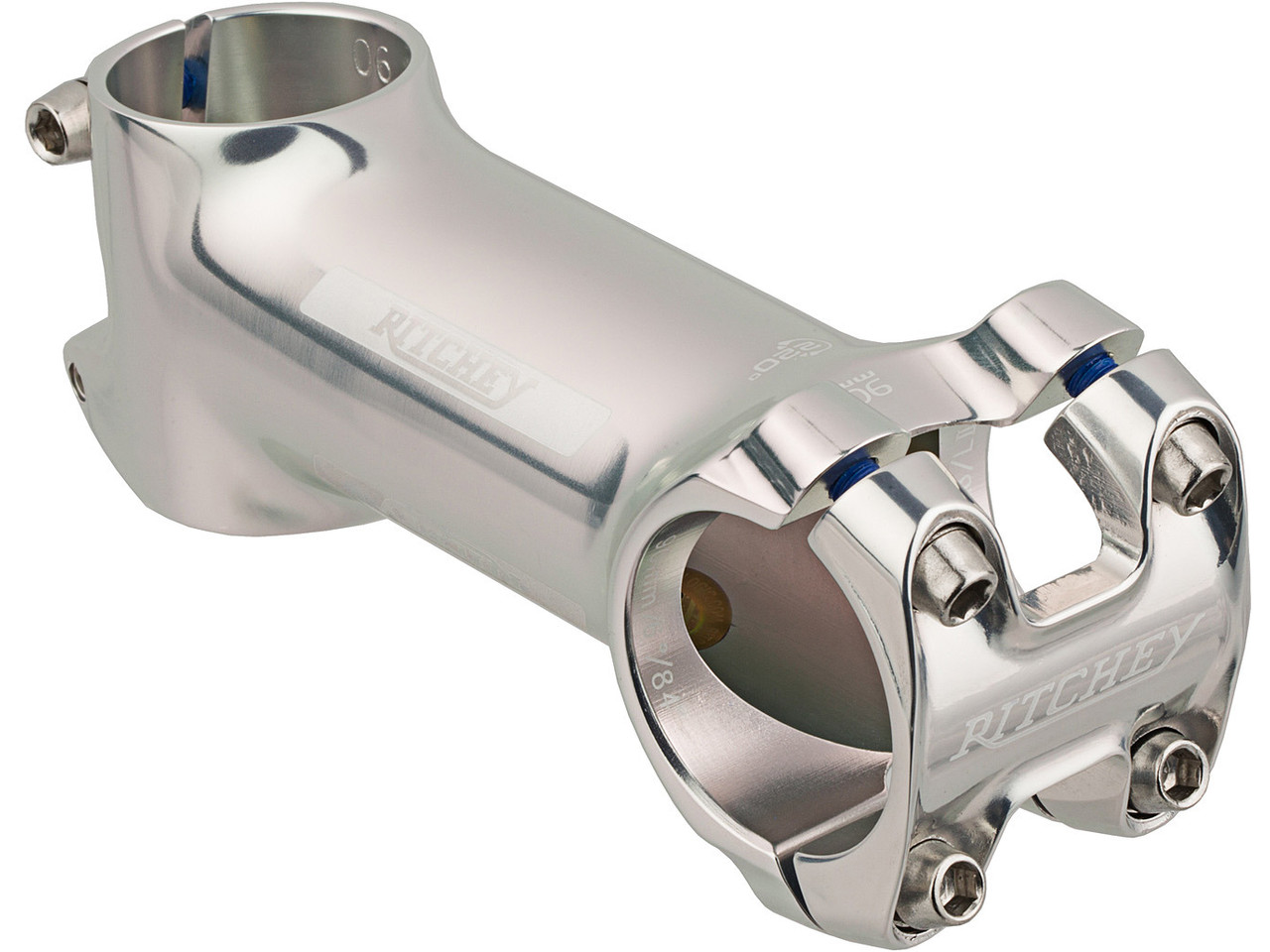

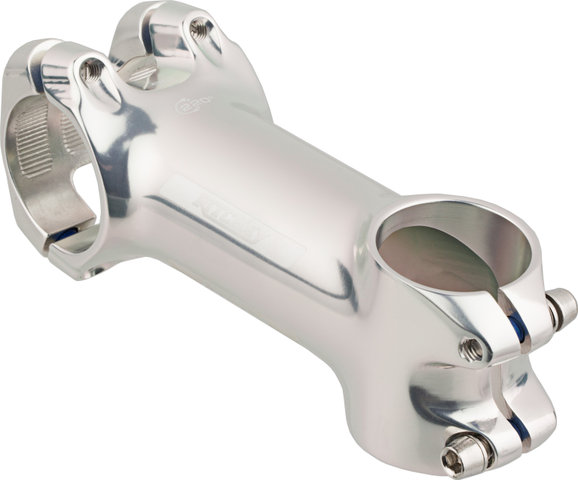

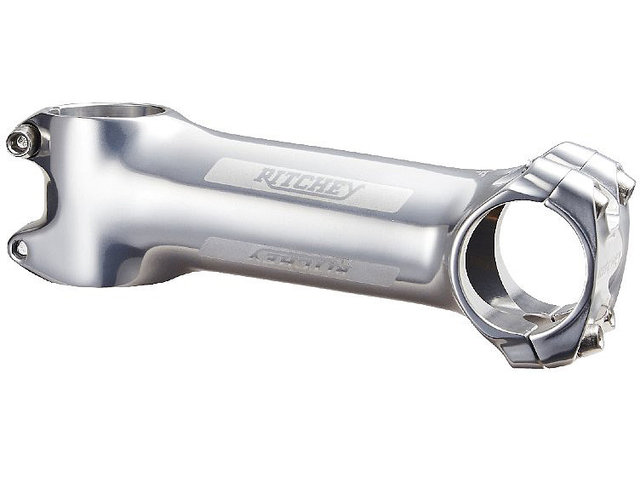

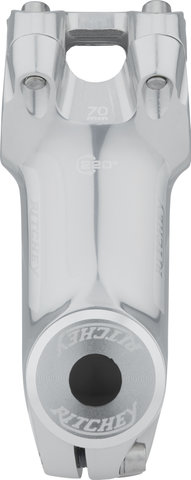

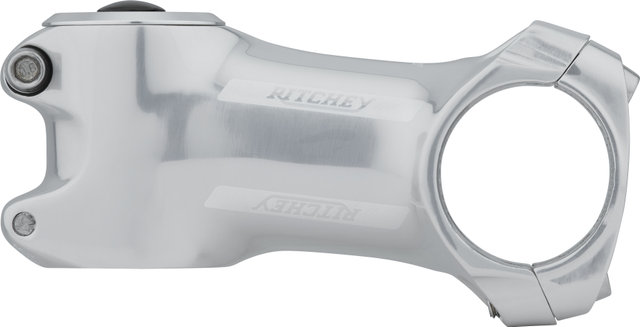

Ritchey Classic C220 31.8 Stem

You can have it all: the Classic C220 Stem by Ritchey

The attractive silver Ritchey Classic C220 stem is just as powerful as stems with the revolutionary C260 design, but it can be installed faster and easier thanks to a Pressfit handlebar clamp and front-facing bolts.

Specifications:

Application:

Cross Country, Road, Cyclocross

Design:

Ahead

Steerer Clamp:

1 1/8"

Stack Height:

42 mm

Handlebar Clamp:

31.8 mm

Lengths:

70 mm, 80 mm, 90 mm, 100 mm, 110 mm, 120 mm, 130 mm

Angle:

+6°/-6° (FlipFlop)

Technical Information:

Material:

aluminium (2014)

Bolt Material:

steel (CrMo)

Approved For:

Weight Limit:

110 kg (gear + rider)

Features:

• Series: Classic
• 3D-forged body

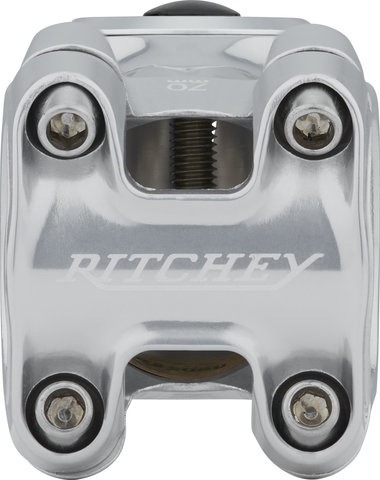

• 4 x 4 mm coated CrMo steel bolts on the front panel (42 mm)
• 2 x 4 mm coated CrMo steel bolts (offset) on the steerer tube clamp
• 5 Nm maximum tightening torque
• Compatible with all 31.8 handlebars
• Assembly identical to standard stem

Colour Index:

hp silver:

high-polished silver

Manufacturer Numbers:

70 mm:

31375457006

80 mm:

31375457007

90 mm:

31375457008

100 mm:

31375457009

110 mm:

31375457010

120 mm:

31375457011

130 mm:

31375457012

Contents:

• 1 x Ritchey Classic C220 stem
• 1 x top cap
• 1 x bolt with cover

• hp silver/+6°/-6° (FlipFlop)/110 mm: 121 g
