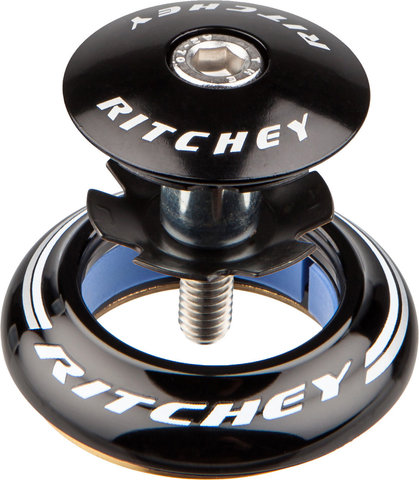

Ritchey WCS IS41/28.6 Drop-in Headset Top Assembly

Use:

Designed for 1 1/8" upper head tube diameters combined with standard 1 1/8" or 1 1/8" - 1.5" tapered forks.

Specifications:

Application:

Cyclocross

Top Bearing:

1 1/8"

Steerer Tube:

1 1/8"

Design:

integrated (IS)

Technical Information:

Bearings:

cartridge bearings (titanium-coated)

Top Outer Diameter:

41 mm

Top Inner Diameter:

28.6 mm

Top Cap:

8.3 mm

Features:

• series: WCS (World Championship Series)
• Sealed bearings

Standardized Headset Identification System (S.H.I.S.):

In order to clarify and bring uniformity to a sea of headset standards, manufacturers Acros, Cane Creek, Hope, Race Face, Reset Racing and Ritchey have agreed upon using a shared nomenclature, which will likely include more participating companies in the future. This system takes into account a combination of frame and fork dimensions. Both the top and bottom parts of the headset are marked by two alphanumeric identifiers. The first identifier indicates the type of headset (External Cup, Zero Stack, Integrated) and head tube diameter. The second identifier - separated from the first by a backslash - indicates the diameter of the steerer tube. When referring to a complete headset, the specifications of both top and bottom parts must be combined.

Manufacturer Number:

33055337018

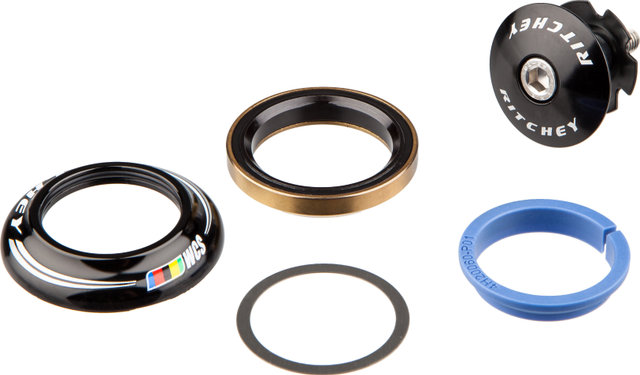

Contents:

• 1 x Ritchey WCS drop-in bearing
• 1 x bearing cover
• 1 x top cap with bolt and star nut
