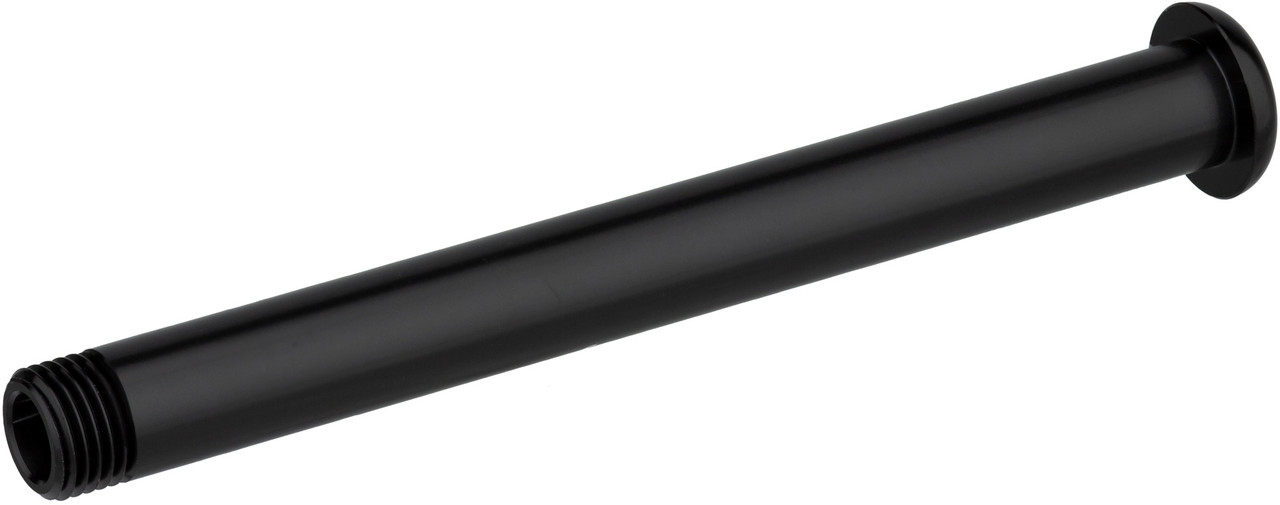

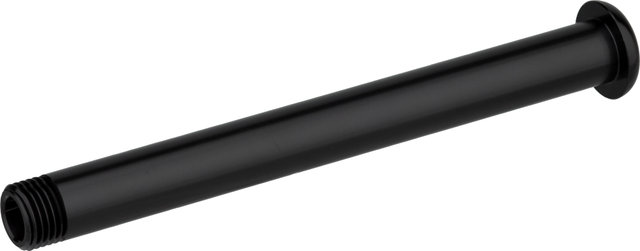

Robert Axle Project Lightning Bolt-On Front Thru-Axle

No ordinary thru-axle: the Lightning Bolt-On Axle from the Robert Axle Project

If you're tired of your old, heavy thru-axle with its chunky lever, the Lightning Bolt-On thru-axle from the Robert Axle Project is a great solution. The Lightning Bolt-On has no lever to get stuck anywhere as well as an aerodynamic design. Thanks to a hollow space, this thru-axle is super light as well as super strong. It is subject to the tightest manufacturing tolerances and will therefore never come loose while riding.

The Robert Axle Project is run by the ultimate thru-axle experts. With their help you will find the right thru-axle - for your trailer, your roller trainer or as a light tuning part for your MTB or road bike.

To find out which thru-axle you need, you must first find out the dimensions of your current thru-axle. Often the length and the thread pitch are noted on the axle itself. If not, print this template from the Robert Axle Project (in original size, do not scale) to determine the relevant data. You can also use the configuration from the Robert Axle Project, which will help you find the correct axle using parameters such as bike brand and over locknut dimension.

Specifications:

Over Locknut Dimension:

Front: 100 mm, 110 mm

Axle Diameter:

15 mm, 12 mm

Technical Information:

Use:

front: 15 x 100 mm, 15 x 110 mm, 12 x 100 mm

Type:

thru-axle

Axle Material:

aluminium (7075)

Features:

• slim profile
• super light
• easy to install and remove with 6 mm hex tool
• CNC precision-machined
• hard anodised for robust durability
• designed, built and quality-tested in the USA (Bend, Oregon), used worldwide

Models:

Type 1:

Thread Pitch:

1.5 mm

Axle Length:

125 mm

Nominal Diameter:

M15

Use:

Spare axle (front wheel 15 x 100 mm)

Manufacturer Number:

LIG507

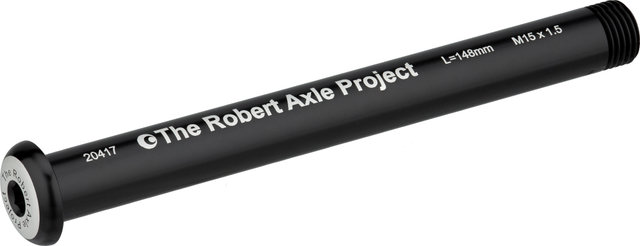

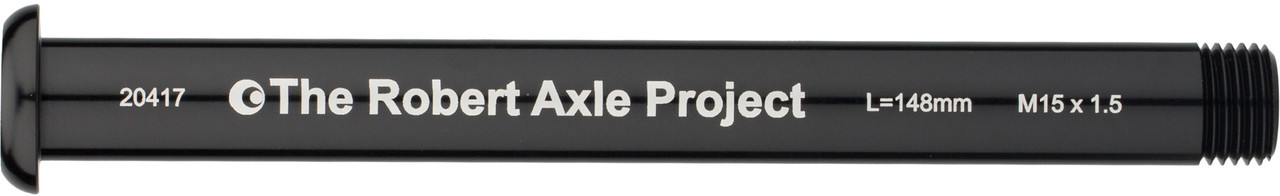

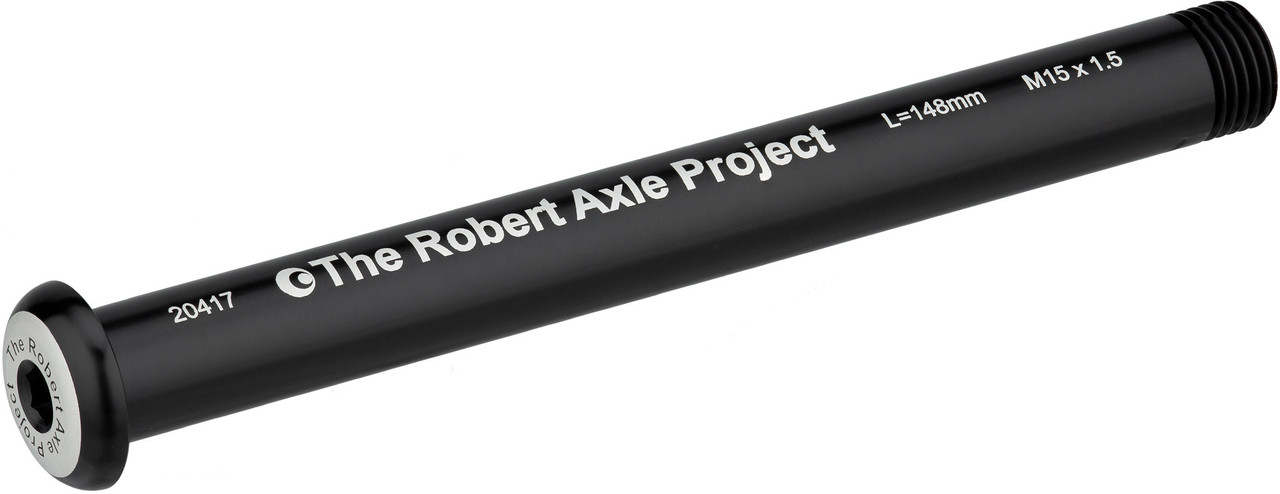

Type 2:

Thread Pitch:

1.5 mm

Axle Length:

148 mm

Nominal Diameter:

M15

Use:

Spare axle (front wheel 15 x 100 mm)

Compatibility:

RockShox forks w/ 15 x 100 mm over locknut dimensions

Manufacturer Number:

LIG501

Type 3:

Thread Pitch:

1.5 mm

Axle Length:

158 mm

Nominal Diameter:

M15

Use:

Spare axle (front wheel 15 x 110 mm)

Compatibility:

RockShox forks w/ 15 x 110 mm Boost over locknut dimensions

Manufacturer Number:

LIG503

Type 4:

Thread Pitch:

1.5 mm

Axle Length:

133 mm

Nominal Diameter:

M14

Use:

Spare axle (front wheel 15 x 100 mm)

Manufacturer Number:

LIG508

Type 5:

Thread Pitch:

1.5 mm

Axle Length:

138 mm

Nominal Diameter:

M14

Use:

Spare axle (front wheel 15 x 100 mm)

Manufacturer Number:

LIG509

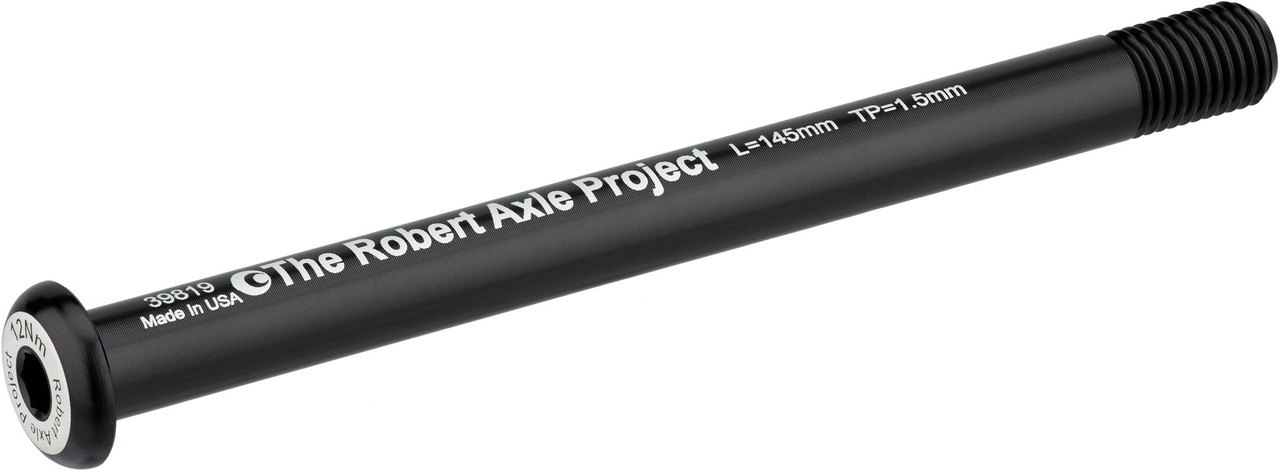

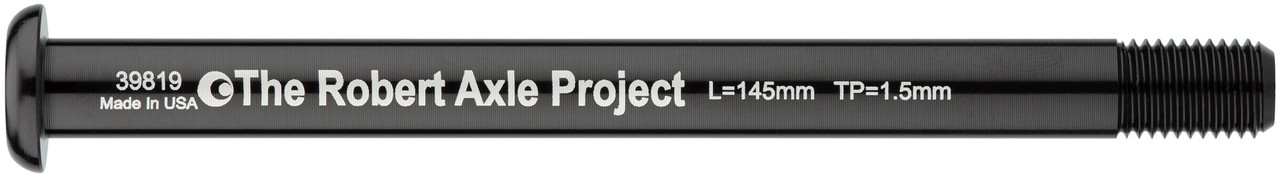

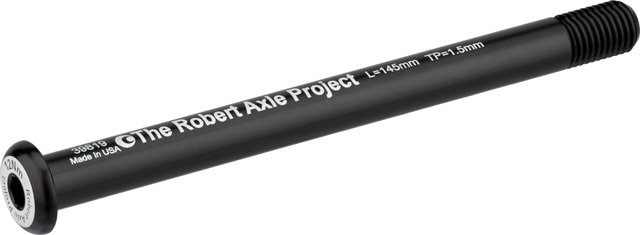

Type 6:

Thread Pitch:

1.5 mm

Axle Length:

145 mm

Nominal Diameter:

M14

Use:

Spare axle (front wheel 15 x 100 mm)

Compatibility:

Fox Racing Shox forks w/ 15 x 100 mm over locknut dimensions

Manufacturer Number:

LIG502

Type 7:

Thread Pitch:

1.5 mm

Axle Length:

155 mm

Nominal Diameter:

M14

Use:

Spare axle (front wheel 15 x 110 mm)

Compatibility:

Fox Racing Shox forks w/ 15 x 110 mm Boost over locknut dimensions

Manufacturer Number:

LIG504

Type 8:

Thread Pitch:

1.0 mm

Axle Length:

123 mm, 117 mm with spacer

Nominal Diameter:

M12

Use:

Spare axle (front wheel 12 x 100 mm)

Manufacturer Number:

LIG506

Type 9:

Thread Pitch:

1.5 mm

Axle Length:

125 mm

Nominal Diameter:

M12

Use:

Spare axle (front wheel 12 x 100 mm)

Manufacturer Number:

LIG505

Type 10:

Thread Pitch:

1.5 mm

Axle Length:

120 mm

Nominal Diameter:

M12

Use:

Spare axle (front wheel 12 x 100 mm)

Manufacturer Number:

LIG511

Type 11:

Use:

Spare axle (front wheel 12 x 100 mm)

Compatibility:

FOCUS R.A.T. Systems w/ 12 x 100 mm over locknut dimension

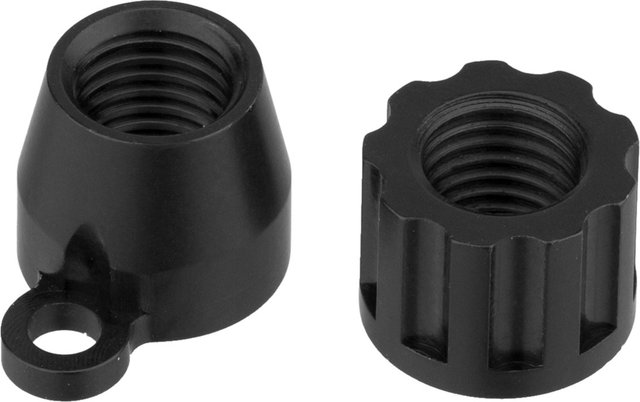

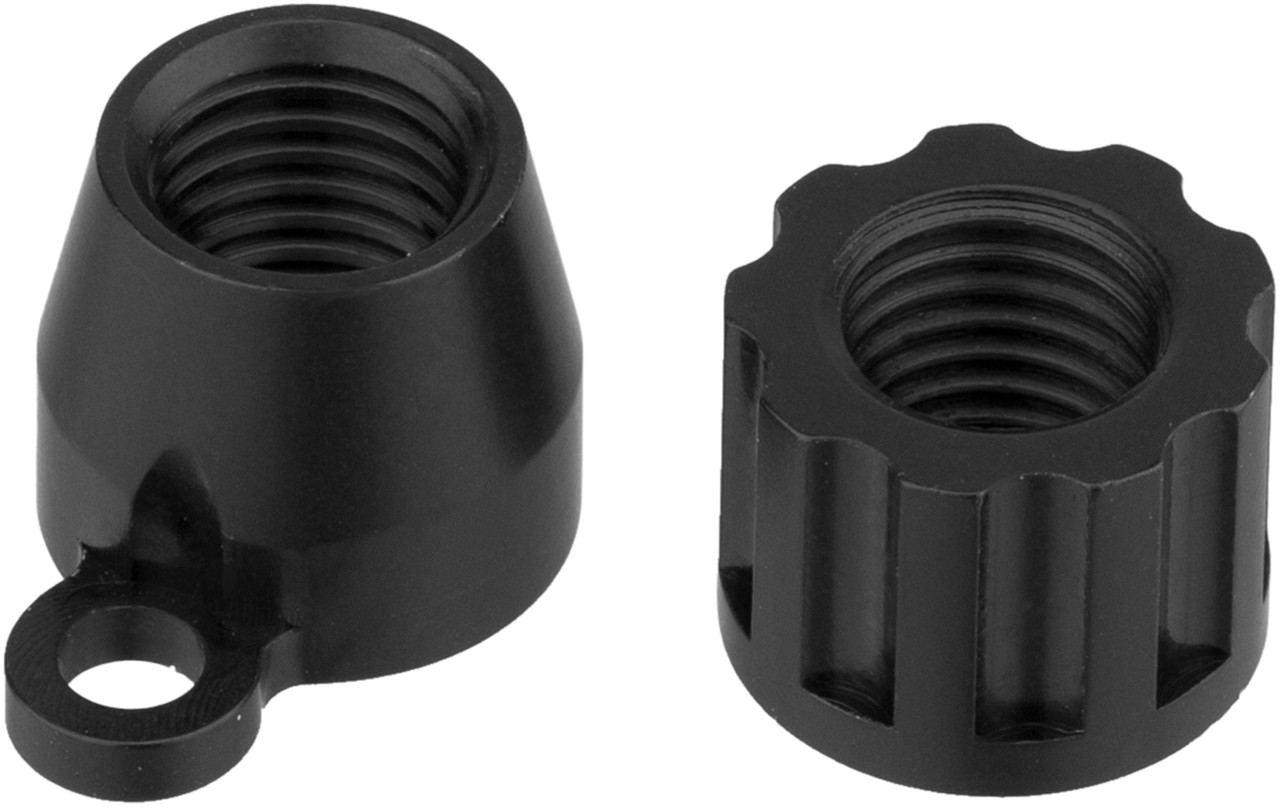

Note:

Comes with nut, which replaces the original R.A.T. nut

Manufacturer Number:

LIG510.F

Type 12:

Use:

Spare axle (front wheel 12 x 100 mm)

Compatibility:

Mavic Speed Releases with 12 x 100 mm over locknut dimension

Manufacturer Number:

LIG518

Contents:

• 1 x Robert Axle Project Lightning Bolt-On Front thru-axle
• 1 x 6 mm spacers (Type 8 only)
• 1 x nut (Type 11 only)
