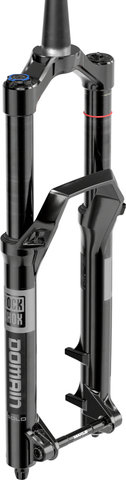

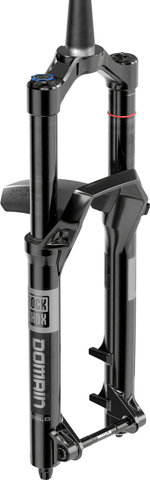

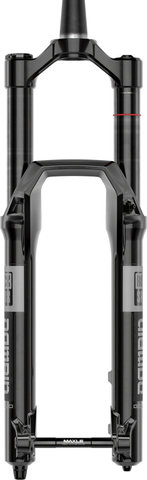

RockShox Domain Gold Isolator RC DebonAir Boost 27.5" Suspension Fork

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please note the guidelines for component replacement on CE-marked e-bikes/pedelecs with pedal assist.

Specifications:

Application:

All Mountain, Enduro

Wheel Size:

27.5" (650B)

Suspension Type:

air

Travel:

150 mm, 160 mm, 170 mm, 180 mm

Steerer Tube:

1 1/8" – 1.5" tapered

Axle Type:

thru-axle

Wheel Standard:

15 x 110 mm (Boost)

Brake Mount:

Disc PM8 (direct mount 200 mm)

Technical Information:

Offset:

44 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Over Locknut Dimension:

110 mm

Stanchion Tube Diameter:

38 mm

Material Steerer Tube:

aluminium

Crown Material:

aluminium

Stanchion Tube Material:

aluminium

Lower Tube Material:

magnesium

Adjustment Options:

Compression:

3-Position Adjust

Rebound:

yes

Suspension Stiffness:

via air pressure

Remote:

no

Travel Adjustment:

no

Approved For:

Tyre Size (max.):

81 mm (tyre width)

Note:

For individual tyres, tyre clearance must be checked with the fork fully compressed and the tyre fully inflated. It should be at least 6 mm all around.

Rotor Size (max.):

220 mm

Weight Limit:

169 kg (system weight)

Features:

• 27.5" -suspension fork for enduro mountain bikes with and without electric drive
• Isolator RC shock with 3 compression settings (Open / Pedal / Firm) and externally adjustable rebound
• 38 mm stanchion tube diameter for more stiffness and safety
• Adjustable DebonAir air suspension for smooth responsiveness
• Maxima Plush damping oil for low friction and quiet performance
• With long-lasting Maxima Plush Dynamic Suspension Lube for low friction and good durability
• Crown adjust
• Fork crown outer diameter: 59 mm
• Comes with matching RockShox fender
• Maximum of three tokens for customization possible
• Number of tokens already installed: 2 (150 mm, 160 mm), 1 (170 mm), 0 (180 mm)

Models:

150 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

150 mm

Offset:

44 mm

Axle to Crown:

547 mm

Model ID:

FS-DOMN-GRC-C1

Manufacturer Numbers:

00.4021.081.003

160 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

160 mm

Offset:

44 mm

Axle to Crown:

557 mm

Model ID:

FS-DOMN-GRC-C1

Manufacturer Numbers:

00.4021.081.002

170 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

170 mm

Offset:

44 mm

Axle to Crown:

567 mm

Model ID:

FS-DOMN-GRC-C1

Manufacturer Numbers:

00.4021.081.001

180 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

180 mm

Offset:

44 mm

Axle to Crown:

577 mm

Model ID:

FS-DOMN-GRC-C1

Manufacturer Numbers:

00.4021.081.000

Contents:

• 1 x RockShox Domain Gold Isolator RC DebonAir Boost 27.5" suspension fork
• 1 x RockShox Maxle Stealth thru-axle
• 1 x RockShox fender
• 2 x RockShox Bottomless Token
• 1 x star nut
• 2 x screw
