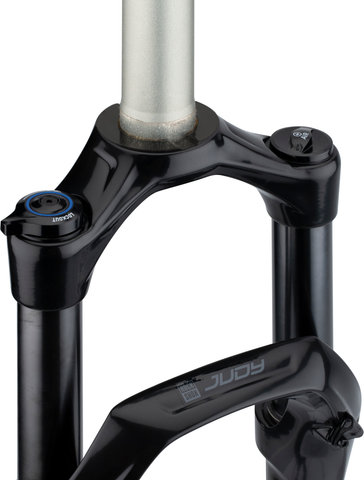

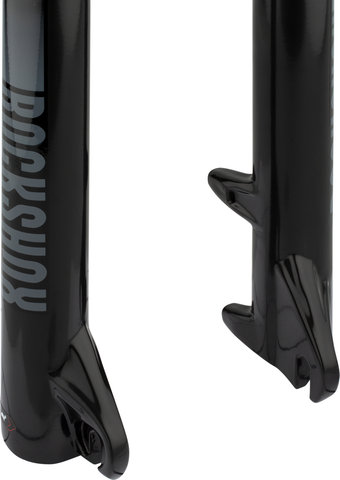

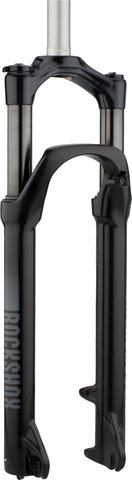

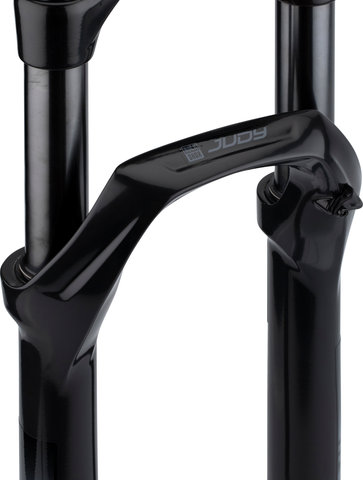

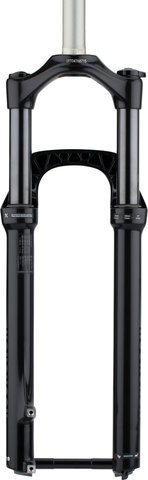

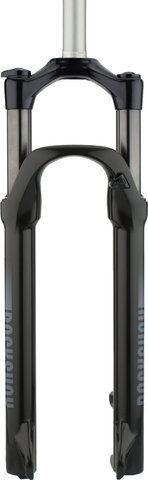

RockShox Judy Silver TK Solo Air 29" Suspension Fork
Item number: 76282
Guidelines for Replacing E-bike Components:
Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.Specifications:
- Application:
- Cross Country, All Mountain
- Wheel Size:
- 29"
- Suspension Type:
- air
- Travel:
- 100 mm
- Steerer Tube:
- 1 1/8"
- Axle Type:
- quick release (9 x 100 mm)
- Brake Mount:
- disc PM6 (direct mount 160 mm)
Technical Information:
- Offset:
- 51 mm
- Steerer Tube Length:
- 265 mm
- Steerer Tube Diameter (Stem):
- 28.6 mm
- Steerer Tube Diameter (Crown Race):
- 30 mm
- Axle to Crown:
- 509 mm
- Over Locknut Dimension:
- 100 mm
- Stanchion Tube Diameter:
- 30 mm
- Steerer Tube Material:
- Aluminium
- Crown Material:
- Aluminium
- Stanchion Tube Material:
- steel
- Lower Tube Material:
- magnesium
Adjustment Options:
- Compression:
- yes
- Rebound:
- yes
- Suspension Stiffness:
- air pressure adjust
- Remote:
- no
- Travel Adjustment:
- no
Approved For:
- Tyre Size (max.):
- 29 x 2.5"
- Note:
- For individual tyres, the tyre clearance must be checked with the fork fully compressed. It should be at least 6 mm measured from the fork crown.
- Rotor Size (max.):
- 185 mm
Features:
- TurnKey lockout damping
- crown adjust
- external rebound adjustment
Technology:
TurnKey™:This exclusive technology acts as your personal bodyguard. When you ride over a large rock with a locked suspension fork, TurnKey™'s patented Blow-Off Design absorbs the unexpected blow in an instant. That's pretty honourable, when you think about it. Compatible with PushLoc and PopLoc remote controls.
Solo Air™:
Solo Air™ is like a Buddhist monk. The enlightened design allows the positive and negative air chambers of your suspension fork to be filled with air at the same time using only one Schrader valve. So there is a perfect balance between them, like Yin and Yang. For a comfortable and predictable ride, you can adjust the easiest suspension fork on the market in seconds.
Models:
100 mm / 1 1/8 / 9 x 100 mm / 51 mm:- Travel:
- 100 mm
- Steerer Tube:
- 1 1/8"
- Steerer Tube Diameter (Stem):
- 28.6 mm
- Offset:
- 51 mm
- Brake Mount:
- disc PM6 (direct mount 160 mm)
- Axle Type:
- quick release (9 x 100 mm)
- Model ID:
- FS-JDYS-TK-A3
- Manufacturer Number:
- 00.4020.555.014
Contents:
- 1 x RockShox Judy Silver TK Solo Air suspension fork

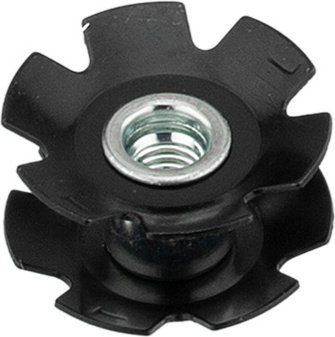

- 1 x star nut
