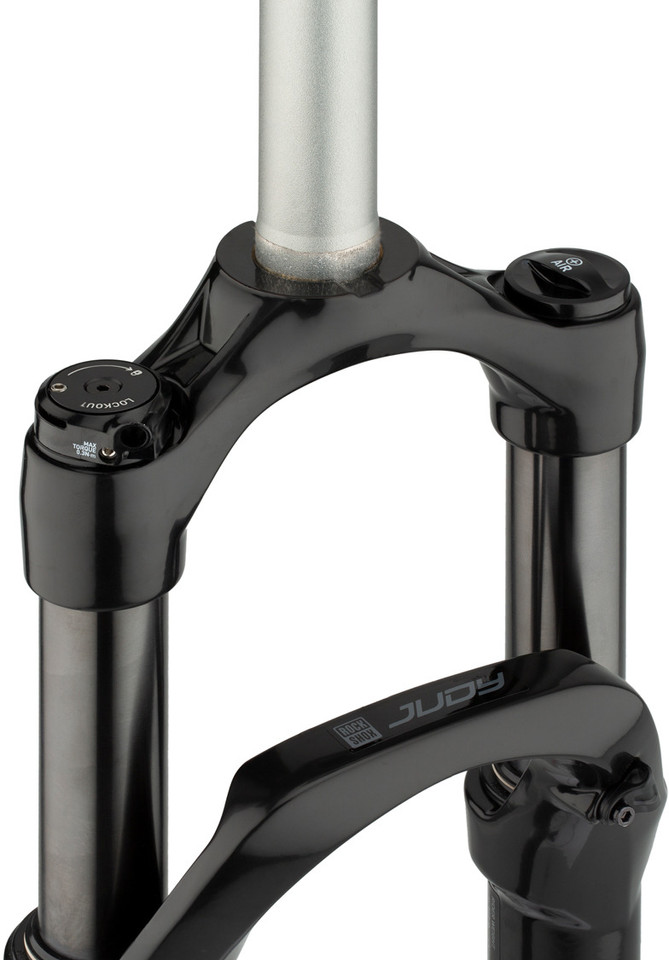

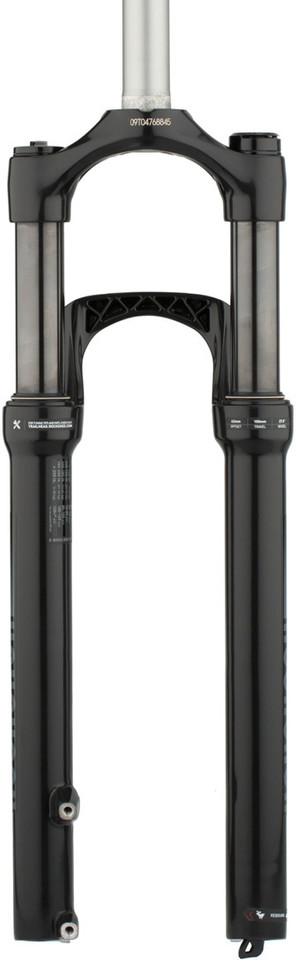

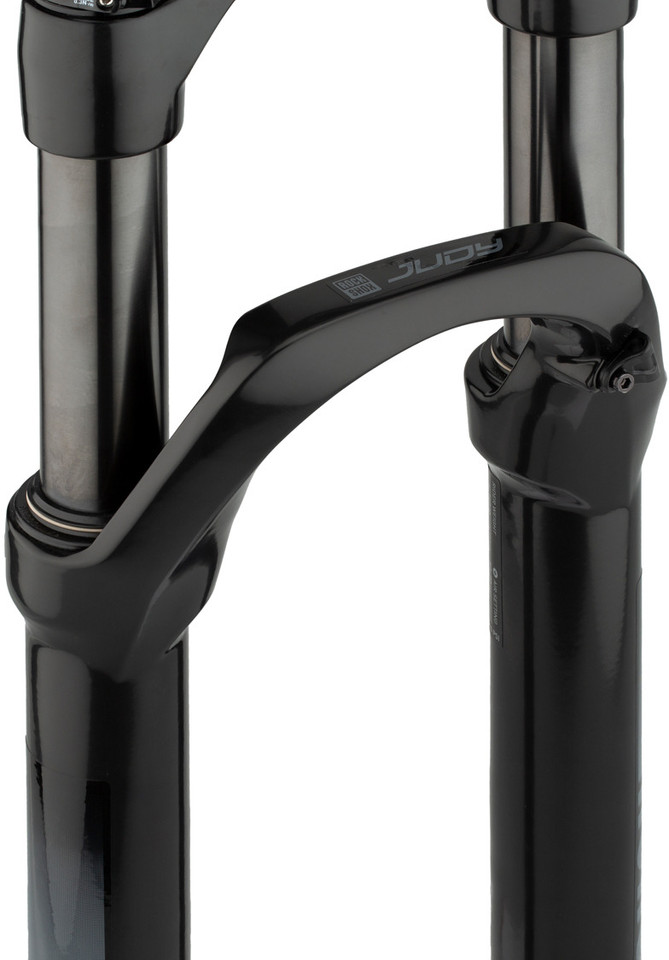

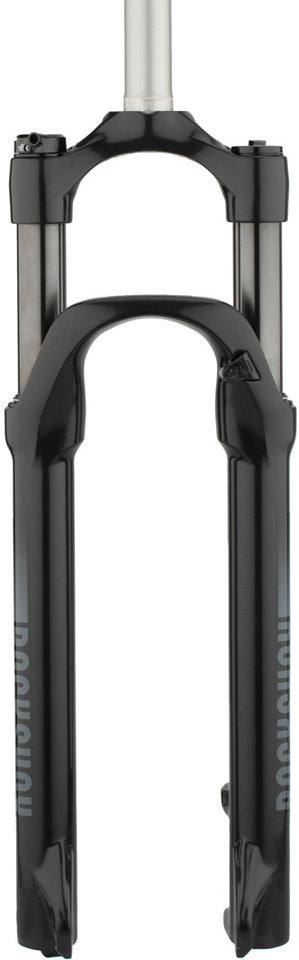

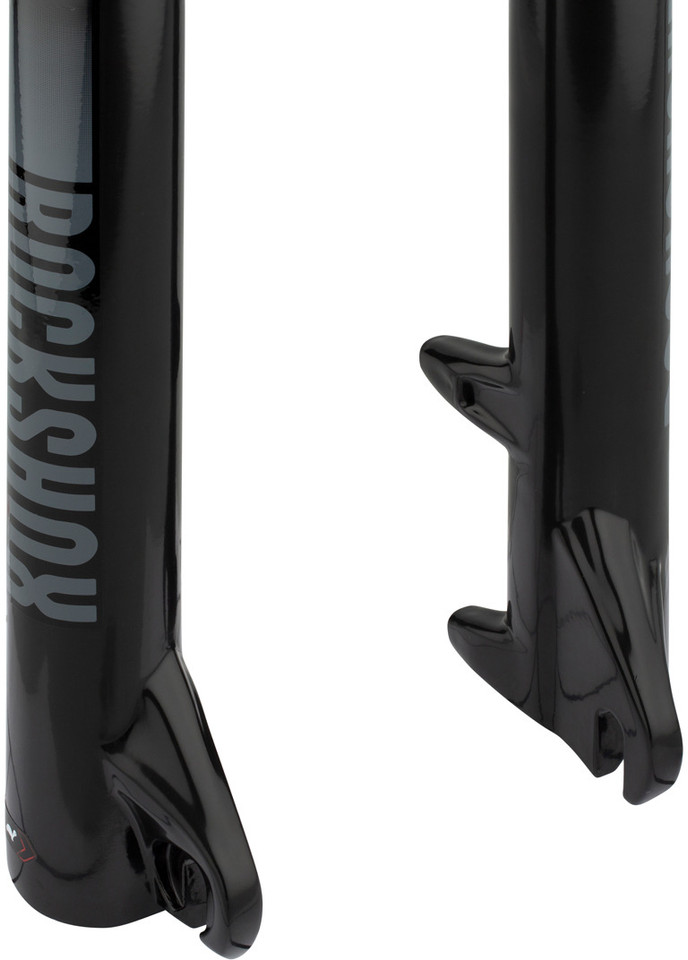

RockShox Judy Silver TK Solo Air PopLoc Remote 27.5" Suspension Fork

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

Cross Country, All Mountain

Wheel Size:

27.5" (650B)

Suspension Type:

air

Travel:

100 mm, 120 mm

Steerer Tube:

1 1/8"

Axle Type:

quick release (9 x 100 mm)

Brake Mount:

disc PM6 (direct mount 160 mm)

Technical Information:

Offset:

42 mm

Steerer Tube Length:

265 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

30 mm

Axle to Crown:

490 mm (100 mm), 510 mm (120 mm)

Over Locknut Dimension:

100 mm

Stanchion Tube Diameter:

30 mm

Steerer Tube Material:

Aluminium

Crown Material:

Aluminium

Stanchion Tube Material:

steel

Lower Tube Material:

magnesium

Adjustment Options:

Compression:

yes

Rebound:

yes

Suspension Stiffness:

air pressure adjust

Remote:

yes (PopLoc)

Travel Adjustment:

no

Approved For:

Tyre Size (max.):

27.5 x 2.5"

Note:

For individual tyres, the tyre clearance must be checked with the fork fully compressed. It should be at least 6 mm measured from the fork crown.

Rotor Size (max.):

185 mm

Features:

• TurnKey lockout damping
• external rebound adjustment
• right PopLoc remote

Technology:

TurnKey™:
This exclusive technology acts as your personal bodyguard. When you ride over a large rock with a locked suspension fork, TurnKey™'s patented Blow-Off Design absorbs the unexpected blow in an instant. That's pretty honourable, when you think about it. Compatible with PushLoc and PopLoc remote controls.

Solo Air™:
Solo Air™ is like a Buddhist monk. The enlightened design allows the positive and negative air chambers of your suspension fork to be filled with air at the same time using only one Schrader valve. So there is a perfect balance between them, like Yin and Yang. For a comfortable and predictable ride, you can adjust the easiest suspension fork on the market in seconds.

Models:

100 mm / 1 1/8 / 9 x 100 mm / 42 mm:

Travel:

100 mm

Steerer Tube:

1 1/8"

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

42 mm

Brake Mount:

disc PM6 (direct mount 160 mm)

Axle Type:

quick release (9 x 100 mm)

Model ID:

FS-JDYS-TK-A3

Manufacturer Number:

00.4020.555.012

120 mm / 1 1/8 / 9 x 100 mm / 42 mm:

Travel:

120 mm

Steerer Tube:

1 1/8"

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

42 mm

Brake Mount:

disc PM6 (direct mount 160 mm)

Axle Type:

quick release (9 x 100 mm)

Model ID:

FS-JDYS-TK-A3

Manufacturer Number:

00.4020.555.013

Contents:

• 1 x RockShox Judy Silver TK Solo Air suspension fork
• 1 x RockShox PopLoc handlebar remote (right)
• 1 x star nut
