RockShox Lyrik Select RC DebonAir+ Boost 27.5" Suspension Fork

The RockShox Lyrik Select RC DebonAir+ Boost Suspension Fork for 27.5" wheels is a trail all-rounder

The RockShox Lyrik Boost 27.5" suspension fork is suited for all-mountain to enduro tours and comes in the Select version with Charger RC damper and DebonAir+ air spring. It allows you to adjust the low-speed compression damping. The DebonAir+ air spring impresses with excellent response and confidence-inspiring control. With a 35 mm stanchion tube diameter, the Lyrik strikes the right balance between stability and low weight. The Maxima Plush Dynamic suspension fluid scores with high durability, low friction and ensures consistent performance.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain, Enduro

Wheel Size:

27.5" (650B)

Suspension Type:

air

Travel:

140 mm, 150 mm, 160 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Axle Type:

thru-axle

Wheel Standard:

15 x 110 mm (Boost)

Brake Mount:

disc PM7 (direct mount 180 mm)

Technical Information:

Offset:

37 mm, 44 mm

Steerer Tube Length:

265 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Over Locknut Dimension:

110 mm

Stanchion Tube Diameter:

35 mm

Steerer Tube Material:

Aluminium

Crown Material:

Aluminium

Stanchion Tube Material:

Aluminium

Lower Tube Material:

magnesium

Adjustment Options:

Compression:

low-speed

Rebound:

yes

Suspension Stiffness:

air pressure adjust

Remote:

no

Travel Adjustment:

no

Approved For:

Tyre Size (max.):

27.5 x 3.1"

Note:

For individual tyres, tyre clearance must be checked with the fork fully compressed and the tyre fully inflated. It should be at least 6 mm all around.

Rotor Size (max.):

220 mm

Features:

• Charger RC damper with low-speed compression setting
• DebonAir+ air spring with more volume than DebonAir absorbs smaller bumps even better and at the same time stands higher in the suspension travel
• 35 mm stanchion tube diameter for a good ratio of stiffness and low weight
• with Maxima Plush Dynamic Suspension Lube for low friction and good durability
• crown adjust
• torque cap dropouts for increased stiffness
• with screw-on torque cap adapters for simplified use with standard end caps
• compatible with retrofittable pressure relief valves for adjusting the air pressure in the immersion tubes to the environment (not included)
• also suitable for e-bikes
• fork crown outer diameter: 59 mm

Models:

140 mm / 1.5 tapered / 15 x 110 mm / 37 mm:

Travel:

140 mm

Offset:

37 mm

Axle to Crown:

532 mm

Model ID:

FS-LYRK-ULT-D1

Manufacturer Number:

00.4020.693.005

140 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

140 mm

Offset:

44 mm

Axle to Crown:

532 mm

Model ID:

FS-LYRK-ULT-D1

Manufacturer Number:

00.4020.693.002

150 mm / 1.5 tapered / 15 x 110 mm / 37 mm:

Travel:

150 mm

Offset:

37 mm

Axle to Crown:

542 mm

Model ID:

FS-LYRK-ULT-D1

Manufacturer Number:

00.4020.693.004

150 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

150 mm

Offset:

44 mm

Axle to Crown:

542 mm

Model ID:

FS-LYRK-ULT-D1

Manufacturer Number:

00.4020.693.001

160 mm / 1.5 tapered / 15 x 110 mm / 37 mm:

Travel:

160 mm

Offset:

37 mm

Axle to Crown:

552 mm

Model ID:

FS-LYRK-ULT-D1

Manufacturer Number:

00.4020.693.003

160 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

160 mm

Offset:

44 mm

Axle to Crown:

552 mm

Model ID:

FS-LYRK-ULT-D1

Manufacturer Number:

00.4020.693.000

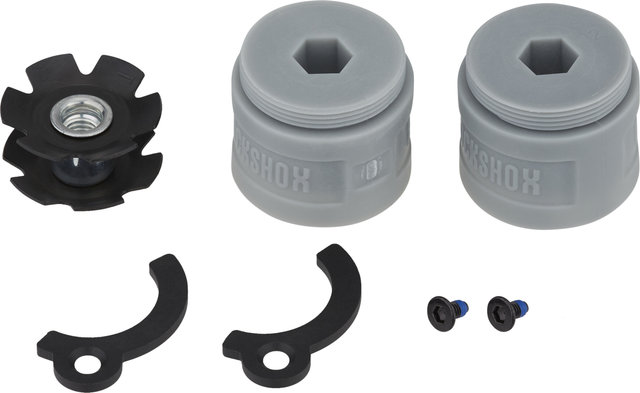

Contents:

• 1 x RockShox Lyrik Select RC DebonAir+ Boost 27.5" Suspension Fork

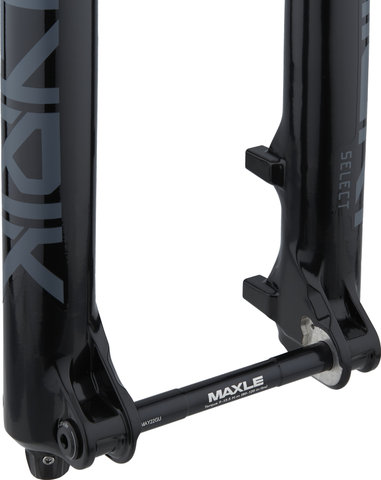

• 1 x RockShox Maxle Stealth thru-axle
• 1 x RockShox fender
• 2 x RockShox bottomless tokens
• 1 x star nut
• 2 x RockShox end cap adapters
• 2 x bolts
