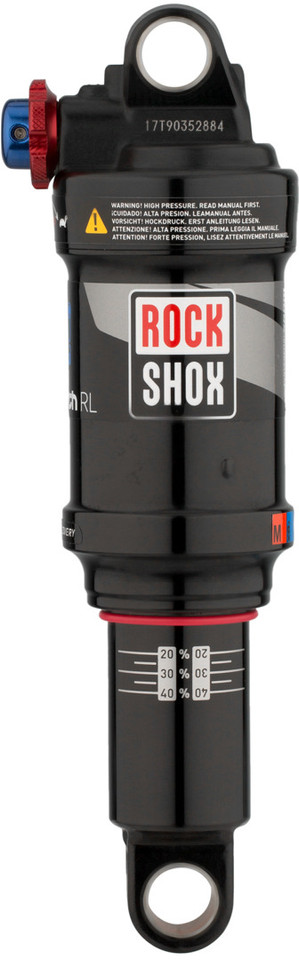

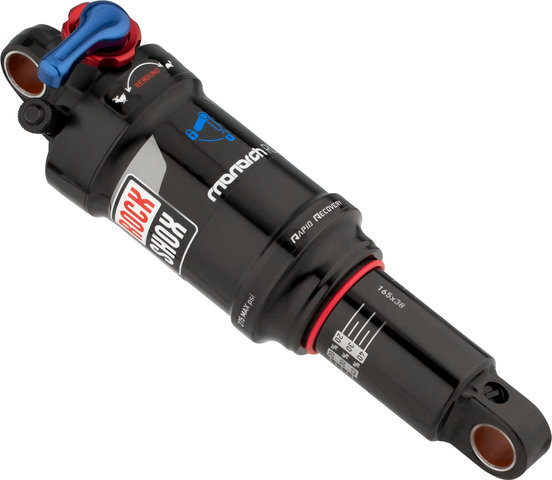

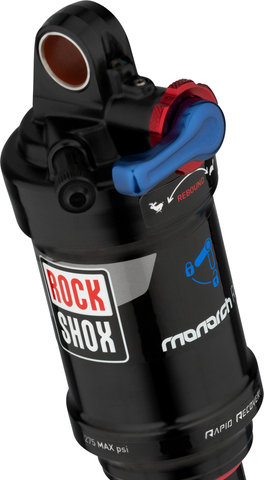

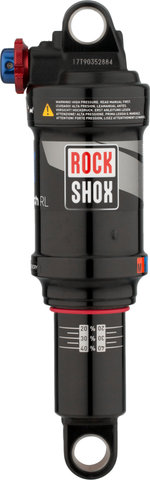

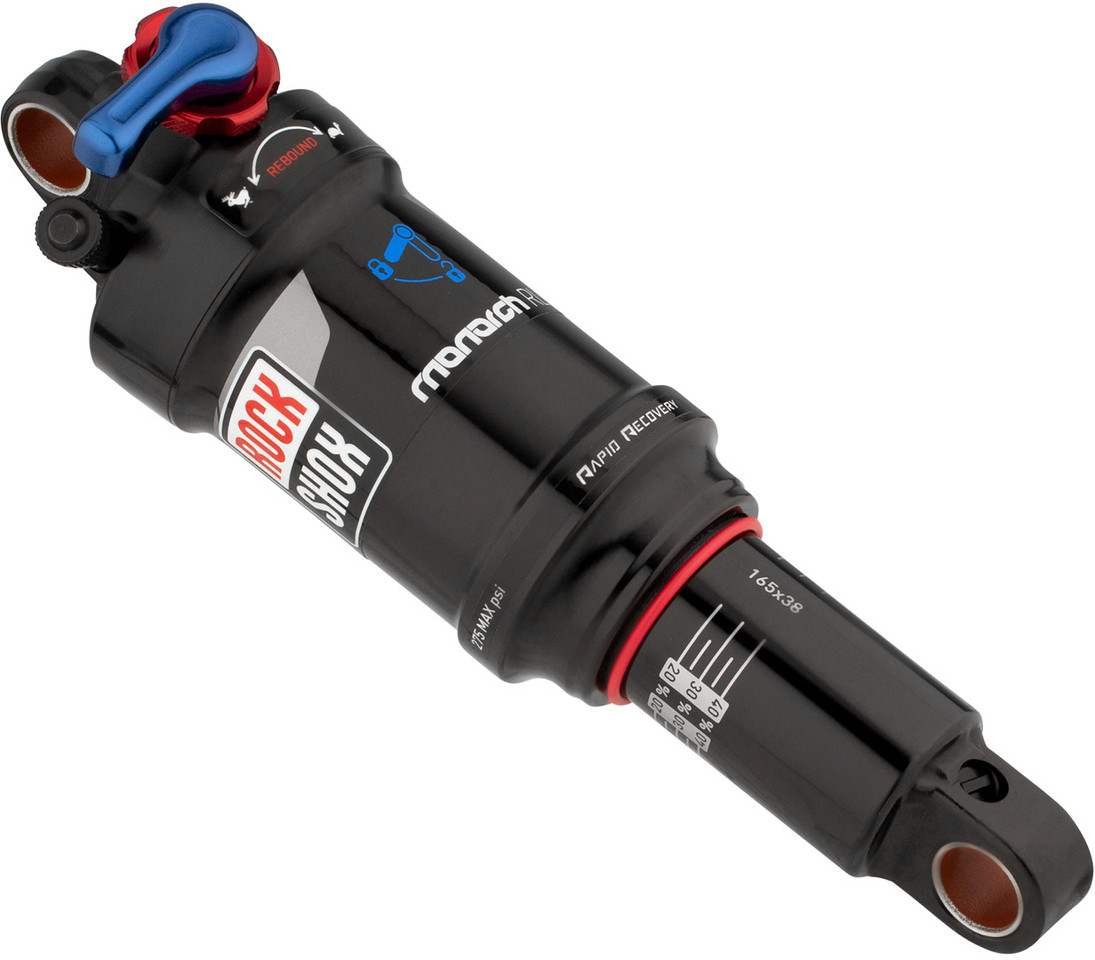

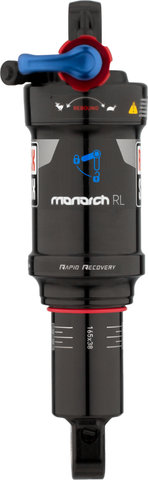

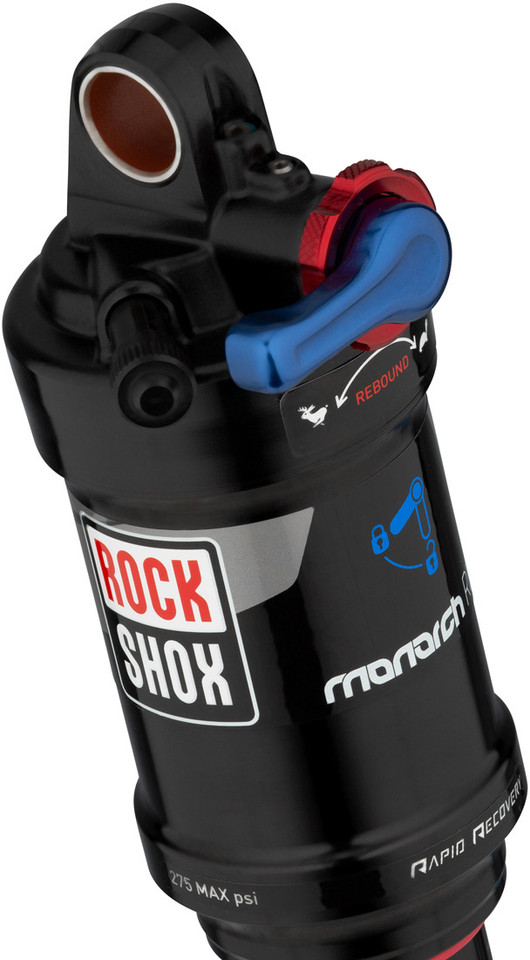

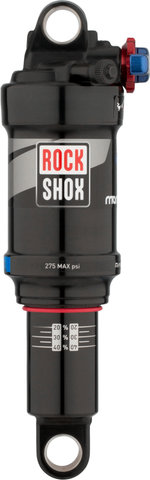

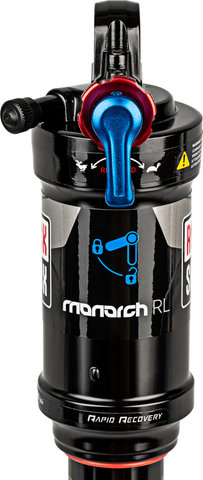

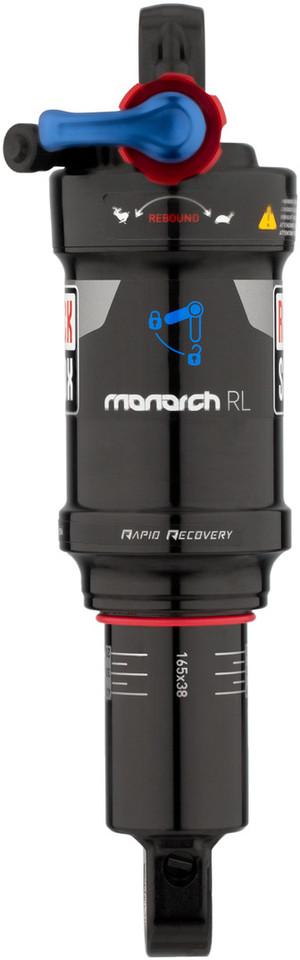

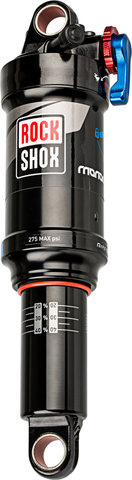

RockShox Monarch RL Shock

Specifications:

Application:

MTB

Suspension Type:

Solo Air

Technical Information:

Adjustment Options:

air pressure via Schrader valve, external rebound adjustment, 2-position compression (open, pedal)

Shaft Material:

Aluminium 7075

Body Material:

Aluminium

Size x Stroke:

165 x 38 (6.5 x 1.5" ) / 184 x 44 (7.25 x 1.75" ) / 190 x 51 mm (7.5 x 2.0" )

Damping:

Dual Flow

Rebound:

Tune Mid

Compression:

Tune Mid

Technology:

Dual Flow:
Good shock absorption must not fail even on rocky terrain and after steep descents. Therefore, Dual Flow uses independent shock circuits for different pressure levels for large and small impacts. An adjustment knob allows you to set the rebound at the beginning stroke (less sag) and a preset rebound at the end stroke (more sag) ensures perfect shock absorption on any terrain. Now adjusting the shock to your requirements couldn't be easier. In the RockShox world, this means simply clicking on the turtle or the " Jackalope" .

Damping Markings:
If you don't adjust your damping properly, you might as well be riding someone else's bike. But why waste plastic clips or rulers to adjust the suspension again and again? For easy and accurate setup of the perfect suspension, the damper markings are printed directly on the suspension fork stanchions and the damper housing. So you can give your mom back her plastic clip and ruler.

Solo Air™:
Solo Air™ is like a Buddhist monk. The enlightened design allows the positive and negative air chambers of your suspension fork to be filled with air at the same time using only one Schrader valve. So there is a perfect balance between them, like Yin and Yang. For a comfortable and predictable ride, you can adjust the easiest suspension fork on the market in seconds.

Rapid Recovery™:
Who wouldn't wish for a larger travel for successive bumps? Thanks to the Rapid Recovery™ System, the damper returns to its original position more quickly after successive bumps, allowing the wheel to grip the ground with greater precision. This more active damping system does not fail and ensures a ride with higher and softer spring stiffness. With Rapid Recovery, the rider benefits from greater suspension travel for a smoother and more controlled ride with every bump.

Manufacturer Numbers:

165 mm x 38 mm / tune mid:

00.4118.123.002

184 mm x 44 mm / tune mid:

00.4118.123.003

190 mm x 51 mm / tune mid:

00.4118.123.004

Contents:

• 1 x RockShox Monarch RL rear shock

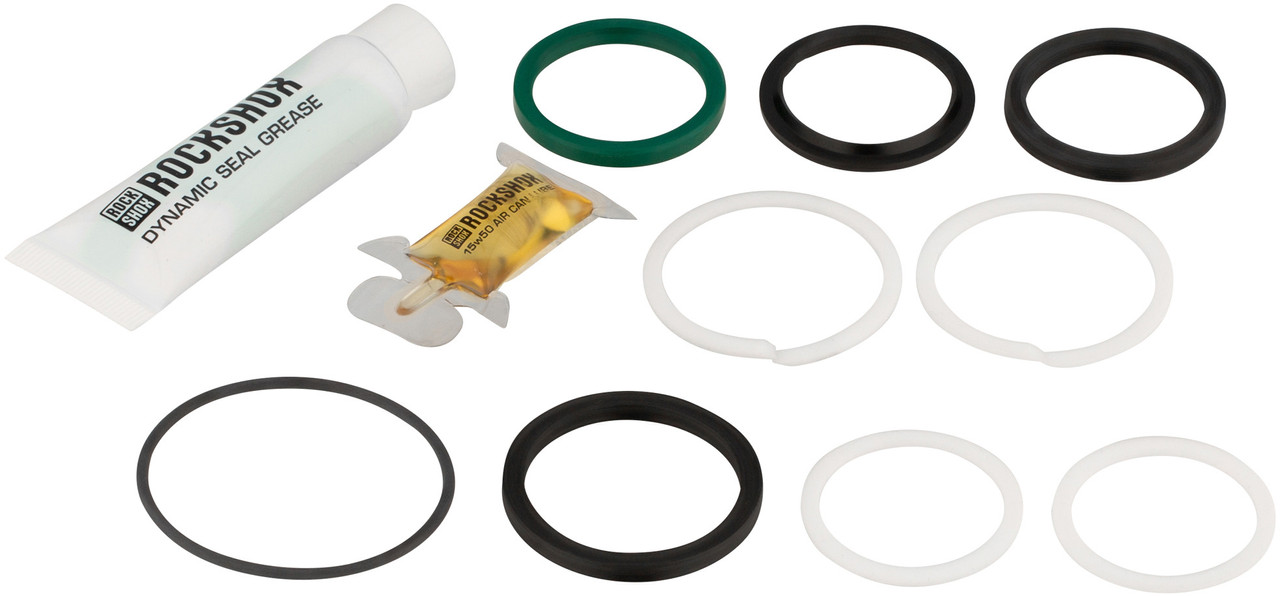

• 1 x RockShox service kit
• not incl. bushings
