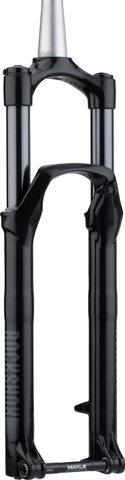

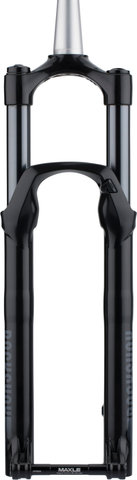

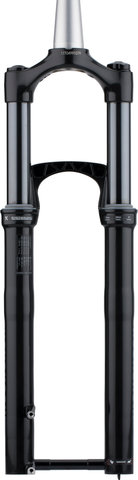

RockShox Recon Silver RL Solo Air Boost 29" Suspension Fork

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

Cross Country

Wheel Size:

29"

Suspension Type:

air

Travel:

100 mm, 120 mm, 130 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Axle Type:

thru-axle (15 x 110 mm)

Brake Mount:

disc PM6 (direct mount 160 mm)

Technical Information:

Offset:

51 mm

Steerer Tube Length:

265 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Axle to Crown:

513 mm (100 mm), 533 mm (120 mm), 543 mm (130 mm)

Over Locknut Dimension:

110 mm

Stanchion Tube Diameter:

32 mm

Steerer Tube Material:

Aluminium

Crown Material:

Aluminium

Stanchion Tube Material:

steel

Lower Tube Material:

magnesium

Adjustment Options:

Compression:

low-speed to lock

Rebound:

yes

Suspension Stiffness:

air pressure adjust

Remote:

no

Travel Adjustment:

no

Approved For:

Tyre Size (max.):

29 x 3.2"

Note:

For individual tyres, the tyre clearance must be checked with the fork fully compressed. It should be at least 6 mm measured from the fork crown.

Rotor Size (max.):

220 mm

Features:

• Motion Control damping with adjustment from low speed compression to lock
• crown adjust
• external rebound adjustment

Technology:

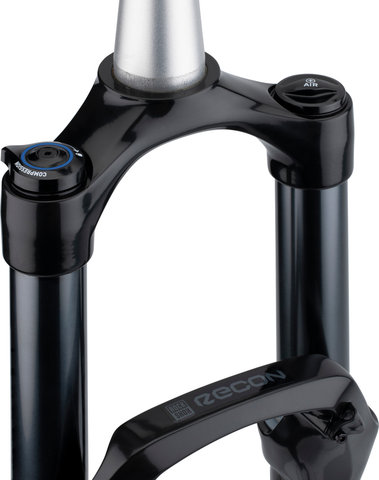

Solo Air™:
Solo Air™ is like a Buddhist monk. The enlightened design allows the positive and negative air chambers of your suspension fork to be filled with air at the same time using only one Schrader valve. So there is a perfect balance between them, like Yin and Yang. For a comfortable and predictable ride, you can adjust the easiest suspension fork on the market in seconds.

Motion Control™:
Imagine riding on the moon. Gentle hills, crushed rock blasted out of craters. Crater. Unfortunately, you can't ride on the moon. But even on earth there is much inhospitable terrain. But we have gravity, which means you need suspension that can handle climbs and descents equally well. With Motion Control damping technology, exactly that is possible. You can't ride the moon, but with Motion Control you can make gravity yours.

Models:

100 mm / 1.5 tapered / 15 x 110 mm / 51 mm:

Travel:

100 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

51 mm

Brake Mount:

disc PM6 (direct mount 160 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-RCNS-RL-D1

Manufacturer Number:

00.4020.557.000

120 mm / 1.5 tapered / 15 x 110 mm / 51 mm:

Travel:

120 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

51 mm

Brake Mount:

disc PM6 (direct mount 160 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-RCNS-RL-D1

Manufacturer Number:

00.4020.557.001

130 mm / 1.5 tapered / 15 x 110 mm / 51 mm:

Travel:

130 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

51 mm

Brake Mount:

disc PM6 (direct mount 160 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-RCNS-RL-D1

Manufacturer Number:

00.4020.557.002

Contents:

• 1 x RockShox Recon Silver RL Solo Air Boost suspension fork

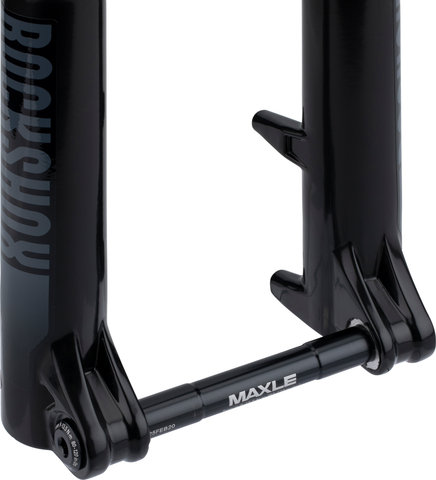

• 1 x RockShox Maxle Stealth thru-axle

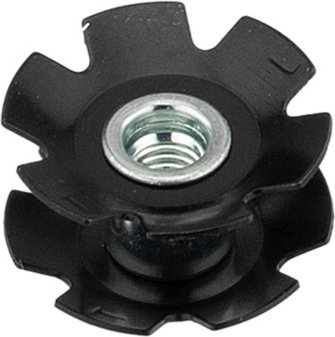

• 1 x star nut
