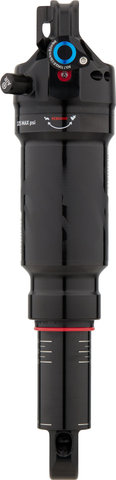

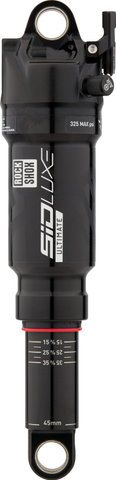

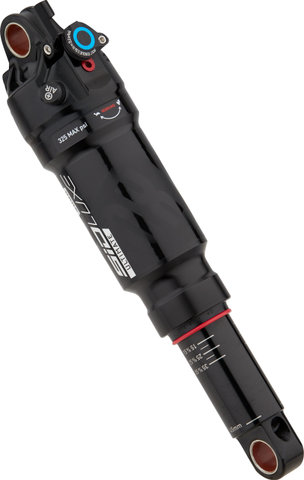

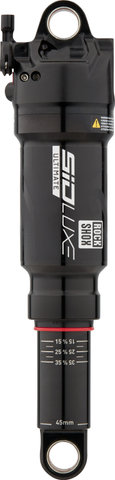

RockShox SIDLuxe Ultimate 3P Solo Air Remote Shock for Santa Cruz Blur 4 TR

The RockShox SIDLuxe Ultimate 3P Solo Air Remote rear shock with 3-position adjustment for your Blur 4 TR from Santa Cruz

This Ultimate-level RockShox SIDLuxe air shock offers 3-position compression adjustment via remote and is compatible with your Santa Cruz Blur 4 full-suspension cross-country bike from model year 2022 onwards, although it is recommended for the long-stroke TR version due to the installation dimensions. Above all, it is made for speed. The Solo Air air spring provides more linear spring characteristics. In addition to the tried and tested " Open" position for high-speed descents and " Lock" for sprints, where you need an efficient power transmission, the third " Pedal" position offers you the sweet spot in between for technical climbs where you need propulsion but also comfort. Thanks to the increased oil flow, the high-speed compression (in the open and pedal positions) in particular reacts quickly to unexpected hits. As a result, the bottom-out bumper is also larger and has a conical shape so that you retain control near the full suspension travel. A matching TwistLoc remote twist grip is not included, so it is best to directly order it together with the shock. Please note that if you combine the shock with a remote suspension fork, this must also have 3-position adjustment for the remote control of both elements to work.

Specifications:

Application:

Cross Country

Suspension Type:

air

Size x Stroke:

190 x 45 mm

Technical Information:

Damping System:

RLR

Cable Routing:

Out Pull

Bushing Material:

steel

Body Material:

aluminium

Shaft Material:

aluminium

Air Chamber Volume:

Solo Air

Adjustment Options:

Compression:

Tune C30

Rebound:

Tune R57

Remote:

yes, not included

Approved For:

Air Pressure (max.):

325 psi

Compatibility:

• Santa Cruz Blur 4 TR mountain bike from model year 2022 onwards
• TwistLoc 3 Position Remote
• when combined with a remote suspension fork, this must also have 3-position adjustment

Features:

• 3-position remote-controlled air shock for the Santa Cruz Blur 4 in the TR version
• 3 compression settings (Open / Pedal / Lock), which can be selected via remote
• Pedal position for technical climbs, Open position for descents, Lock position for sprints
• external rebound adjustment with 11 clicks
• increased oil flow for lightning-fast response to sudden impacts
• larger, tapered bottom-out bumper for better control near full travel
• light and efficient
• with Solo Air air spring for more linear spring characteristics
• harmonises perfectly with SID or SID SL 3P suspension forks
• 1 volume spacer installed
• Pedal Tune M2
• Lockout Force X8
• Check Tune STD

Manufacturer Number:

00.4118.419,025

Contents:

• 1 x RockShox SIDLuxe Ultimate 3P Solo Air Remote rear shock for Santa Cruz Blur 4 TR

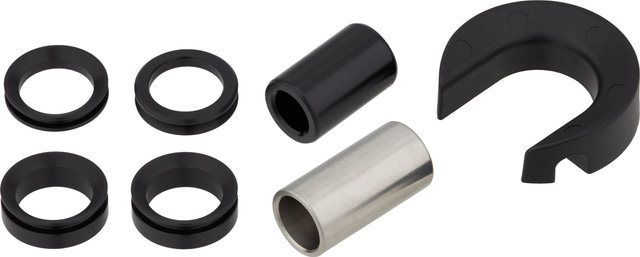

• 2 x RockShox bushing set
• 1 x RockShox Bottomless Token volume spacer
• 1 x RockShox Decal

Order Together:

• TwistLoc Ultimate Remote 3 Position or
• TwistLoc Base Remote 3 Position
