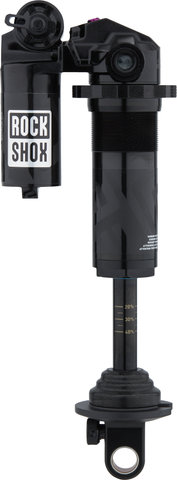

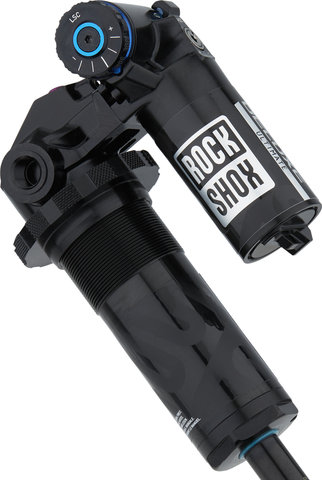

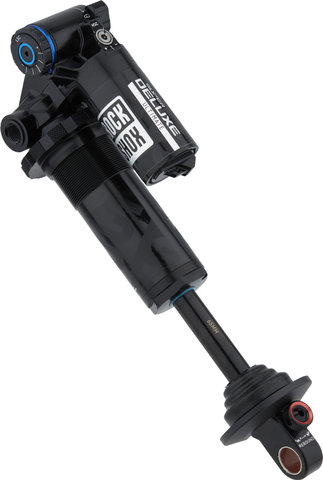

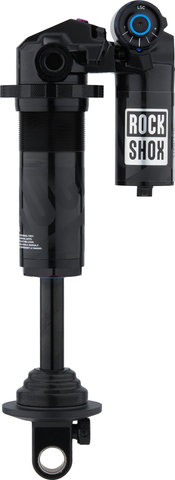

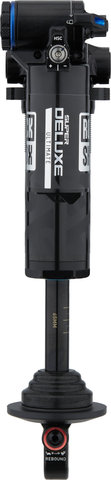

RockShox Super Deluxe Ultimate Coil RC2T Trunnion Shock

The Super Deluxe Ultimate Coil RC2T shock by RockShox with Trunnion mount offers a wide range of adjustment options

The RockShox Super Deluxe Ultimate Coil RC2T shock with Trunnion mount and steel suspension offers high- and low-speed compression adjustment without interaction and is suited for bikes in all-mountain and enduro use. In addition, there is a 2-position lever for quick switching to a pedal-efficient mode while on the move. The hydraulic bottom out engages in the last 20% of travel when a hard hit is imminent. You can set the strength yourself with an adjustment knob.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain, Enduro

Suspension Type:

coil spring

Size x Stroke:

165 x 45 mm, 185 x 47.5 mm, 185 x 50 mm, 185 x 52.5 mm, 185 x 55 mm, 205 x 57.5 mm, 205 x 60 mm, 205 x 62.5 mm, 205 x 65 mm, 225 x 75 mm

Rear Shock Mounts:

Trunnion

Technical Information:

Damping System:

RC2T

Bushing Material:

steel

Body Material:

Aluminium

Shaft Material:

Aluminium

Adjustment Options:

Compression:

Tune Low

Rebound:

Tune Linear

Remote:

no

Features:

• RC2T damper with fully independent adjustment of low and high speed compression allows for precise tuning
• 2-position compression lever (Open/Pedal)
• separate, independent pistons for Open and Pedal mode, thus precise tuning possible
• high bandwidth external rebound adjustment in 20 clicks
• adjustable, hydraulic bottom out with five compression settings for the last 20% of travel
• 21% stronger chassis than the previous model
• sensitive response to slightly-uneven ground conditions due to high bushing overlap
• excellent grip at high speed on bumpy trails
• also suitable for e-bikes
• Check Tune 0 - Light
• 320 lb lockout force

Manufacturer Numbers:

165 mm x 45 mm:

00.4118.359.018

185 x 47.5 mm:

00.4118.359.016

185 x 50 mm:

00.4118.359.015

185 x 52.5 mm:

00.4118.359.014

185 x 55 mm:

00.4118.359.013

205 x 57.5 mm:

00.4118.359.012

205 x 60 mm:

00.4118.359.011

205 x 62.5 mm:

00.4118.359.010

205 x 65 mm:

00.4118.359.009

225 x 75 mm:

00.4118.359.008

Contents:

• 1 x RockShox Super Deluxe Ultimate Coil RC2T Trunnion Shock

Order Together:

Depending on the selected size:

• RockShox steel coil for 47.5 - 55 mm stroke
• RockShox steel coil for 57.5 - 65 mm stroke
• RockShox steel coil for 67.5 - 75 mm stroke
