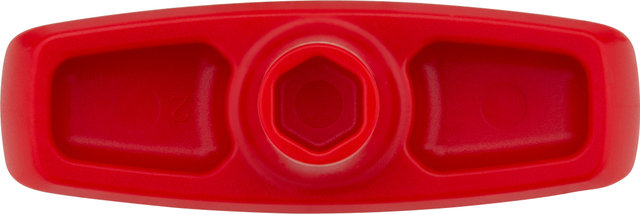

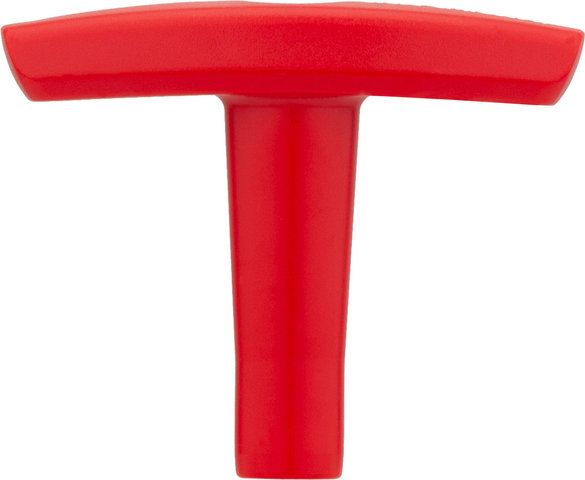

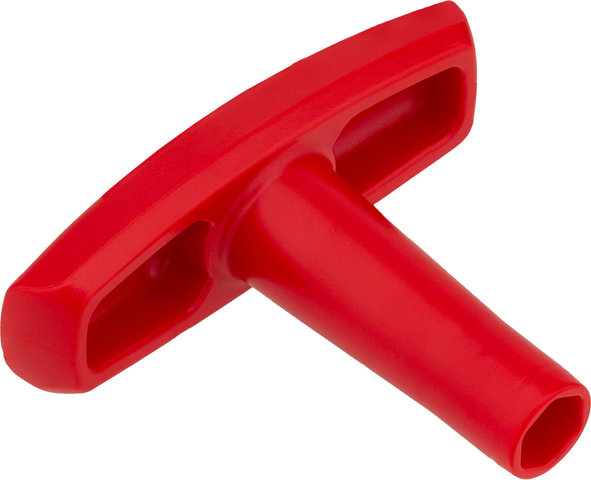

RockShox Vent Valve Tool for Reverb AXS / Reverb Stealth - 2020 Model

No disassembly required: the Vent Valve Tool by RockShox

You need the Vent Valve Tool from RockShox to operate the newly-developed bleed valve on your Reverb AXS™ and Reverb Stealth seatpost. This eliminates the need to disassemble your seatpost for bleeding.

Specifications:

Type:

bleed tool

Compatibility:

• Reverb AXS seatpost
• Reverb Stealth model 2020

Application:

• Step 1: Close the valve by fully extending the dropper post using the controller.
• Step 2: Remove the dropper post from the bike.
• Step 3: Place the saddle on a flat surface.
• Step 4: Set the Vent Valve Tool on the bleed valve and apply slight pressure. Wait until it stops and then hold it in that position for 2 seconds.
• Step 5: Press the AXS button to extend the dropper.
• Step 6: Press the AXS button again to close the valve.
• Step 7: Place the base plate on a flat surface.
• Step 8: Press the seatpost head down to apply pressure. It won't feel spongy any more!
• Step 9: Reinstall the seatpost on the bike.

Technology:

Vent Valve:
A newly-developed vent valve for easy maintenance on the bike without having to disassemble the seatpost.

Manufacturer Number:

00.6818.044.000

Contents:

• 1 x RockShox Vent Valve tool
