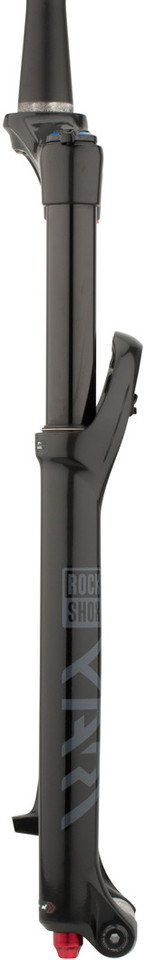

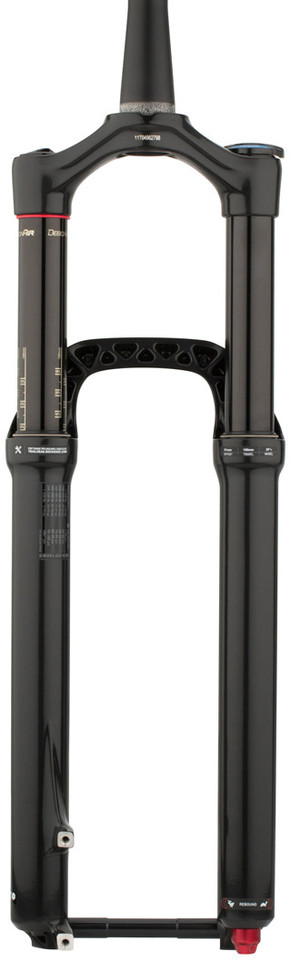

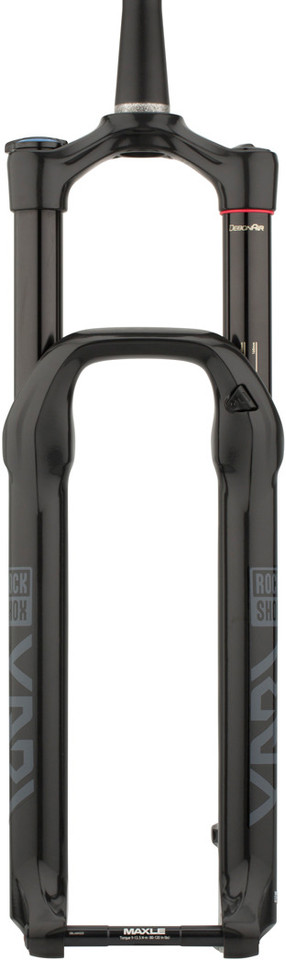

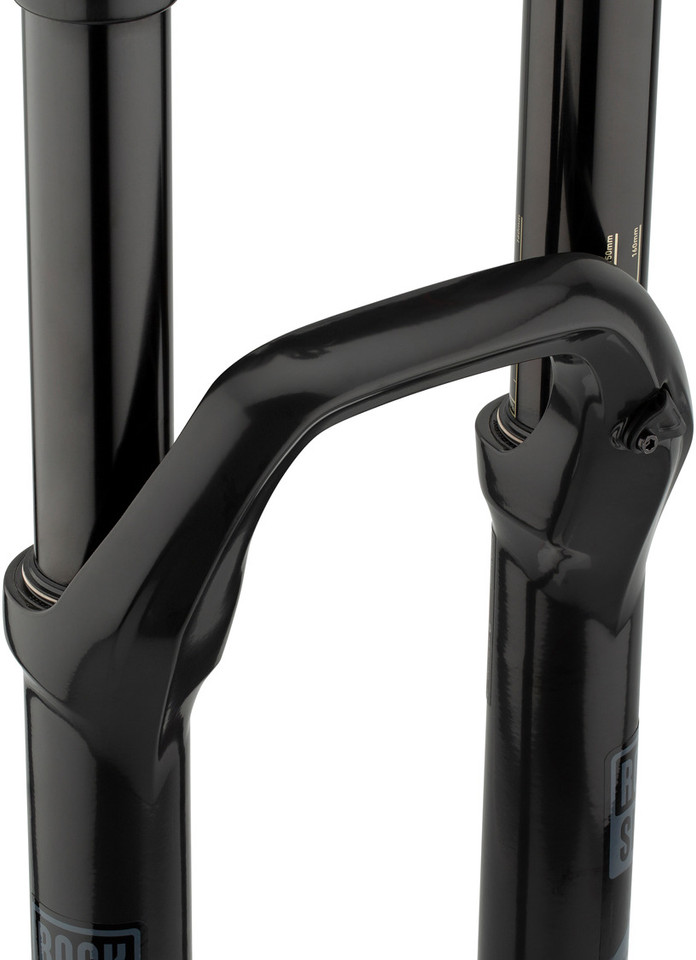

RockShox Yari RC DebonAir Boost 29+ Suspension Fork

Specifications:

Application:

Enduro, All Mountain

Wheel Size:

29"

Suspension Type:

air

Travel:

120 mm, 130 mm, 140 mm, 150 mm, 160 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Axle Type:

thru-axle (15 x 110 mm)

Brake Mount:

disc PM6 (direct mount 160 mm)

Technical Information:

Offset:

51 mm

Steerer Tube Length:

265 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Axle to Crown:

543 mm (120 mm), 553 mm (130 mm), 563 mm (140 mm), 573 mm (150 mm), 583 mm (160 mm)

Over Locknut Dimension:

110 mm

Stanchion Tube Diameter:

35 mm

Steerer Tube Material:

Aluminium

Crown Material:

aluminium (7050)

Stanchion Tube Material:

Aluminium

Lower Tube Material:

magnesium

Dropout Material:

magnesium

Adjustment Options:

Compression:

low-speed

Rebound:

yes

Suspension Stiffness:

air pressure adjust

Remote:

no

Travel Adjustment:

no

Approved For:

Tyre Size (max.):

29 x 3.2"

Note:

For individual tyres, the tyre clearance must be checked with the fork fully compressed. It should be at least 6 mm measured from the fork crown.

Rotor Size (max.):

220 mm

Features:

• improved and adjustable DebonAir air suspension, offers a smooth response and no slipping even on steep terrain
• new designs for a modern and high-quality look
• Motion Control damping with adjustable low-speed compression
• 35 mm stanchion tubes
• external rebound adjustment

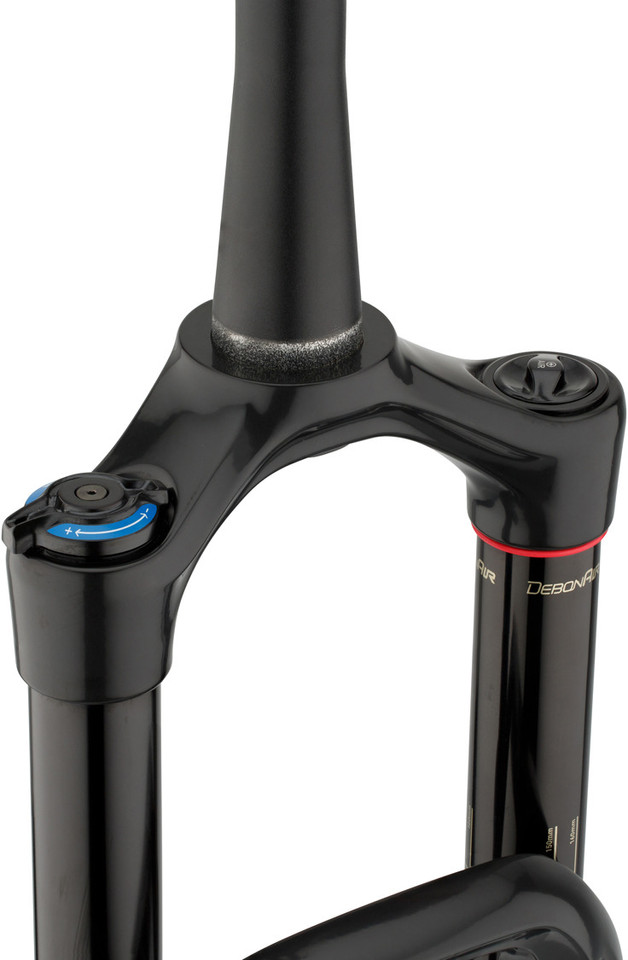

• crown adjust

Technology:

Motion Control™:
Imagine riding on the moon. Gentle hills, crushed rock blasted out of craters. Crater. Unfortunately, you can't ride on the moon. But even on earth there is much inhospitable terrain. But we have gravity, which means you need suspension that can handle climbs and descents equally well. With Motion Control™ damping technology, exactly that is possible. You can't ride the moon, but with Motion Control you can make gravity yours.

Models:

120 mm / 1.5 tapered / 15 x 110 mm / 51 mm:

Travel:

120 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

51 mm

Brake Mount:

disc PM6 (direct mount 160 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-YARI-RC-B3

Manufacturer Number:

00.4020.563.010

130 mm / 1.5 tapered / 15 x 110 mm / 51 mm:

Travel:

130 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

51 mm

Brake Mount:

disc PM6 (direct mount 160 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-YARI-RC-B3

Manufacturer Number:

00.4020.563.009

140 mm / 1.5 tapered / 15 x 110 mm / 51 mm:

Travel:

140 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

51 mm

Brake Mount:

disc PM6 (direct mount 160 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-YARI-RC-B3

Manufacturer Number:

00.4020.563.008

150 mm / 1.5 tapered / 15 x 110 mm / 51 mm:

Travel:

150 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

51 mm

Brake Mount:

disc PM6 (direct mount 160 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-YARI-RC-B3

Manufacturer Number:

00.4020.563.012

160 mm / 1.5 tapered / 15 x 110 mm / 51 mm:

Travel:

160 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

51 mm

Brake Mount:

disc PM6 (direct mount 160 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-YARI-RC-B3

Manufacturer Number:

00.4020.563.011

Contents:

• 1 x RockShox Yari RC DebonAir suspension fork

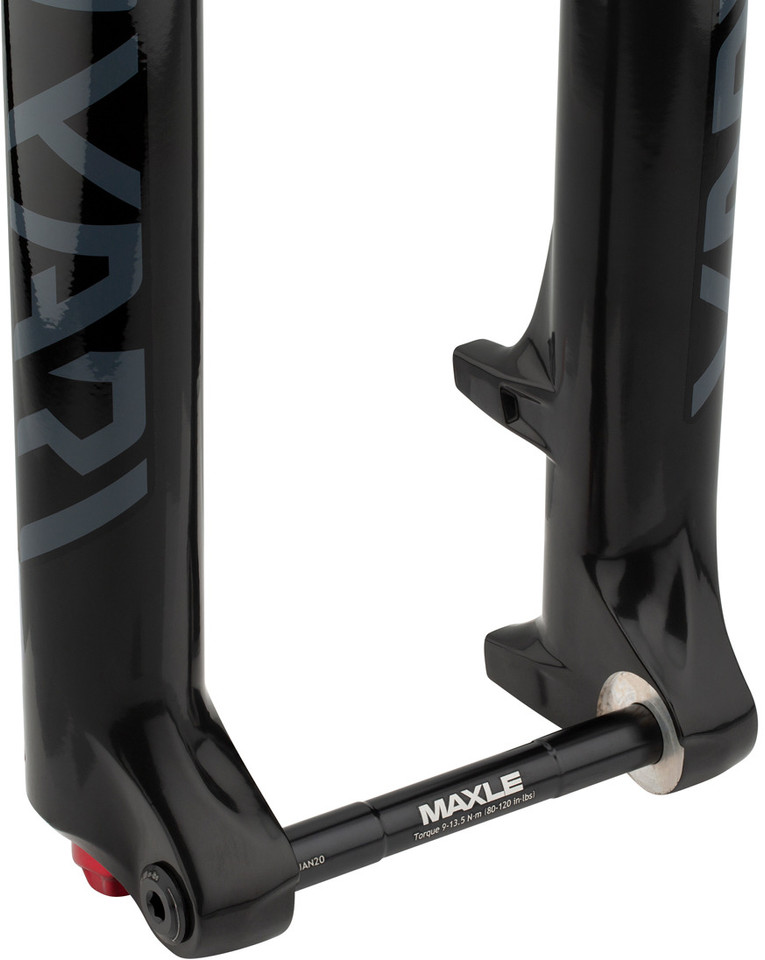

• 1 x RockShox Maxle Stealth thru-axle
• 2 x RockShox bottomless tokens
• 1 x RockShox fender
• 1 x star nut
