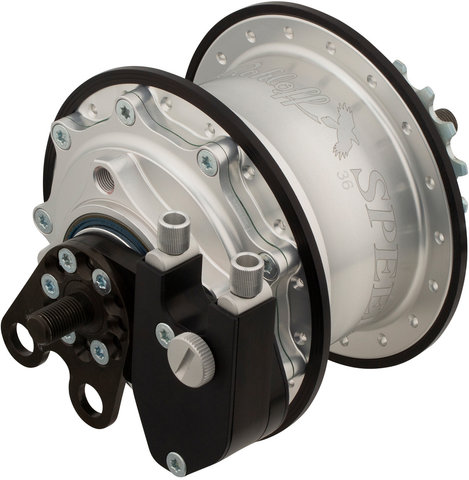

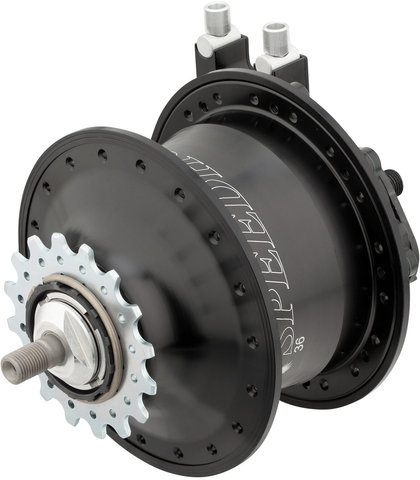

Rohloff Speedhub 500/14 TS Threaded Spindle 135 mm Internally Geared Hub

Experience the world - The Speedhub 500/14 gear hub by Rohloff

You love cycling. You love to escape from the stress and hectic goings-on of daily life. It's good that the Rohloff gears on your bike support you in this. This is because the Speedhub gearbox makes cycling very easy. Don't worry about whether the right gear is engaged, just turn the gear lever - even when stationary. With a twist, you can shift into any of the 14 gears.
In addition, the Speedhub is extremely low-maintenance. Experience gears that requires minimal maintenance. One quick oil change a year, that's all it takes. After that, it's just a matter of keeping an eye on the chain, chainring and rear sprocket. No comparison to conventional multiple derailleurs and their sensitive rear derailleurs. Rohloff wants you to ride, not wait.

The legendary Rohloff quality also includes the price-performance ratio of the gearbox. It is amazingly durable and also incurs minimal costs for its functionality. Enjoy an investment that pays off; because with every kilometre ridden, the cost balance improves compared to all other current derailleurs.
The Speedhub is so robust that it has even been certified to run more than 300,000 kilometres. One of the most important reasons why the best touring cyclists in the world swear by the Speedhub. There is hardly a spot on earth, no matter how exotic, where the Rohloff gear hub has not been seen.

Thanks to the Rohloff modular system, many different hub variants are created. For selecting the desired version, the
Online Configurator is very helpful.

Specifications:

Series:

Speedhub 500/14

Application:

City & Touring

Gears:

14

Brake Type:

rim or disc

Axle Type:

10 mm threaded spindle (TS = Touring threaded spindle)

Over Locknut Dimension:

135 mm

Spoke Hole Count:

32 hole, 36 hole

Technical Information:

Range:

526%

Material:

aluminium, steel

Axle Length:

171 mm

Spoke Size:

2.7 mm

Pitch Circle Diameter:

100 mm

Flange Width:

3.2 mm

Flange Distance:

58 mm (29 mm/29 mm)

Offset:

0 mm

Features:

• extremely low maintenance and robust
• perfect workmanship (99% Made in Germany)
• smooth shifting (13.6%) with rotary shift lever, even when stationary
• 95 - 99% efficiency, 14 effective gears, no overlaps
• compatible with 1/2" x 3/32" bicycle derailleur chains
• 57 mm chainline
• compatible with Gates Carbon Drive belt drive
• 25 ml maximum oil filling
• maximum input torque 130 Nm
• including 16-tooth plug-in sprocket (13-19 t and 21 t optionally available, screw-in sprocket only as remaining stock)
• smallest permissible transmission factor for solo riders up to 100 kg = 1.9 (40/21, 36/19, 34/18, 32/17, 30/16, 28/15, 28/14, 26/13)
• lowest permissible gear ratio for riders over 100 kg = 2.5 (53/21, 48/19, 45/18, 42/17, 40/16, 38/15, 36/14, 34/13)

Models:

Type 1: TS
Compatible Brake Type: rim
Compatible Frames: angled dropouts, vertical dropouts (w/ chain tensioner), horizontal dropouts (must be approved)
Axle Plate: standard TS
Torque Support: long torque arm on chainstay w/ clamp
Gear Mech: internal
Small Parts Bag Contents: 2 x M10x1 hex nuts, 2 x washers for TS axle, 8 x ferrules, 1 x 6.5x10x5.5 spacer for cable stop, 1 x 13° cable stop w/ cable adjuster, 1 x clamp for torque arm, 5 x spacers for chainrings, 2 x bayonet connectors, 2 x M8x0.75 bolts, 2 x M8x0.75 nuts, 2 x washers, 1 x oil tube
Manufacturer Numbers:

• black-anodised, 32-hole: 8042
• silver anodised, 32-hole: 8040
• red-anodised, 32-hole: 8041
• black-anodised, 36-hole: 68042
• silver anodised, 36-hole: 68040
• red-anodised, 36-hole: 68041

Type 2: TS EX
Compatible Brake Type: rim
Compatible Frames: semi-horizontal dropouts, vertical dropouts (w/ chain tensioner), horizontal dropouts (must be approved)
Axle Plate: standard TS
Torque Support: long torque arm on chainstay w/ clamp
Gear Mech: external
Special Features: for very short (e.g. 20" ) or non-typical rear triangles and frequent riders (10,000 km/year) or Touring cyclists
Small Parts Bag Contents: 2 x M10x1 hex nuts, 2 x washers for TS axles, 8 x ferrules, 1 x clamp for torque arm, 5 x spacers for chainrings, 2 x M8x0.75 bolts, 2 x M8x0.75 nuts, 2 x washers, 1 x oil tube, 1 x EX cable box
Manufacturer Numbers:

• black-anodised, 32-hole: 8052
• silver anodised, 32-hole: 8050
• red-anodised, 32-hole: 8051
• black-anodised, 36-hole: 68052
• silver anodised, 36-hole: 68050
• red-anodised, 36-hole: 68051

Type 3: TS DB
Compatible Brake Type: disc IS
Compatible Frames: w/ rear disc brakes
Axle Plate: standard TS
Torque Support: long torque arm on chainstay w/ clamp
Gear Mech: external
Special Features: housing cover has mount for Rohloff brake rotors, e.g. for downhill frames with disc brake mount, when threaded spindle is preferred
Small Parts Bag Contents: 2 x M10x1 hex nuts, 2 x washers for TS axles, 8 x ferrules, 1 x clamp for torque arm, 5 x spacers for chainrings, 6 x M8x0.75 bolts, 2 x M8x0.75 nuts, 2 x washers, 1 x oil tube, 1 x EX cable box
Manufacturer Numbers:

• black-anodised, 32-hole: 8062
• silver anodised, 32-hole: 8060
• red-anodised, 32-hole: 8061
• black-anodised, 36-hole: 68062
• silver anodised, 36-hole: 68060
• red-anodised, 36-hole: 68061

Type 4: TS OEM
Compatible Brake Type: rim
Compatible Frames: Rohloff extended and reinforced vertical dropouts
Axle Plate: TS OEM
Torque Support: in dropouts
Gear Mech: internal
Small Parts Bag Contents: 2 x M10x1 hex nuts, 2 x washers for TS axle, 8 x ferrules, 1 x 6.5x10x5.5 spacer for cable stop, 1 x 13° cable stop w/ cable adjuster, 5 x spacers for chainrings, 2 x bayonet connectors, 1 x oil tube
Manufacturer Numbers:

• black-anodised, 32-hole: 8047
• silver anodised, 32-hole: 8045
• red-anodised, 32-hole: 8046
• black-anodised, 36-hole: 68047
• silver anodised, 36-hole: 68045
• red-anodised, 36-hole: 68046

Type 5: TS EX OEM
Compatible Brake Type: rim
Compatible Frames: Rohloff extended and reinforced vertical dropouts
Axle Plate: TS OEM
Torque Support: in dropouts
Gear Mech: external
Small Parts Bag Contents: 2 x M10x1 hex nuts, 2 x washers for TS axles, 8 x ferrules, 5 x spacers for chainrings, 1 x oil tube, 1 x EX cable box
Manufacturer Numbers:

• black-anodised, 32-hole: 8057
• silver anodised, 32-hole: 8055
• red-anodised, 32-hole: 8056
• black-anodised, 36-hole: 68057
• silver anodised, 36-hole: 68055
• red-anodised, 36-hole: 68056

Type 6: TS DB OEM
Compatible Brake Type: disc IS
Compatible Frames: Rohloff extended and reinforced vertical dropouts
Axle Plate: TS OEM
Torque Support: in dropouts
Gear Mech: external
Special Features: housing cover has mount for Rohloff brake rotors
Small Parts Bag Contents: 2 x M10x1 hex nuts, 2 x washers for TS axles, 8 x ferrules, 5 x spacers for chainrings, 4 x M8x0.75 bolts, 1 x oil tube, 1 x EX cable box
Manufacturer Numbers:

• black-anodised, 32-hole: 8067
• silver anodised, 32-hole: 8065
• red-anodised, 32-hole: 8066
• black-anodised, 36-hole: 68067
• silver anodised, 36-hole: 68065
• red-anodised, 36-hole: 68066

Type 7: TS DB OEM2
Compatible Brake Type: disc IS or post mount
Compatible Frames: with IS2000 disc brake mount on seatstay
Axle Plate: TS OEM2
Torque Support: Speedbone (IS) or Monkey Bone (PM)
Gear Mech: external
Special Features: housing cover has mount for Rohloff brake rotors
Small Parts Bag Contents: 2 x M10x1 hex nuts, 2 x washers for TS axles, 8 x ferrules, 5 x spacers for chainrings, 4 x M8x0.75 bolts, 1 x oil tube, 1 x EX cable box, 1 x OEM2 M6x16 bolt, M6 nut, 6.4 washer
Manufacturer Numbers:

• black-anodised, 32-hole: 8067Z
• silver anodised, 32-hole: 8065Z
• red-anodised, 32-hole: 8066Z
• black-anodised, 36-hole: 68067Z
• silver anodised, 36-hole: 68065Z
• red-anodised, 36-hole: 68066Z

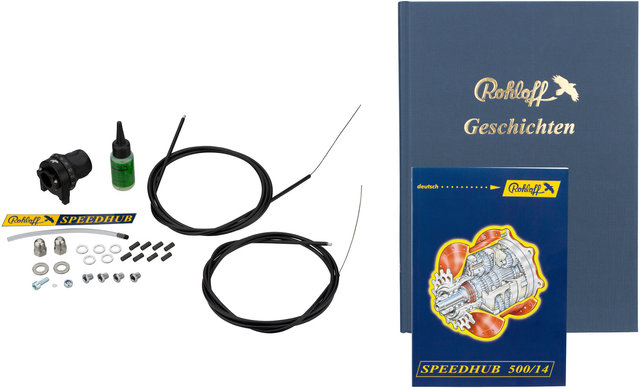

Contents:

• 1 x Rohloff Speedhub 500/14 internally geared hub
• 1 x Rohloff Speedhub 500/14 splined sprocket, 16 tooth, incl. Splined Carrier

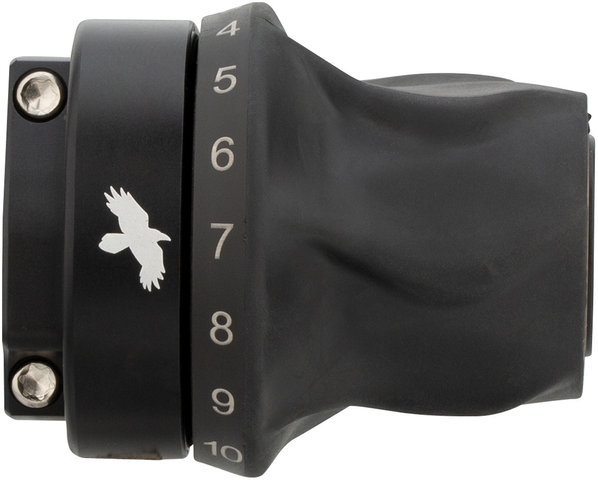

• 1 x Rohloff Speedhub complete twist shifter
• 1 x Rohloff Speedhub Oil bottle
• 1 x small parts bag
• 2 x Rohloff shifter cables, incl. cable housings
• 1 x axle plate
• 1 x torque arm (only with Type 1, 2 & 3)
• 2 x flange support rings
• not incl. brake rotor
