Rohloff Sprocket Remover Tool for 135 / 142 / 170 / 177 mm Hubs

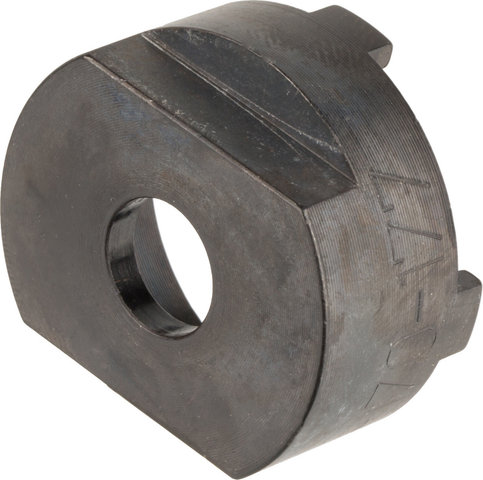

Changing the sprocket and sprocket carrier: the Rohloff Sprocket Remover Tool

The screw sprocket of the Rohloff Speedhub 500/14 is screwed onto the driver via a six-speed thread. To disassemble the screw sprocket with a chain whip, the driver must be held with the sprocket remover tool. In addition, the sprocket remover serves as a guide to screw the mounted splined carrier/plug-in sprocket unit onto the thread of the driver as far as it will go.
This sprocket remover replaces the previous Rohloff 8501 sprocket remover, which could only be used with 135/170 mm hubs. The new sprocket remover also works with 142/177 mm hubs (A12). An adapter and a screw are also included.

Specifications:

Function:

removal of Rohloff Speedhub threaded sprockets, installation of the Splined Carrier and Splined Carrier S*

Compatibility:

135 mm, 170 mm, 142 mm, 177 mm Speedhub**

Drive Size:

24 mm open-end wrench

* Note: The plug-in sprockets can be removed without a sprocket remover. It is only necessary to remove the circlip pliers with the help of a small screwdriver.
** For 190 mm and 197 mm you need the XXL sprocket remover tool.

Manufacturer Number:

8508

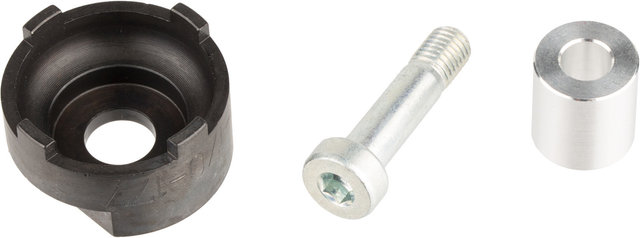

Contents:

• 1 x Rohloff sprocket remover tool
• 1 x Rohloff A12 adapter
• 1 x bolts
