Rotor Shimano GRX Chainring, 4-arm, noQ, 110/80 mm Bolt Circle Diameter

Rotor Shimano GRX chainring, 4-arm, noQ, 110/80 mm bolt circle diameter for gravel riding

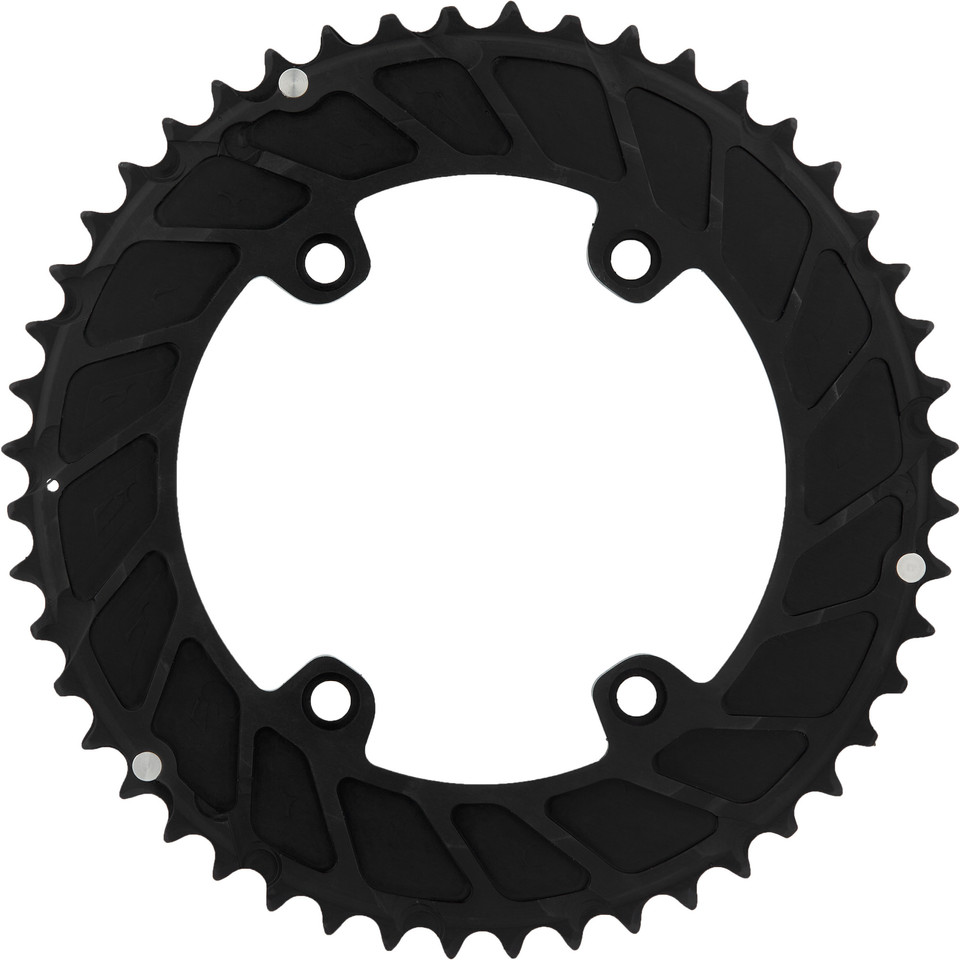

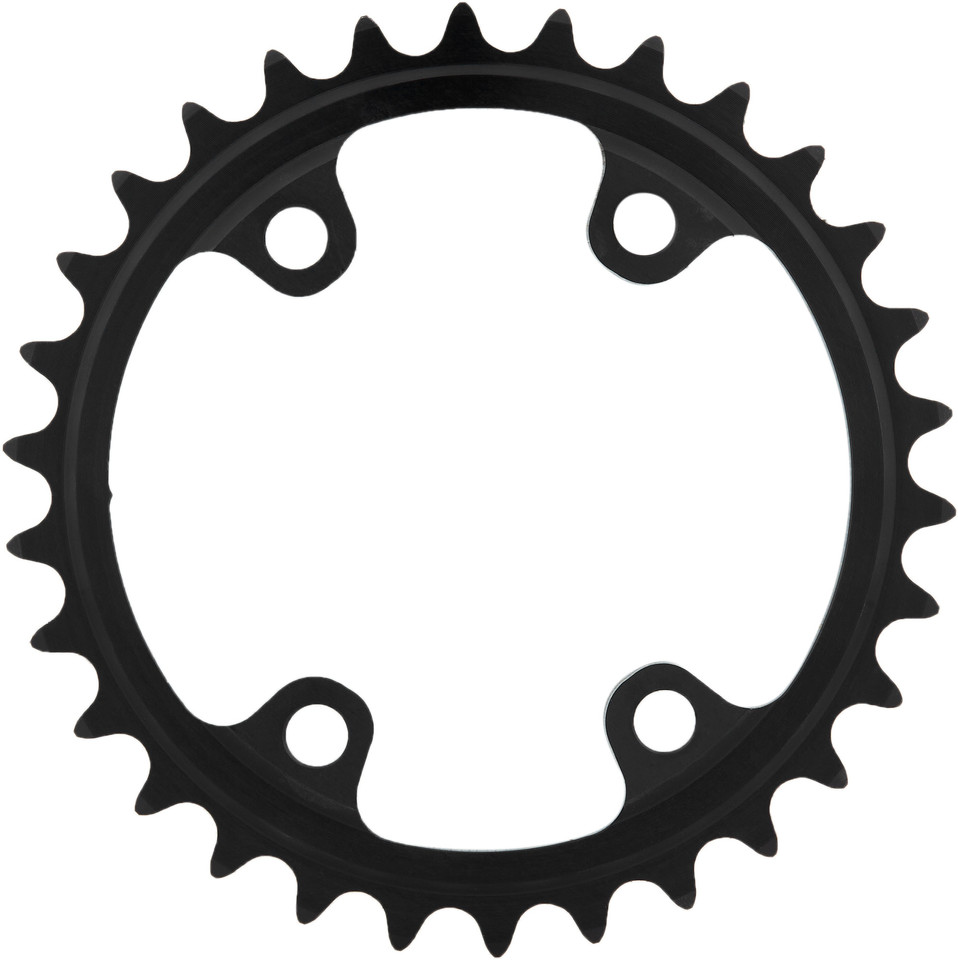

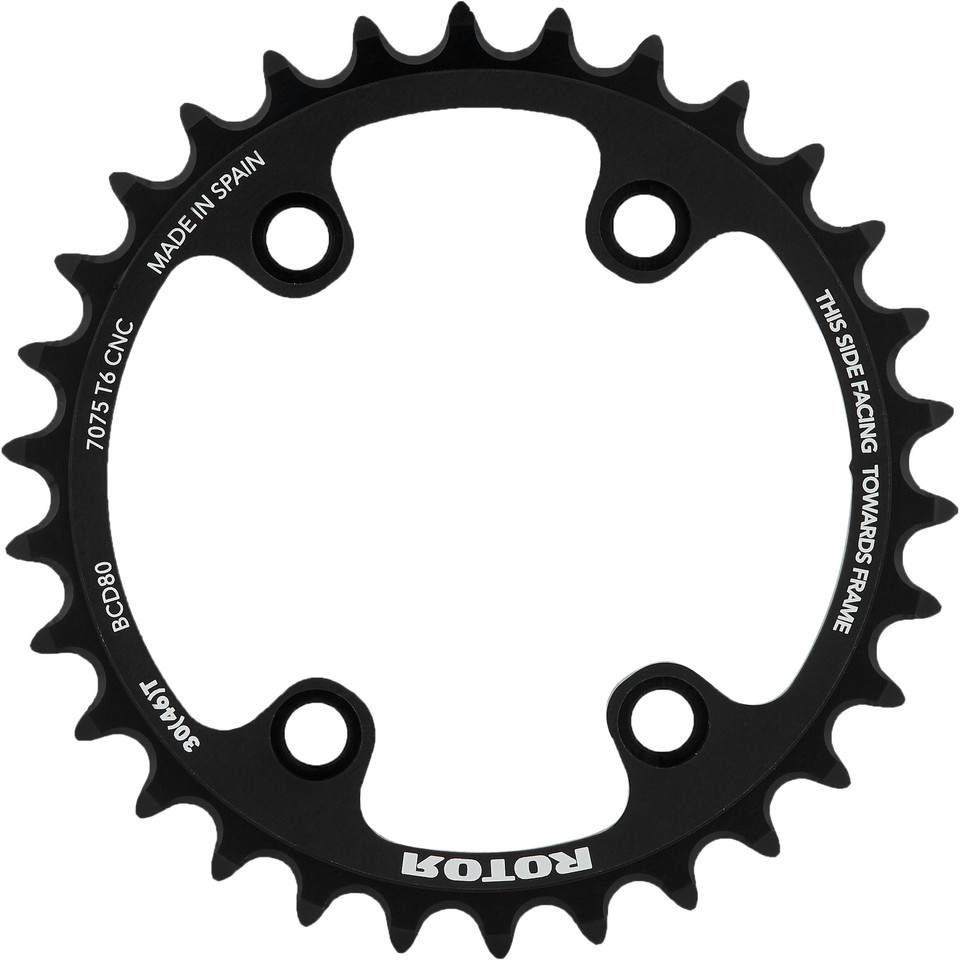

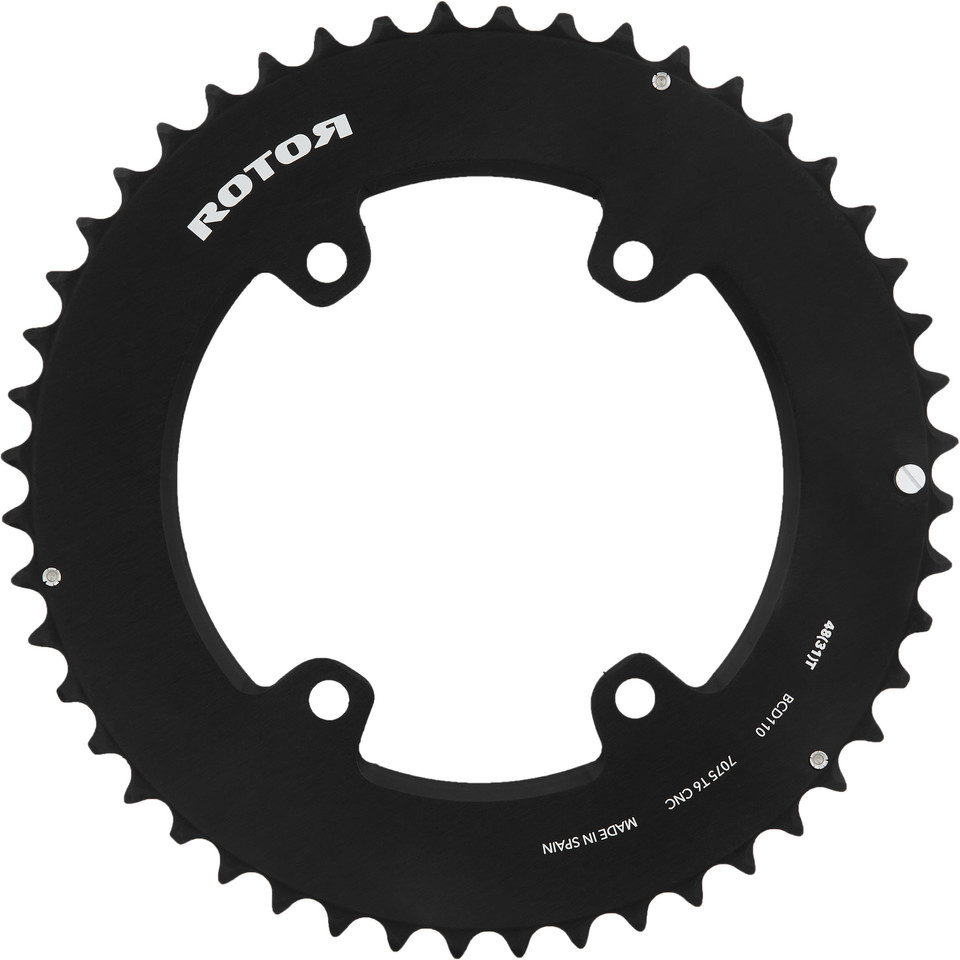

Rotor has developed this round chainring for use on Shimano 11-speed Gravel cranks of the GRX series. That is why it has four arms and a bolt circle diameter of 110 mm in the large version and 80 mm in the small version. It is made of aluminium and has been CNC-milled. The Gravel Spider from Rotor also allows the chainring to be used with a Rotor Direct Mount crank.

Specifications:

Application:

Gravel

Mount:

110/80 mm bolt circle diameter, 4-arm asymmetrical

Teeth:

30 T, 31 T, 46 T, 48 T

Gearing:

2x11-speed

Technical Information:

Combinations:

30-46 T, 31-48 T

Material:

aluminium (7075-T6)

Compatibility:

Cranks:

Shimano GRX 2x11-speed, Rotor Gravel Spider

Shifters & Derailleurs:

Shimano 2x11-speed and 2x10-speed

Chains:

Shimano and KMC 11-speed chains

Features:

• Gravel/GRX typical bolt circle diameter 110/80 mm
• large chainring: off-centre bolt holes
• 100% CNC milled

Models:

30 tooth:

Bolt Circle Diameter:

80 mm

Manufacturer Number:

C01-531-31010-0

31 tooth:

Bolt Circle Diameter:

80 mm

Manufacturer Number:

C01-531-30010-0

46 tooth:

Bolt Circle Diameter:

110 mm

Manufacturer Number:

C01-531-15010-0

48 tooth:

Bolt Circle Diameter:

110 mm

Manufacturer Number:

C01-531-13010-0

Contents:

• 1 x Shimano GRX noQ chainring rotor
