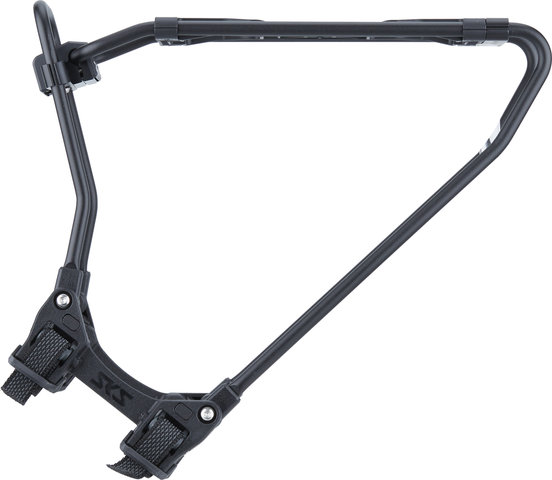

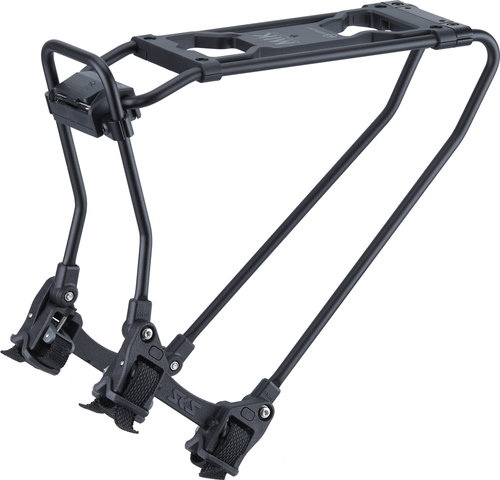

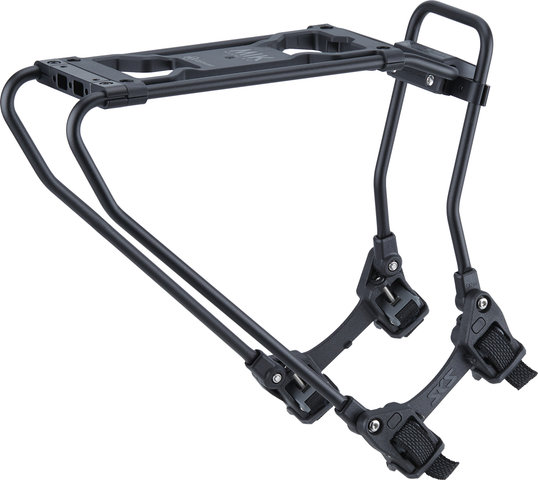

SKS Infinity Universal Pannier Rack System

SKS Infinity Universal pannier rack system - Adapts to any bike geometry

The Infinity universal pannier rack system from SKS can be flexibly adapted to any bike geometry. It is adjustable in tilt and height and has straps with a tensioning mechanism for easy mounting on the seat stays. The MIK adapter plate allows you to take along compatible bicycle bags. The Infinity Universal rack is made of sturdy aluminium and can carry a load of up to 12 kg.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

City

Upper Mount:

rear triangle braze-ons

Lower Mount:

rear triangle braze-ons

Wheel Size:

27.5" (650B), 28" , 29"

Payload (max.):

12 kg

Compatibility:

MIK bags

Technical Information:

Material:

aluminium

Approved For:

Tyre Size (max.):

29 x 2.8"

Features:

• pannier rack for retrofitting, suitable for most bikes (except carbon frames)

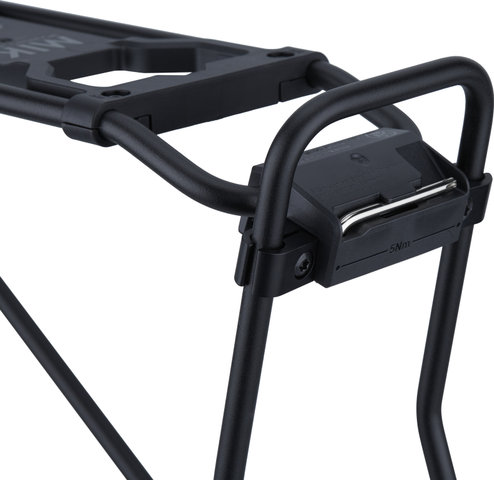

• adjustment mechanism with tilt and height adjustment for adaptation to different geometries

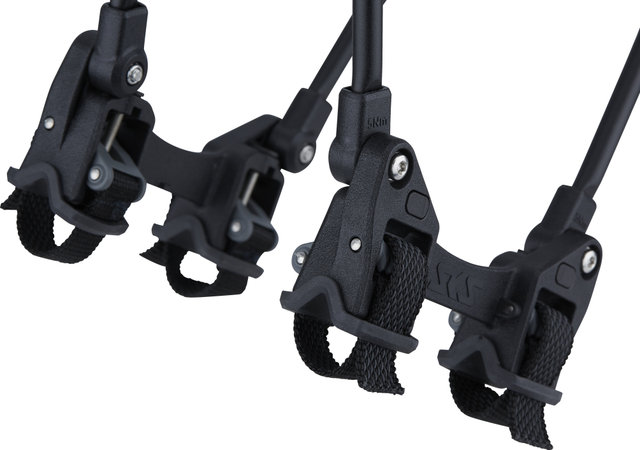

• bolt-on tensioning system with heavy-duty nylon straps for uncomplicated mounting on the seat stays

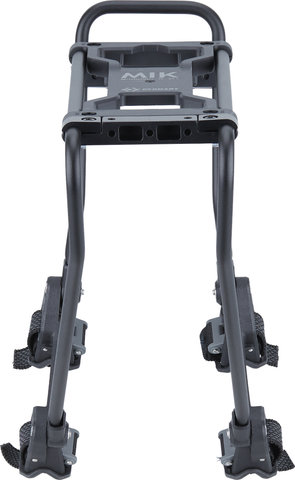

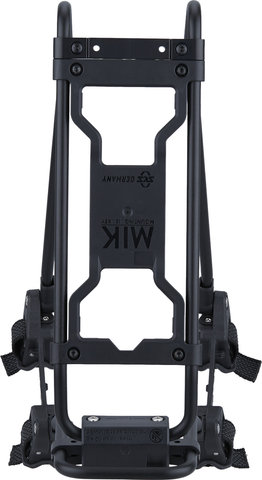

• Mounting-is-Key adapter plate (MIK): Click system for quick attachment of bicycle bags with MIK adapters
• safe and reliable transport of up to 12 kg of luggage
• made of sturdy aluminium
• mudguard for mounting under the pannier rack optionally available
• made in Germany

Note from the manufacturer:

The Infinity Universal pannier rack is not suitable for carbon frames and not suitable for transporting child seats.

Manufacturer Number:

11885

Contents:

• 1 x SKS Infinity Universal pannier rack
• 1 x Torx key
• 2 x protective foil

Order Together:

Optional accessories:

• Mudguard
